Article No. 97599
DRAINFIX CLEAN FSU 500, class F 900
Ductile iron grating 3x SW 140/18 mm, KTL-coated, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

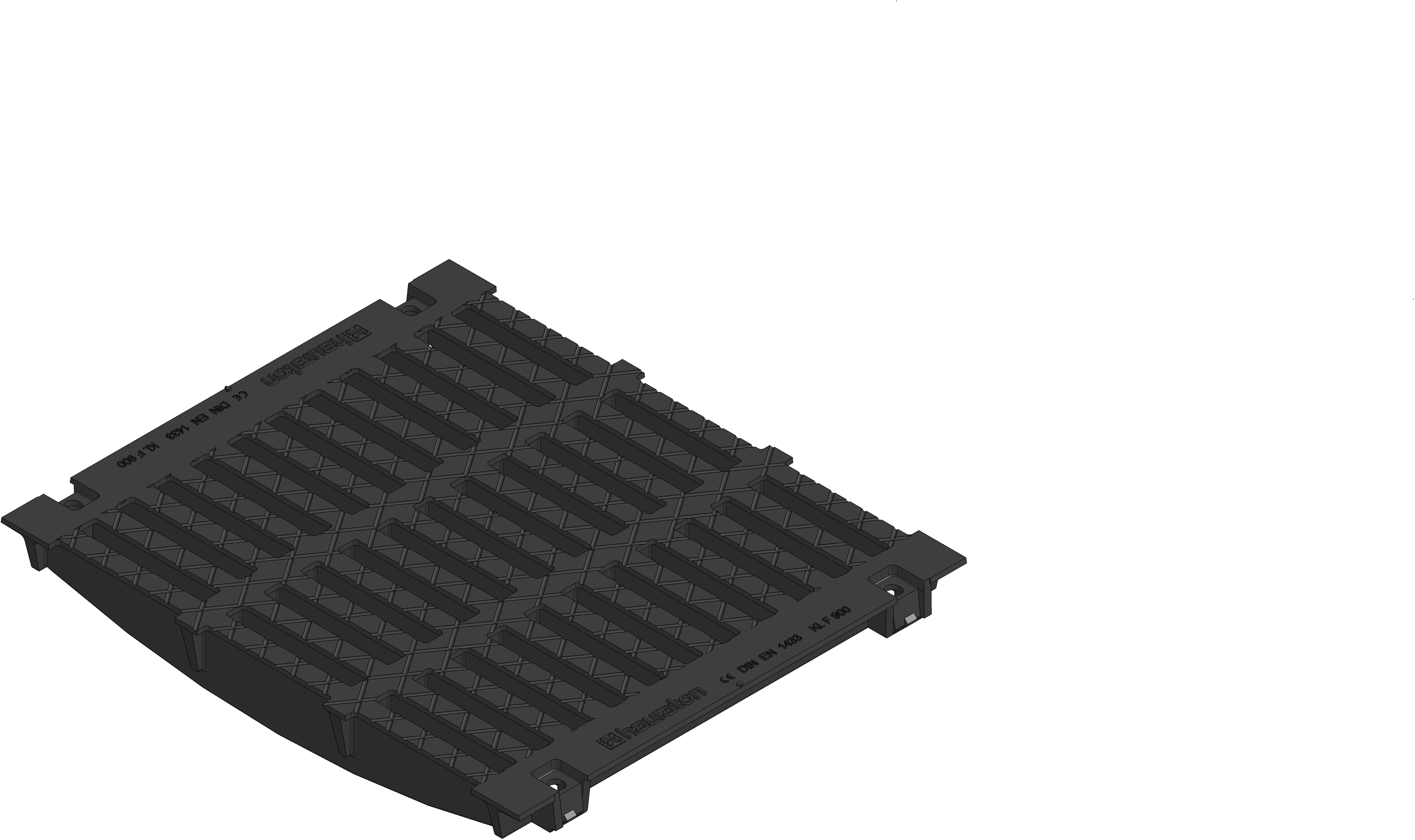

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
97599
Length
500 mm
Width
579 mm
Height
75 mm
Einlegetiefe
40 mm
Weight
41.67 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
2059.0 cm²/m
Nominal size
500
Inlet opening
20
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating 3x SW 140/18 mm, KTL-coated, cl. F 900, DRAINFIX CLEAN FSU 500, 0.5 m
Product description
DRAINFIX CLEAN FSU 500 - Ductile iron grating 3x SW 140/18 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 97599
