Article No. 11494
DRAINFIX BLOC HD, crates, suitable for heavy loads
Stormwater crate, closed, with flexible connection possibility DN/OD 110/160, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

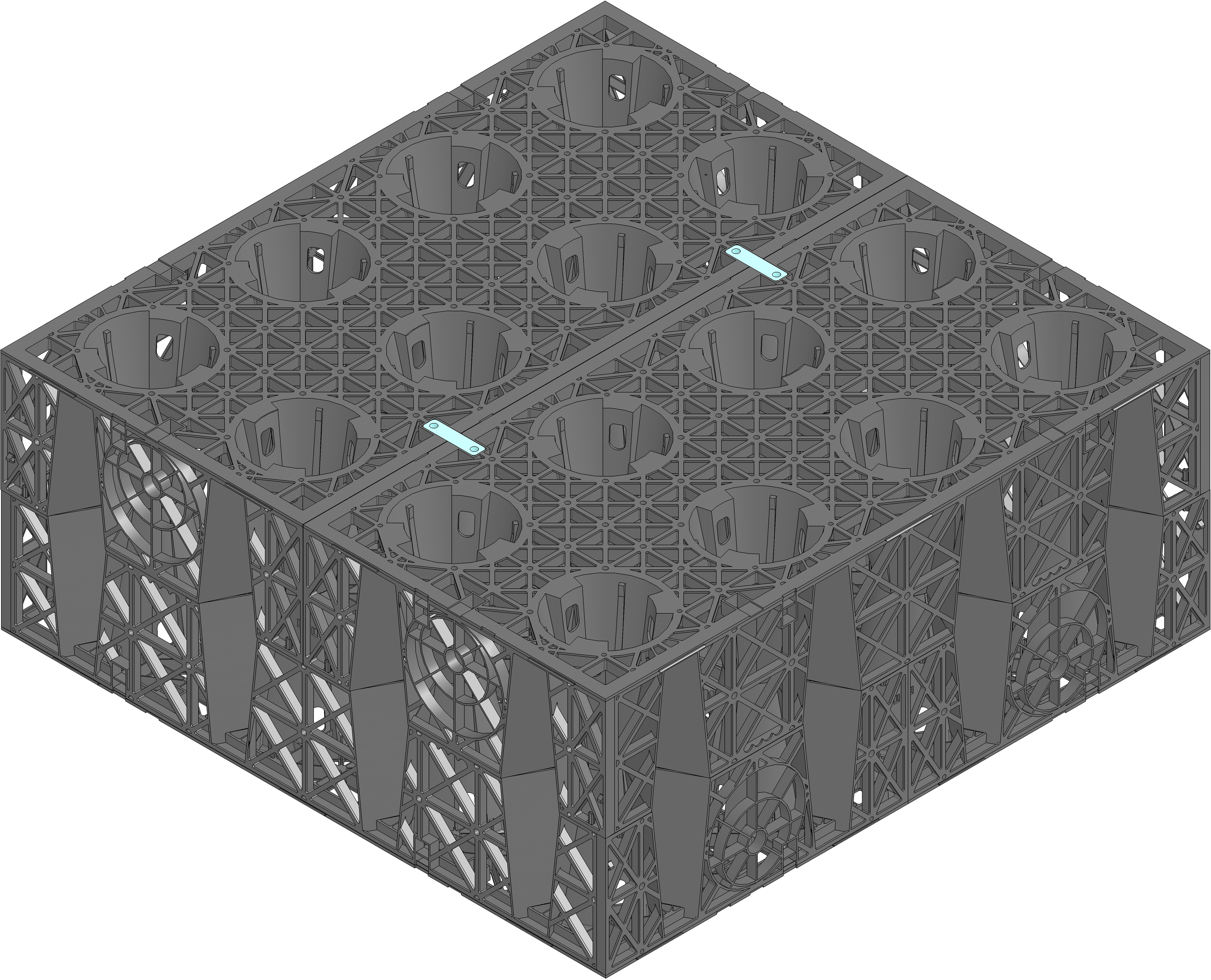

Product image

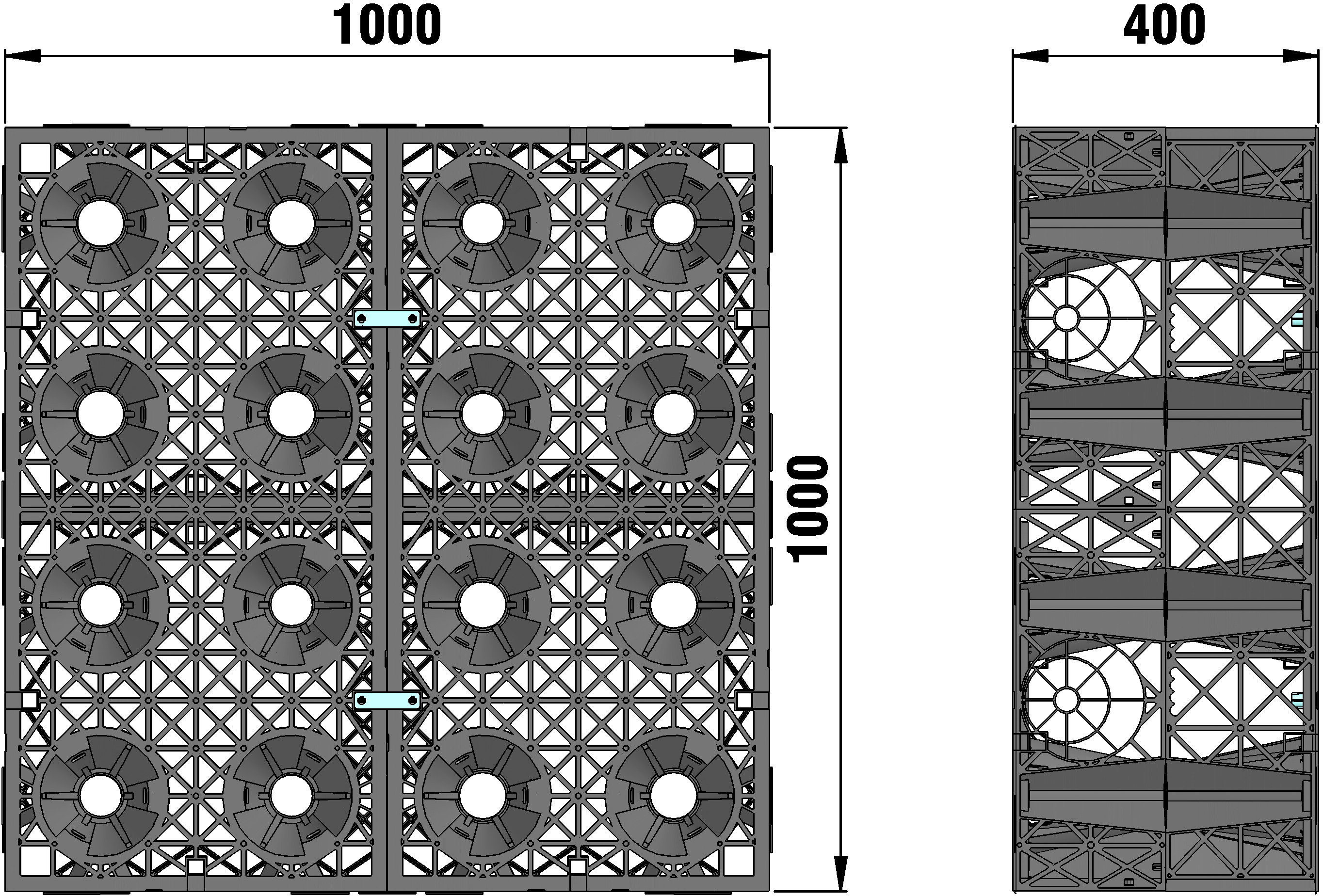

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11494
Length
1000 mm
Width
1000 mm
Height
400 mm
Weight
19.40 kg
Material
recycled polypropylene black
Sales text
DRAINFIX BLOC HD - Stormwater crate, black, with side crates, storage volume 383 L, suitable for heavy loads
Product description
DRAINFIX BLOC HD - Stormwater crate, made of recycled polypropylene, black, for attenuation, retention and infiltration of rainwater , as a unit consisting of 4 connected individual elements and connectors (turquoise), with side grids, flexible connection possibility DN/OD 110/160 on all side grids, 95,8 % storage capacity, storage volume 383 L, suitable for heavy loads, LxWxH 1000x1000x400 mm, item no. 11494
Packaging unit
-
Volumen
400.0 l
