Article No. 65480

DACHFIX STEEL 255, height 150 mm

Type 150, galvanised, 0.5 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

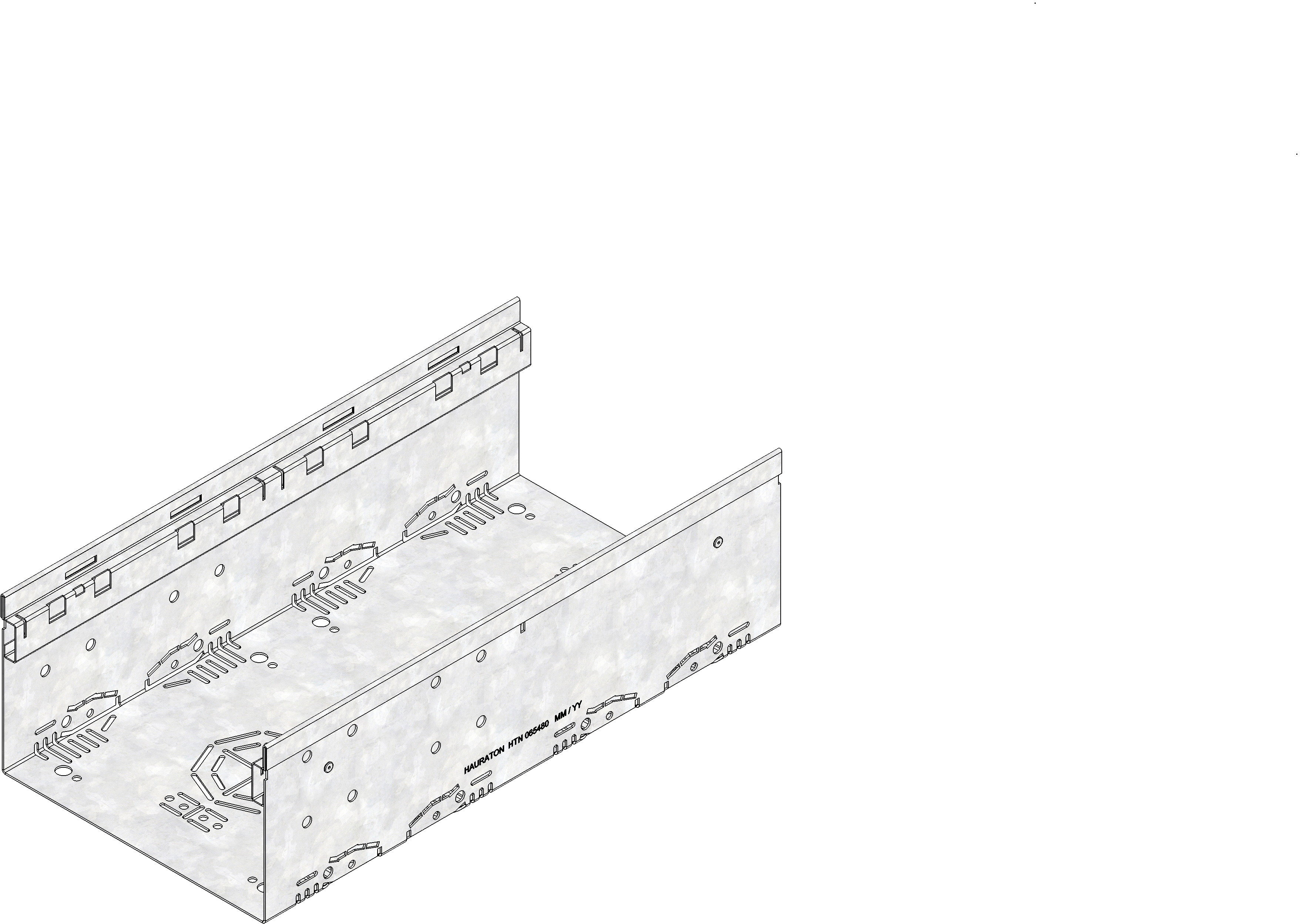

Product image

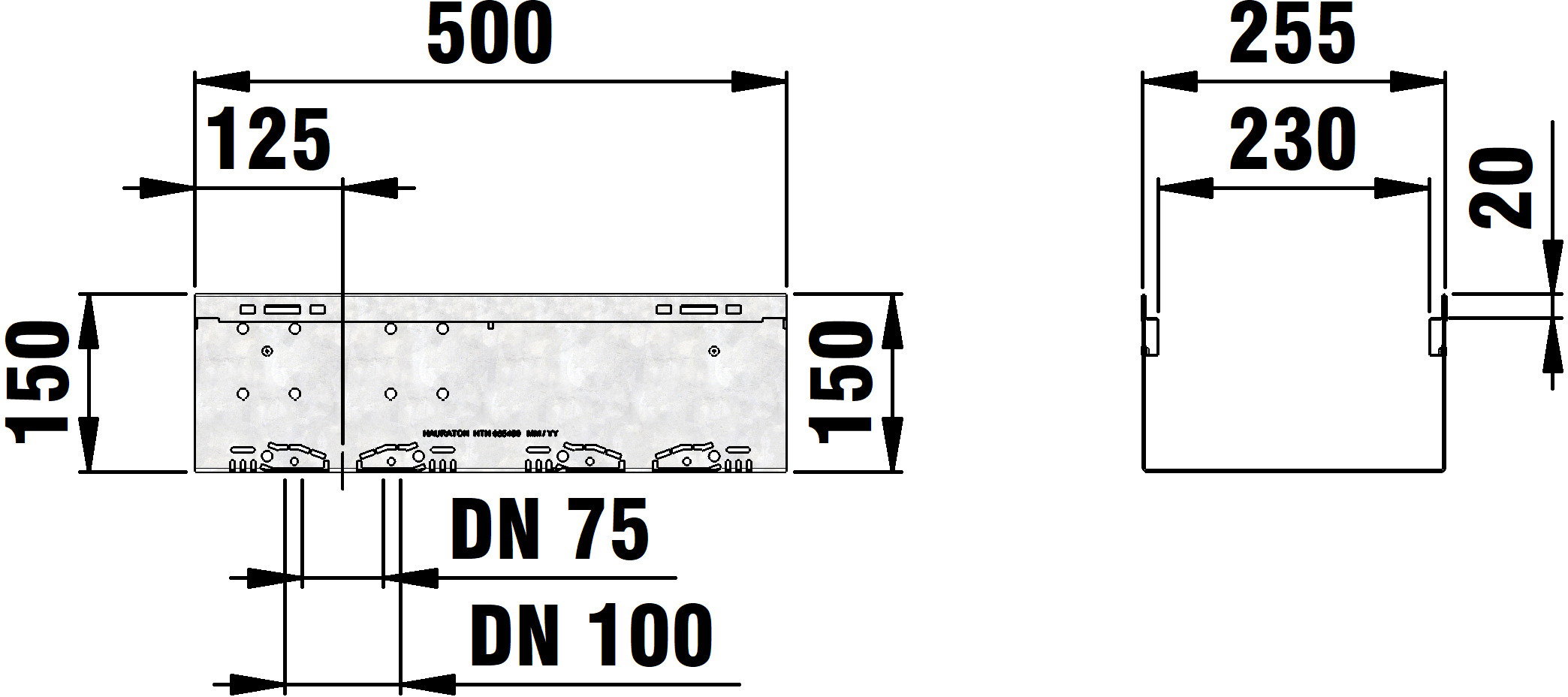

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65480
Length
500 mm
Width
255 mm
Height
150 mm
Weight
3.79 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
255
Internal channel cross-section
324 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 255 Channel body type 150, galvanised, installation height 150 mm, 0.5 m
Product description
DACHFIX STEEL 255 type 150 - Channel body made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 4-fold connection possibility for cross-intersection, with integrated, optional 2-fold fixing anchor, LxWxH 500x255x150 mm, item no. 65480
Packaging unit
112
