Article No. 65343

DACHFIX STEEL 205, height 75 mm

Type 75, height adjustable, stainless steel, 0.5 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

Product image

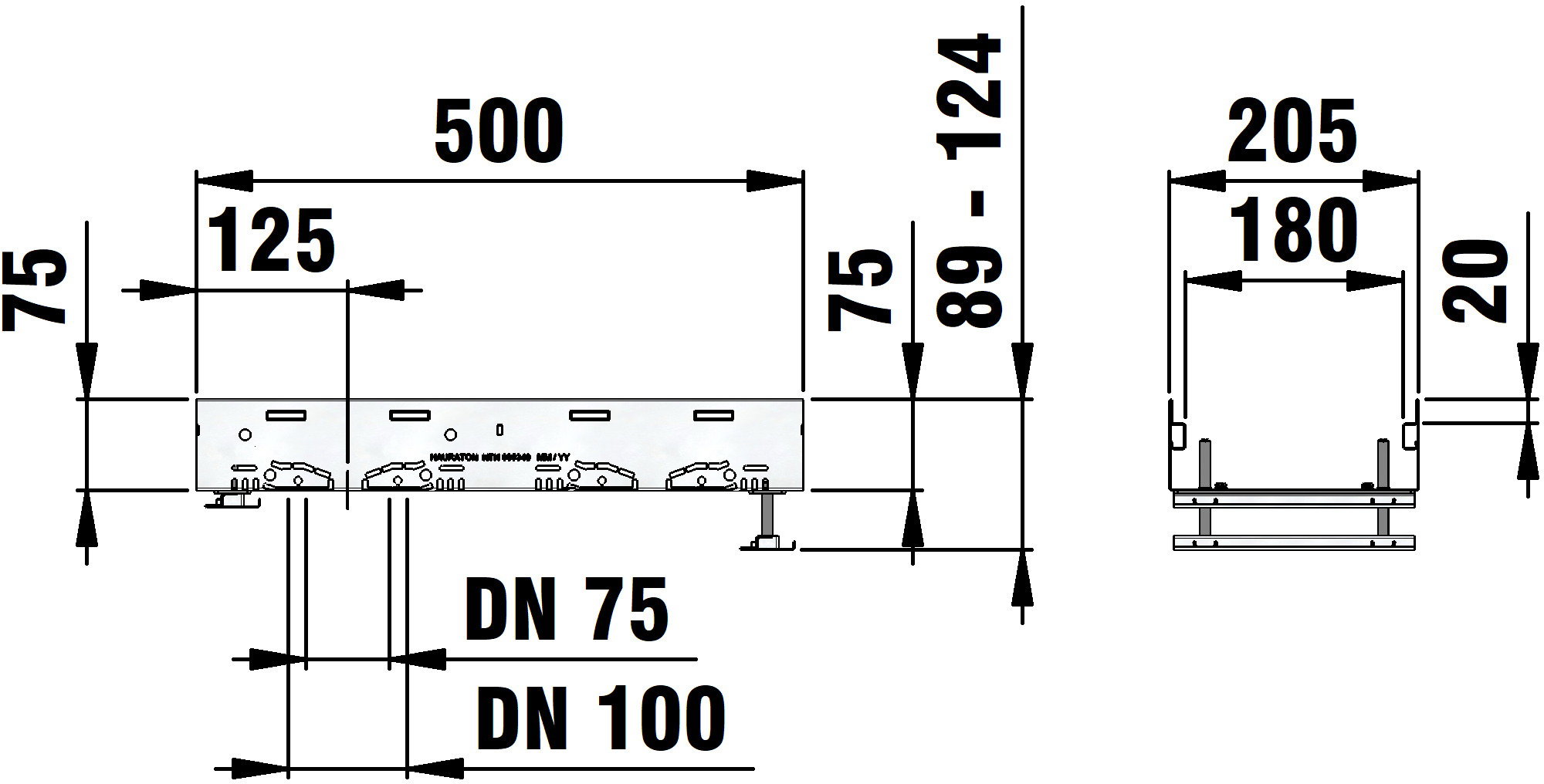

Technical drawing

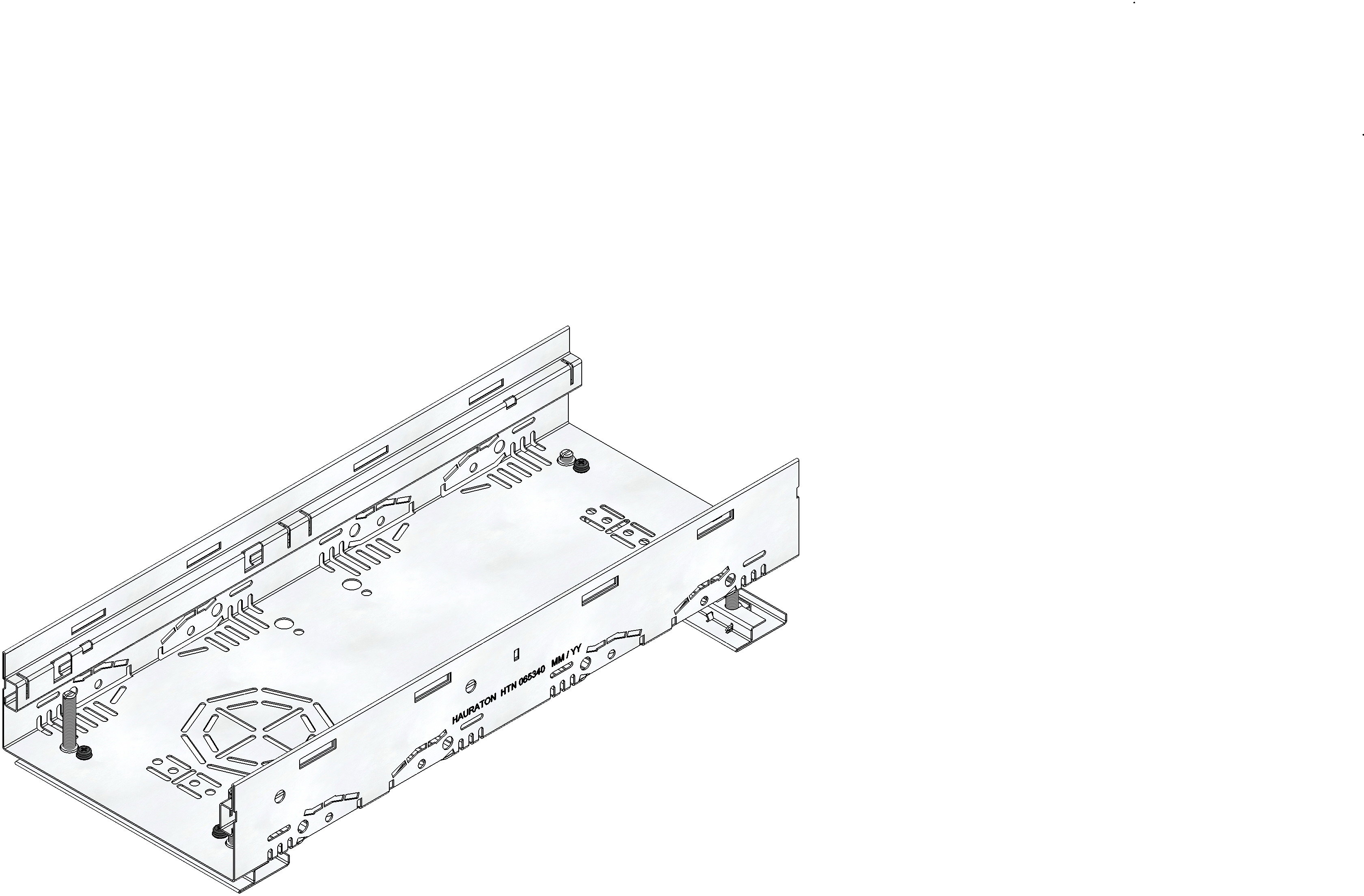

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65343
Length
500 mm
Width
205 mm
Height
89 - 124 mm
Weight
2.21 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
205
Internal channel cross-section
110 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
DACHFIX STEEL 205 Channel body type 75, height adjustable, stainless steel, height adjustment range 89-124 mm, 0.5 m
Product description
DACHFIX STEEL 205 type 75 - Channel body with adjustable base plate, made of stainless steel CNS 1.4301, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 4-fold connection possibility for cross-intersection channel, with integrated, optional 2-fold fixing anchor, incl. 2 adjustment sets/half-metre, height adjustability 89-124 mm, LxWxH 500x205x89-124 mm, item no. 65343
Packaging unit
360
