Article No. 33396
DACHFIX STEEL 135
Longitudinal grating Filigree, bar distance 8 mm, stainless steel, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

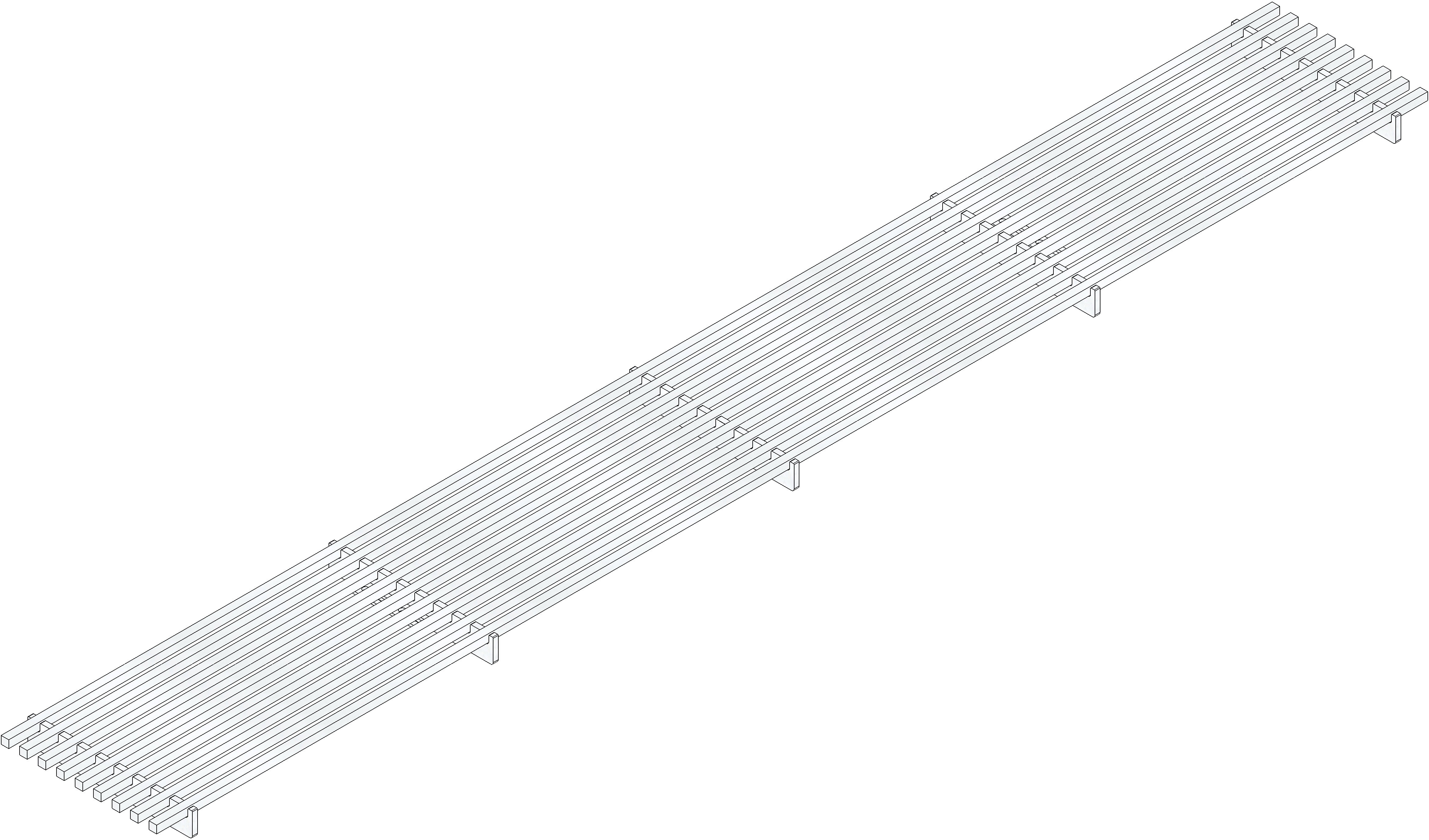

Technical drawing
Drawing (CAD)
Drawing

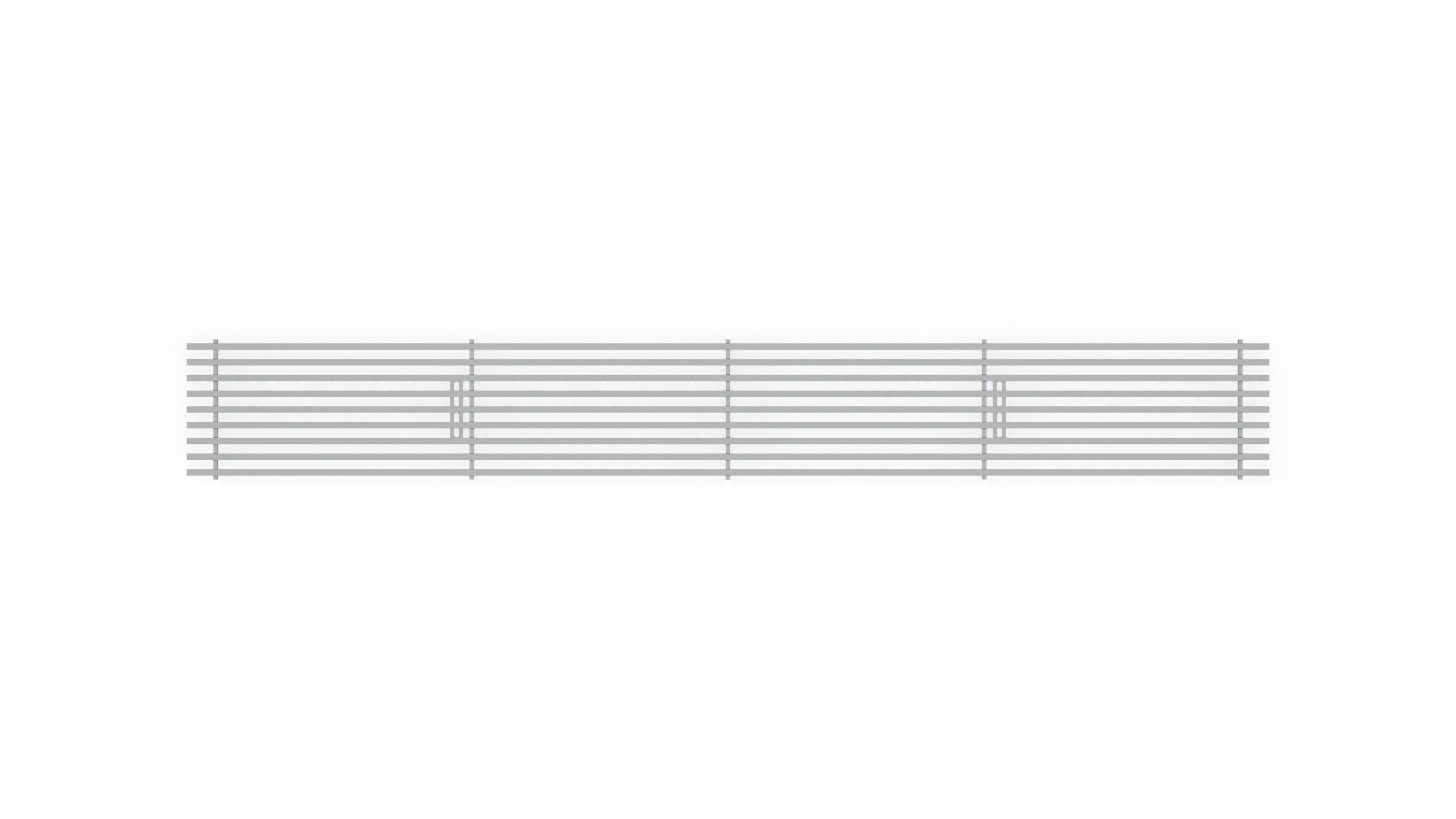

Top view
Data Sheet
Technical information and metrics
Article No.
33396
Length
1000 mm
Width
129 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.84 kg
Material
Stainless steel 1.4301
Intake cross-section
724.0 cm²/m
Nominal size
135
Inlet opening
0
Fixing type
Locking handle
Material grating
Stainless steel 1.4301
Sales text
Longitudinal grating Filigree, bar distance 8 mm, stainless steel, pedestrian and wheelchair-accessible, DACHFIX STEEL/STEELFIX REGULAR 135, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 135 -Longitudinal grating Filigree, bar distance 8 mm, stainless steel CNS 1.4301, load class A 15, installation length 1000 mm, item no. 33396
Packaging unit
-
