Article No. 65163

DACHFIX STEEL 135, height 100 mm

Type 100, height adjustable, stainless steel, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

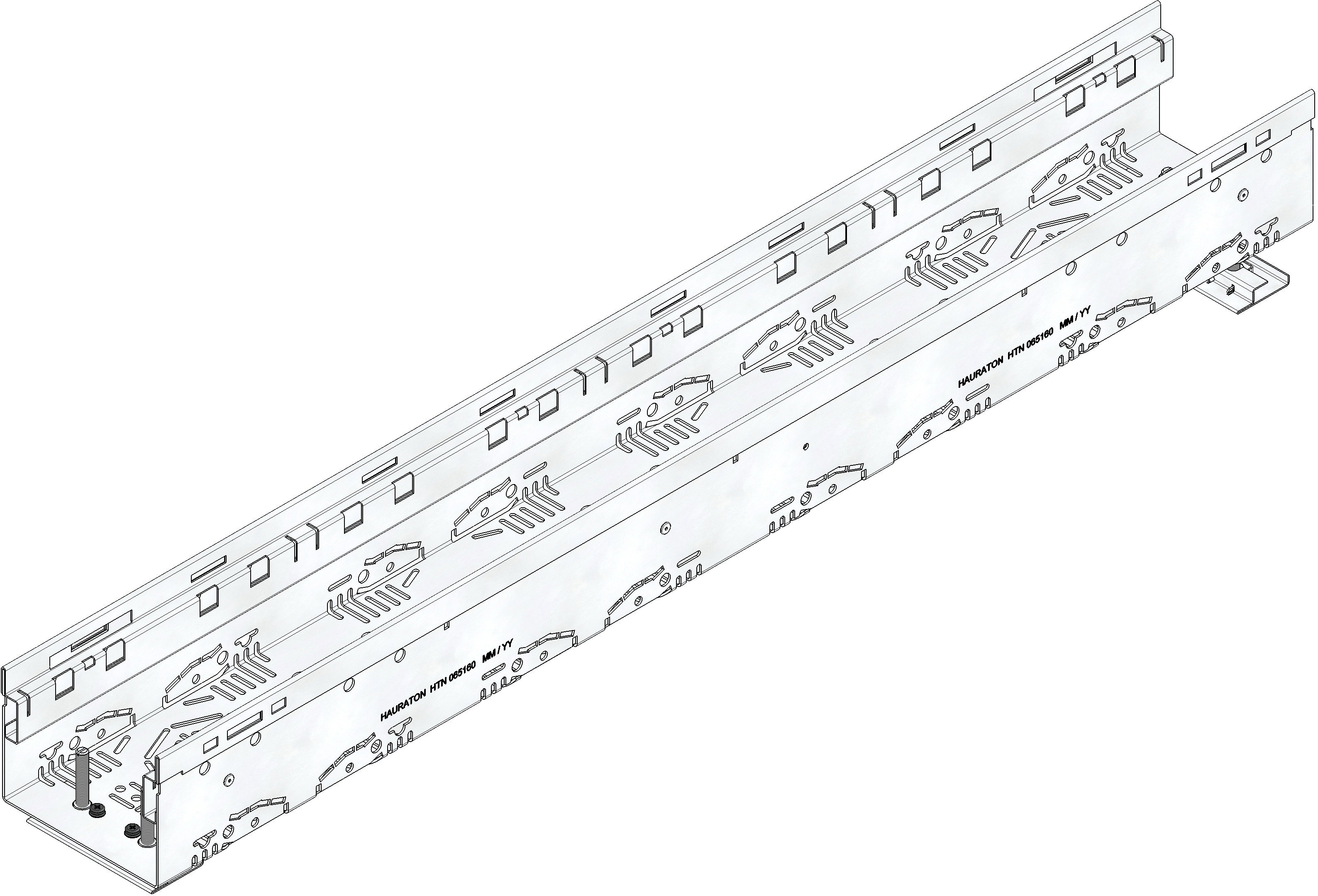

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65163
Length
1000 mm
Width
135 mm
Height
114 - 149 mm
Weight
5.38 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
103 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
DACHFIX STEEL 135 Channel body type 100, height adjustable, stainless steel, height adjustment range 114-149 mm, 1 m
Product description
DACHFIX STEEL 135 type 100 - Channel body with adjustable base plate, made of stainless steel CNS 1.4301, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection, with integrated, optional 4-fold fixing anchor, incl. 2 adjustment sets/metre, height adjustability 114-149 mm, LxWxH 1000x135x114-149 mm , item no. 65163
Packaging unit
-
