Article No. 11126
Corner and T-elements
Type 100 t-unit, black, with design slotted grating made of stainless steel
Questions?
Our experienced planning team will be happy to help you.
Get in touch

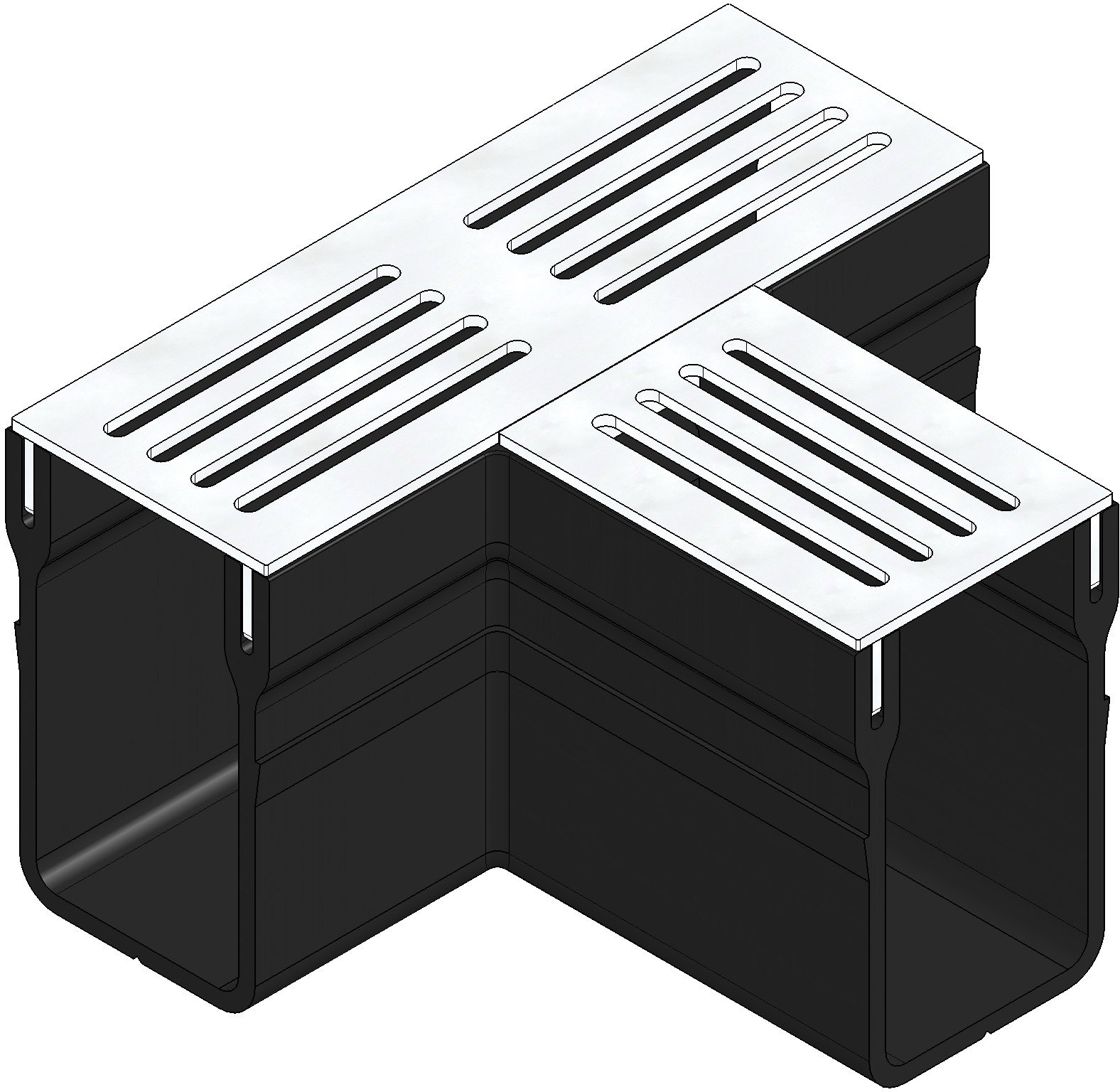

Product image

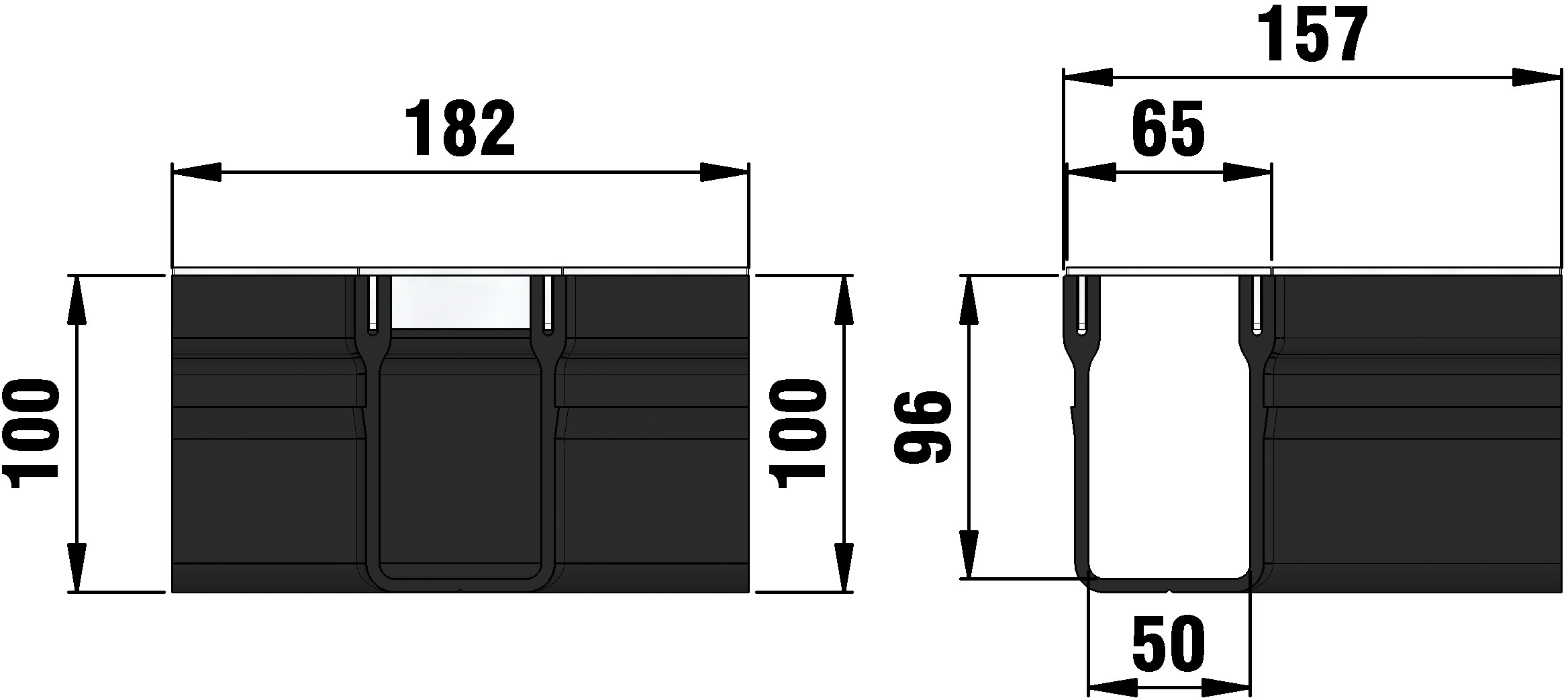

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
11126
Length
182 mm
Width
65 mm
Height
100 mm
Weight
0.65 kg
Intake cross-section
0.0 cm²/m
Nominal size
50
Type according to DIN EN 1433
not specified
Sales text
HAURATON E-TEC 65 type 100 T-unit made of PVC, black, with design slotted grating made of stainless steel, cl. A 15 (based on EN 1433), installation height 100 mm
Product description
HAURATON E-TEC 65 type 100 - T-unit made of PVC, black, with design slotted grating made of stainless steel, load class A 15 (based on EN 1433), LxWxH 182/157x65x100 mm, item no. 11126
Packaging unit
5
Tender Texts
Installation example
Installation example
