Article No. 10871
Corner and T-elements
Type 100 T-unit, black, with design slotted grating made of aluminium, grey
Questions?
Our experienced planning team will be happy to help you.
Get in touch

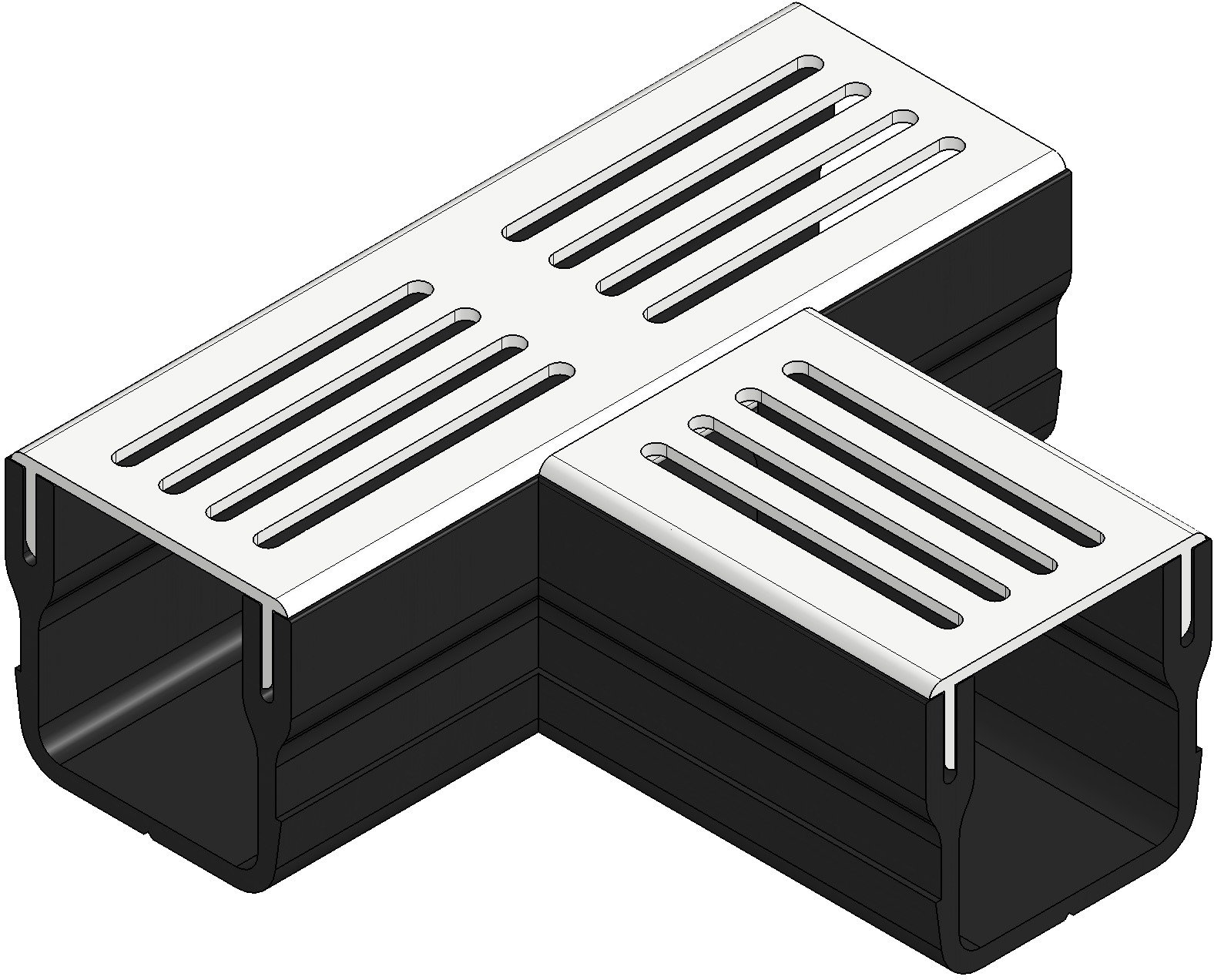

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10871
Length
182 mm
Width
65 mm
Height
60 mm
Weight
0.45 kg
Intake cross-section
0.0 cm²/m
Nominal size
50
Type according to DIN EN 1433
not specified
Sales text
HAURATON E-TEC 65 type 60 T-unit made of PVC, black, with design slotted grating made of aluminium, grey, cl. A 15 (based on EN 1433 ), installation height 60 mm
Product description
HAURATON E-TEC 65 type 60 - T-unit made of PVC, black, with design slotted grating made of aluminium, grey, load class A 15 (based on EN 1433), LxWxH 182/157x65x60 mm, item no. 10871
Packaging unit
5
Tender Texts

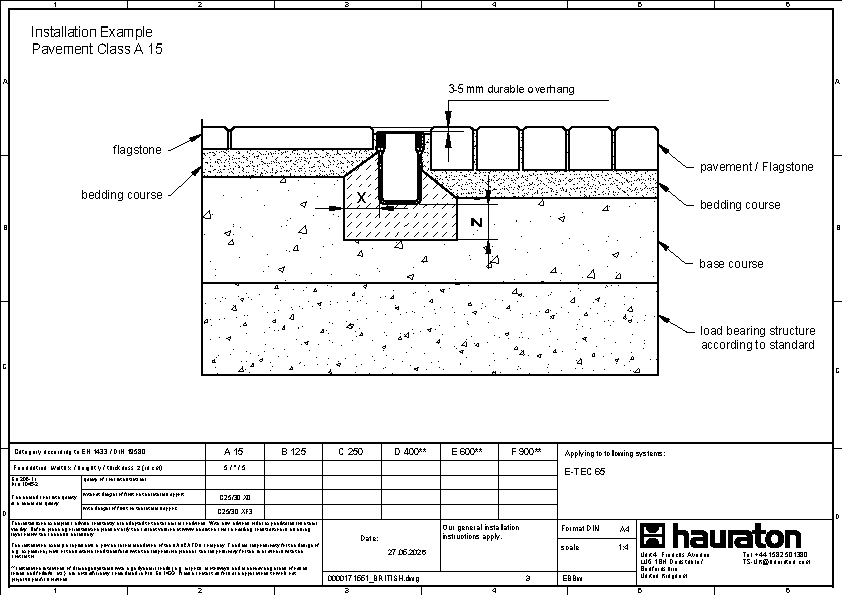

Installation example
Installation example
