Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
10201
Length
300 mm
Width
215 mm
Height
305 mm
Weight
7.00 kg
Material
reinforced Polypropylene
Height of angle housing
-
Intake cross-section
51.0 cm²/m
Nominal size
110
Internal channel cross-section
212 cm²
Fall
-
Type according to DIN EN 1433
M
Sales text

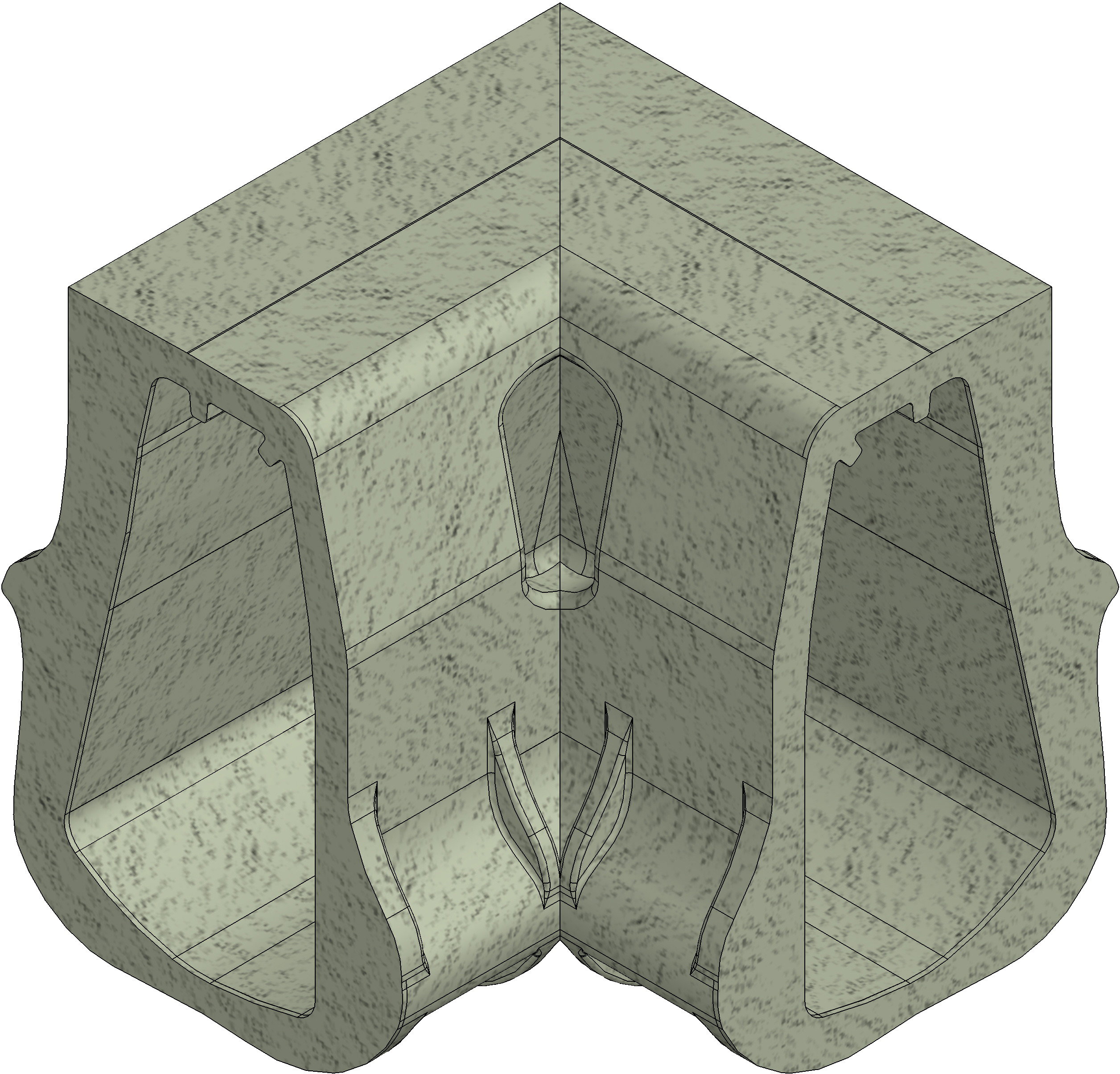

KERBFIX Internal Half Battered 90° Corner, 0.3 x 0.3 m
Product description
KERBFIX 305 - Internal Half Battered 90 degree corner, with integrated drainage, made of recycled PP, grey, according to EN 1433, load class A 15 - D 400, LxWxH 300x300x215x305 mm, item no. 10201
Packaging unit
-
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400,
Concrete class A 15 - D 400,
