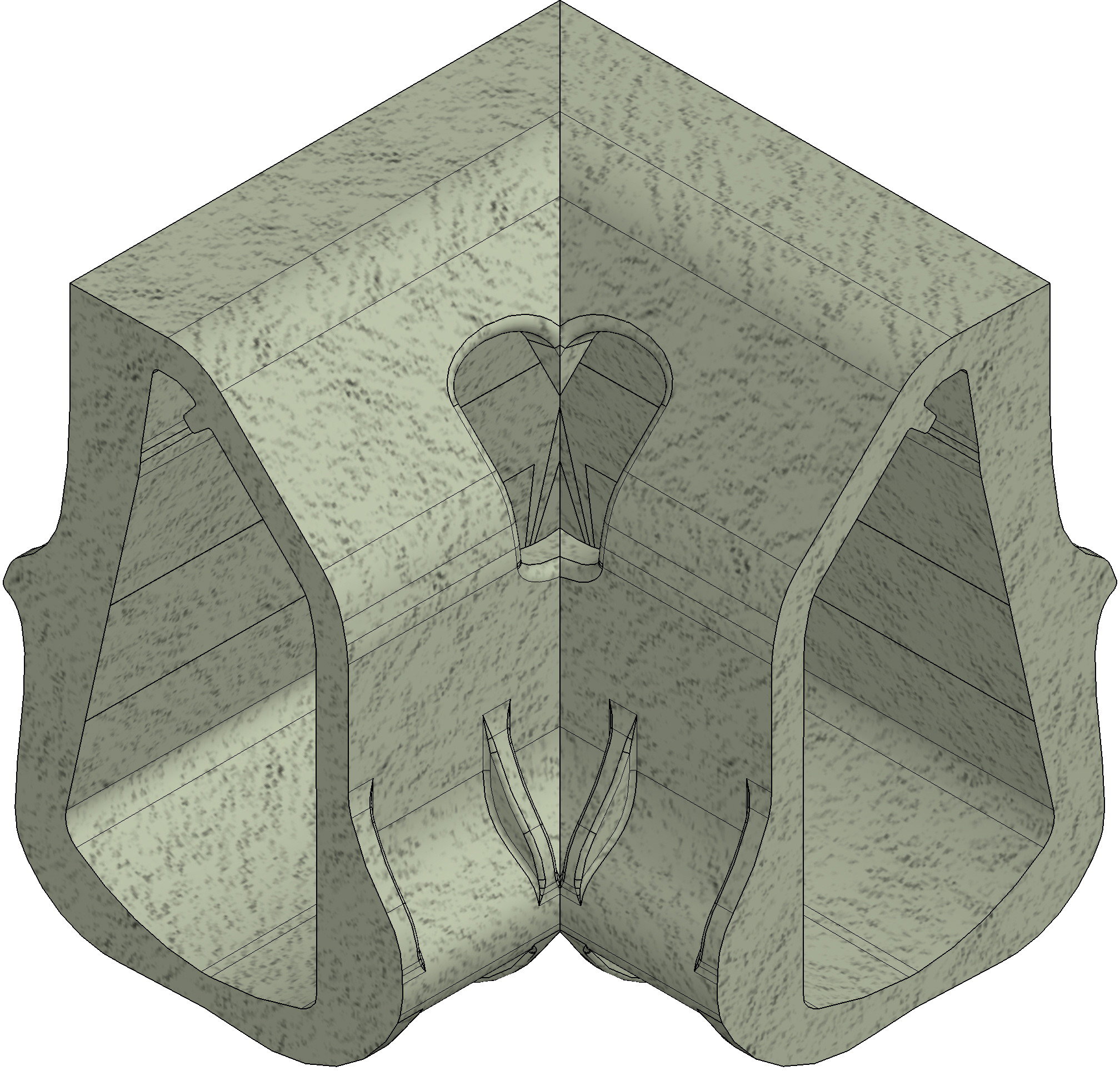

Product image

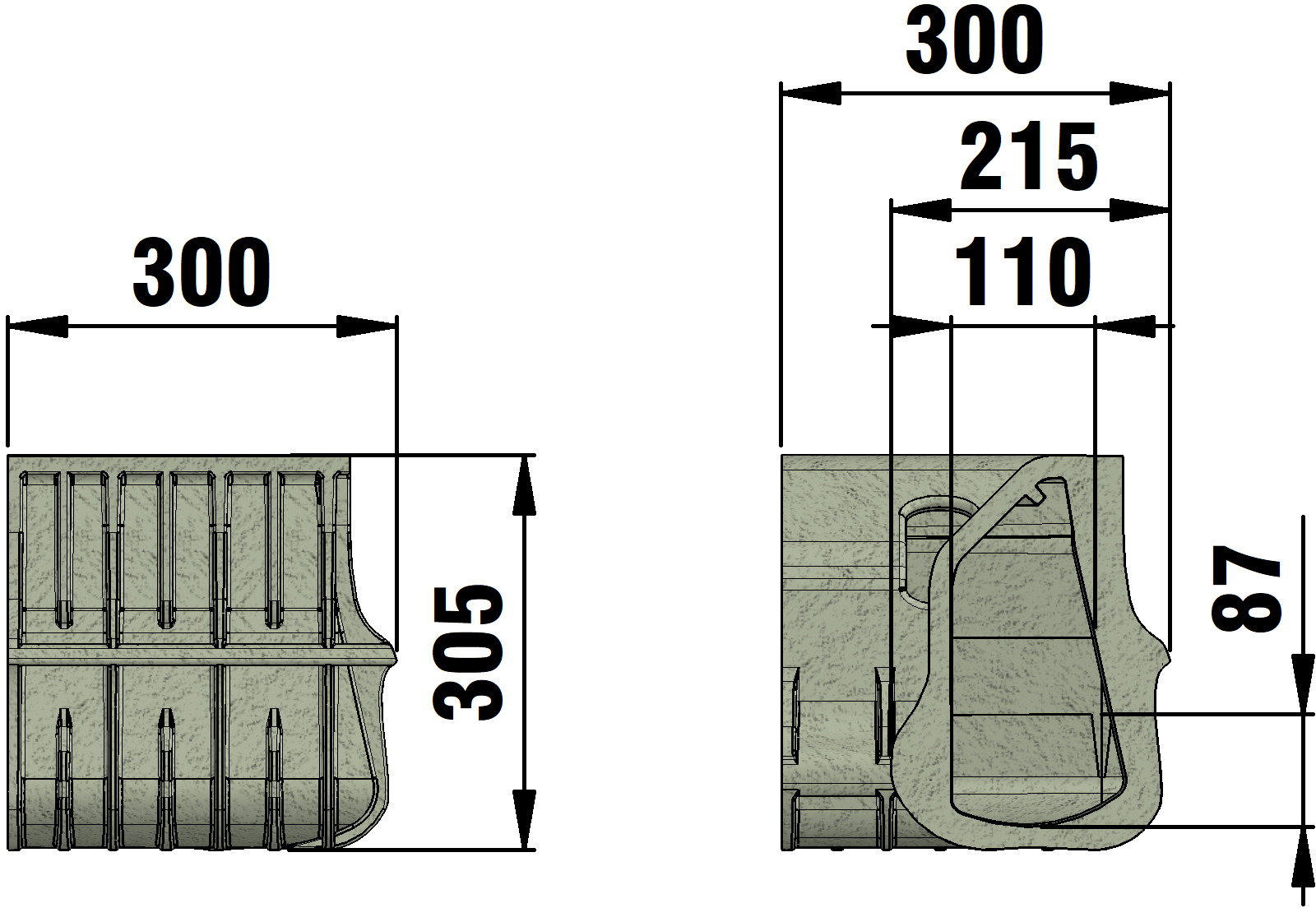

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10554
Length
300 mm
Width
215 mm
Height
305 mm
Weight
7.00 kg
Material
reinforced Polypropylene
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
110
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Sales text
KERBFIX Internal Full Battered 90 Degree Corner, 0.3 x 0.3 m
Product description
KERBFIX - Internal Full Battered 90 degree corner, with integrated drainage, made of recycled PP, grey, according to EN 1433, load class A 15 - D 400, LxWxH 300x300x215x305 mm, Item no. 10554
Packaging unit
-
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400,
Concrete class A 15 - D 400,
