Data Sheet
Technical information and metrics
Article No.
10200
Length
300 mm
Width
215 mm
Height
305 mm
Weight
7.00 kg
Material
reinforced Polypropylene
Height of angle housing
-
Intake cross-section
153.0 cm²/m
Nominal size
110
Internal channel cross-section
212 cm²
Fall
-
Type according to DIN EN 1433
M
Sales text

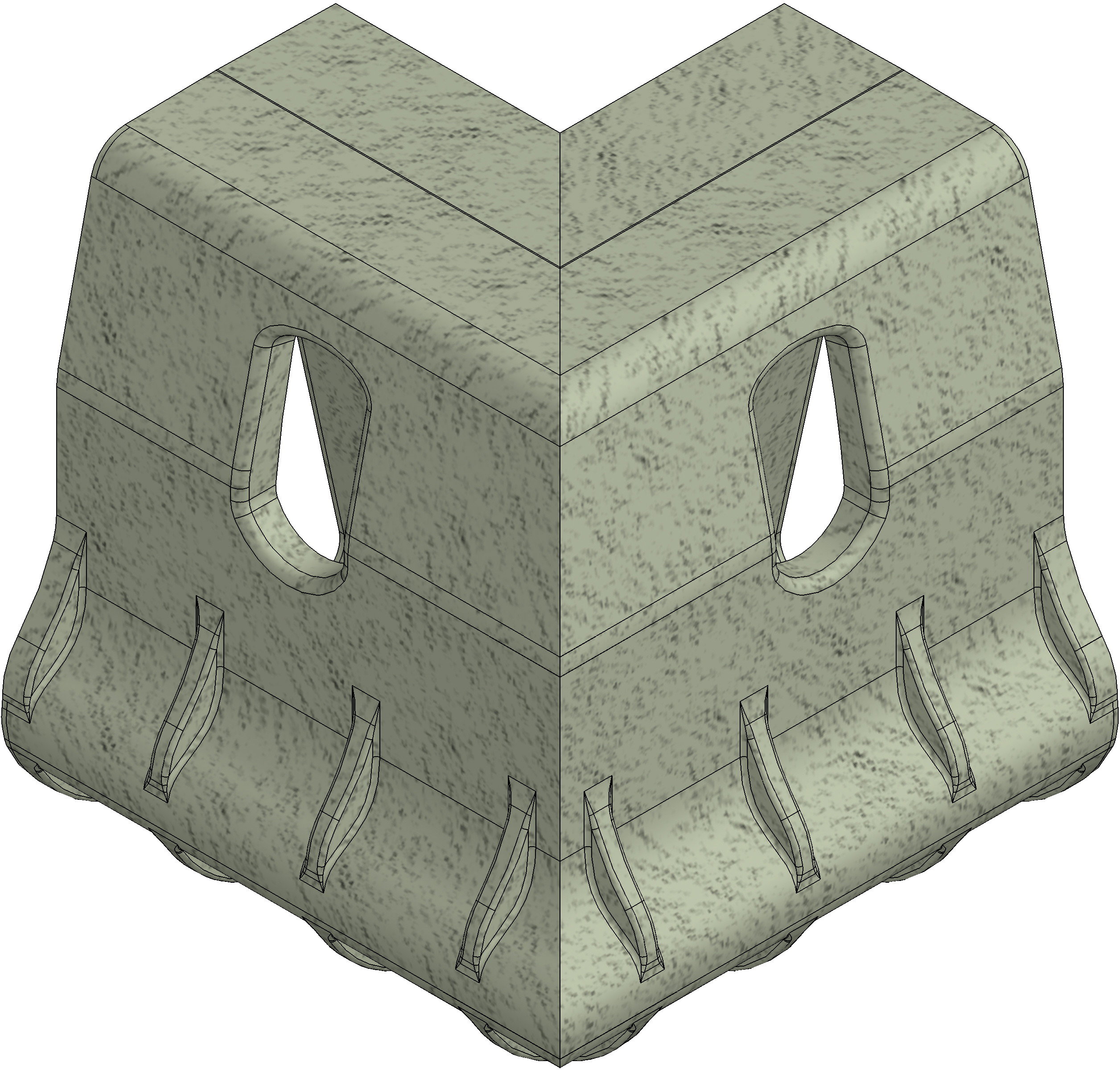

KERBFIX External Half Battered 90° Corner, 0.3 x 0.3 m
Product description
KERBFIX 305 - External Half Battered 90 degree corner, with integrated drainage, made of recycled PP, grey, according to EN 1433, load class A 15 - D 400, LxWxH 300x300x215x305 mm, item no. 10200
Packaging unit
-
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400,
Concrete class A 15 - D 400,
