Article No. 24855
sump unit
for NW 300, for Type 020, 2-part, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, with PVC-U socket DN/OD 315, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

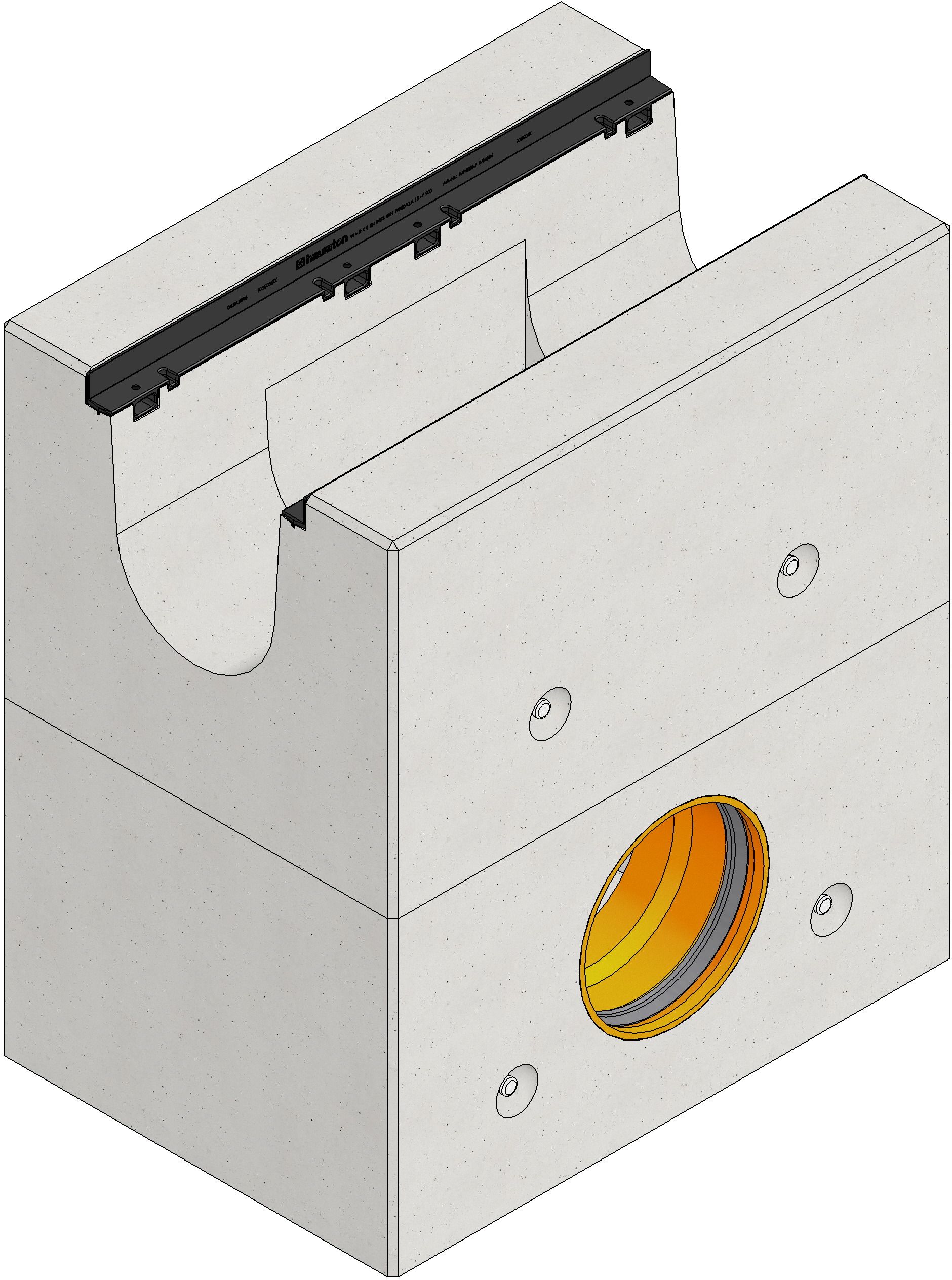

Product image

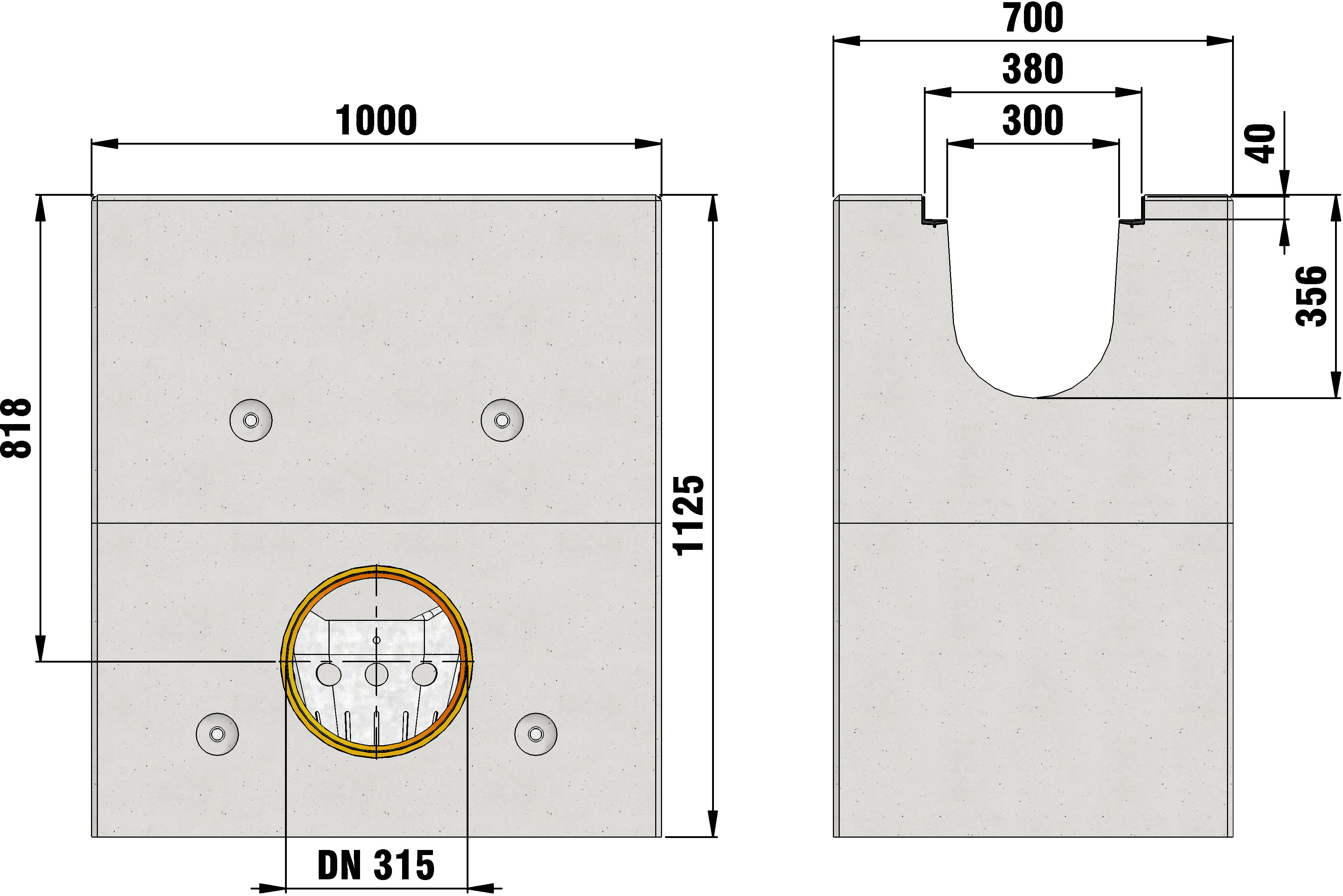

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
24855
Length
1000 mm
Width
700 mm
Height
1125 mm
Weight
1460.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, High performance concrete
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of KTL-coated ductile iron, with silt bucket made of galvanised steel, with PVC-U socket DN /OD 315, FASERFIX BIG BL 300 type 020, 1 m
Product description
FASERFIX BIG BL 300 type 020 - Sump unit, 2-part, made of steel-reinforced concrete C50/60, with edge frames made of KTL-coated ductile iron, with PVC-U socket DN/OD 315, with removable silt bucket made of galvanised steel, load class A 15 - F 900 according to EN 1433, LxWxH 1000x700x1125 mm, item no. 24855
Packaging unit
-
