Article No. 84755
sump unit
for NW 300, for Type 021, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with PVC-U socket DN/OD 315, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

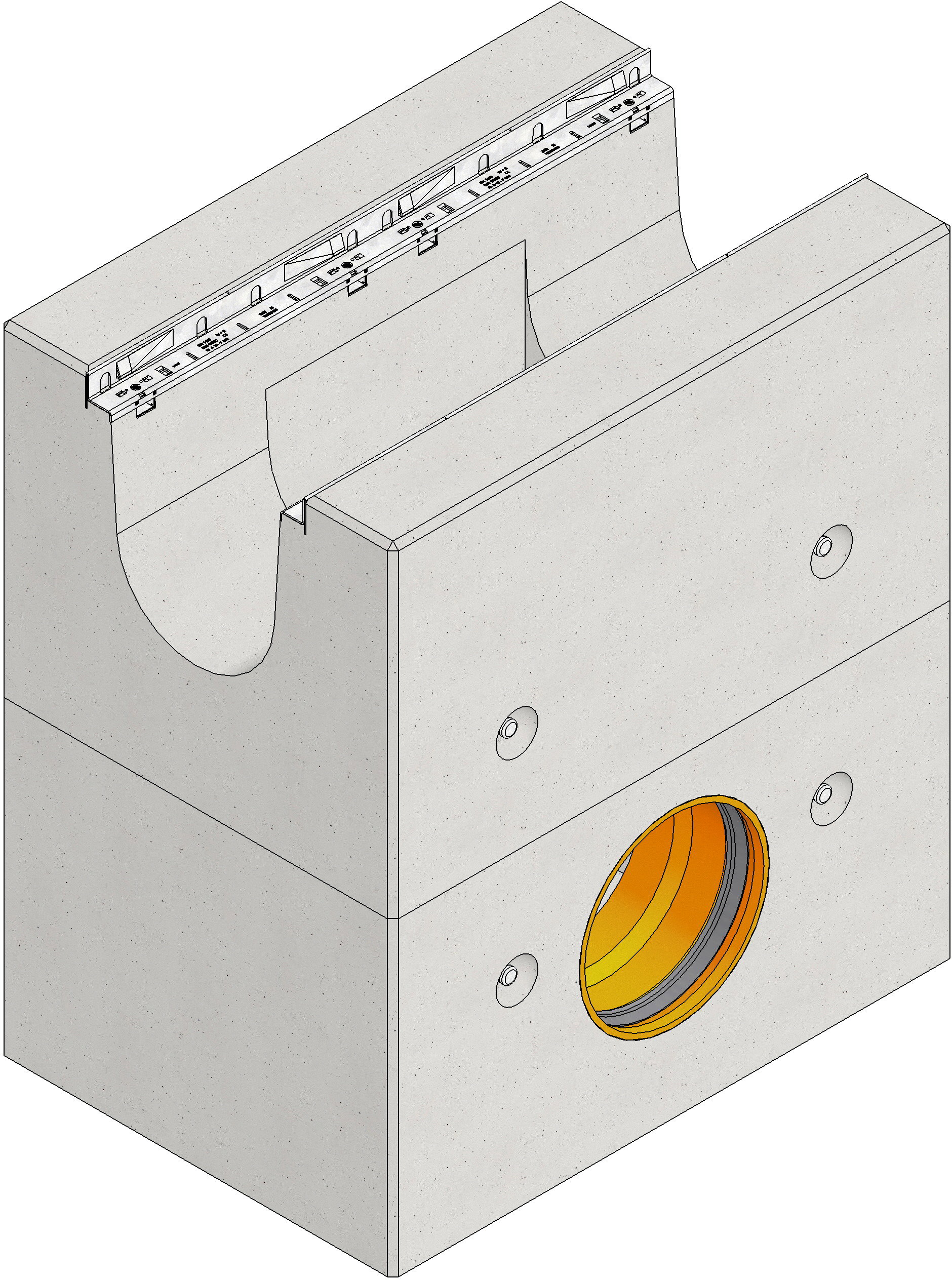

Product image

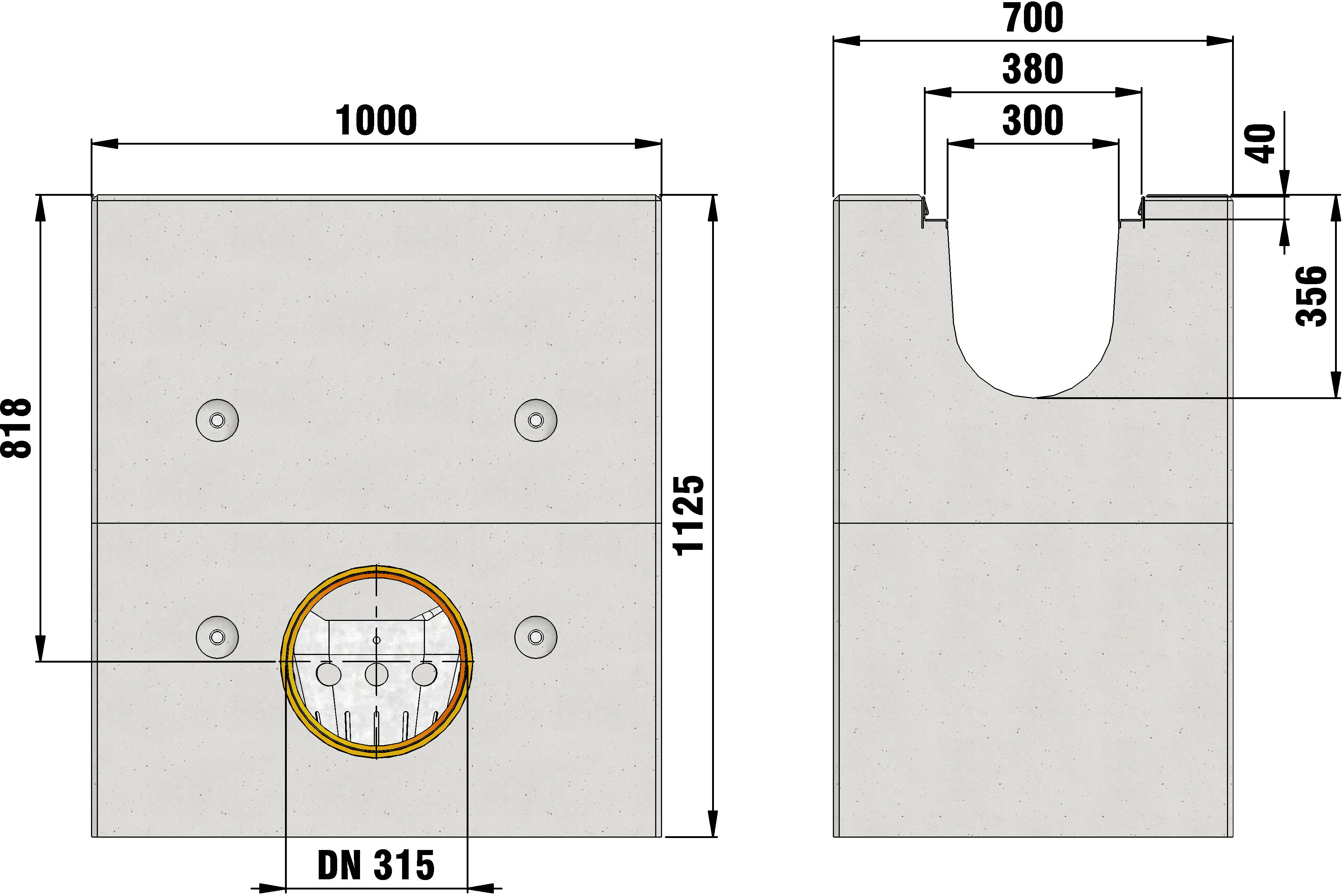

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
84755
Length
1000 mm
Width
700 mm
Height
1125 mm
Weight
1460.00 kg
Material
High performance concrete, Steel with zinc-magnesium coating
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of galvanised steel, with silt bucket made of galvanised steel, with PVC-U socket DN/OD 315 , FASERFIX BIG BL 300 type 021, 1 m
Product description
FASERFIX BIG BL 300 type 021 - Sump unit, 2-part, made of steel-reinforced concrete C50/60, with galvanised edge frames and boltless quick-locking system SIDE-LOCK, with PVC-U socket DN/OD 315, with removable silt bucket made of galvanised steel, load class A 15 - F 900 according to EN 1433, LxWxH 1000x700x1125 mm, item no. 84755
Packaging unit
-
