Article No. 10720
sump unit
for NW 300, for Type 020, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with opening Ø 282 mm in top part, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

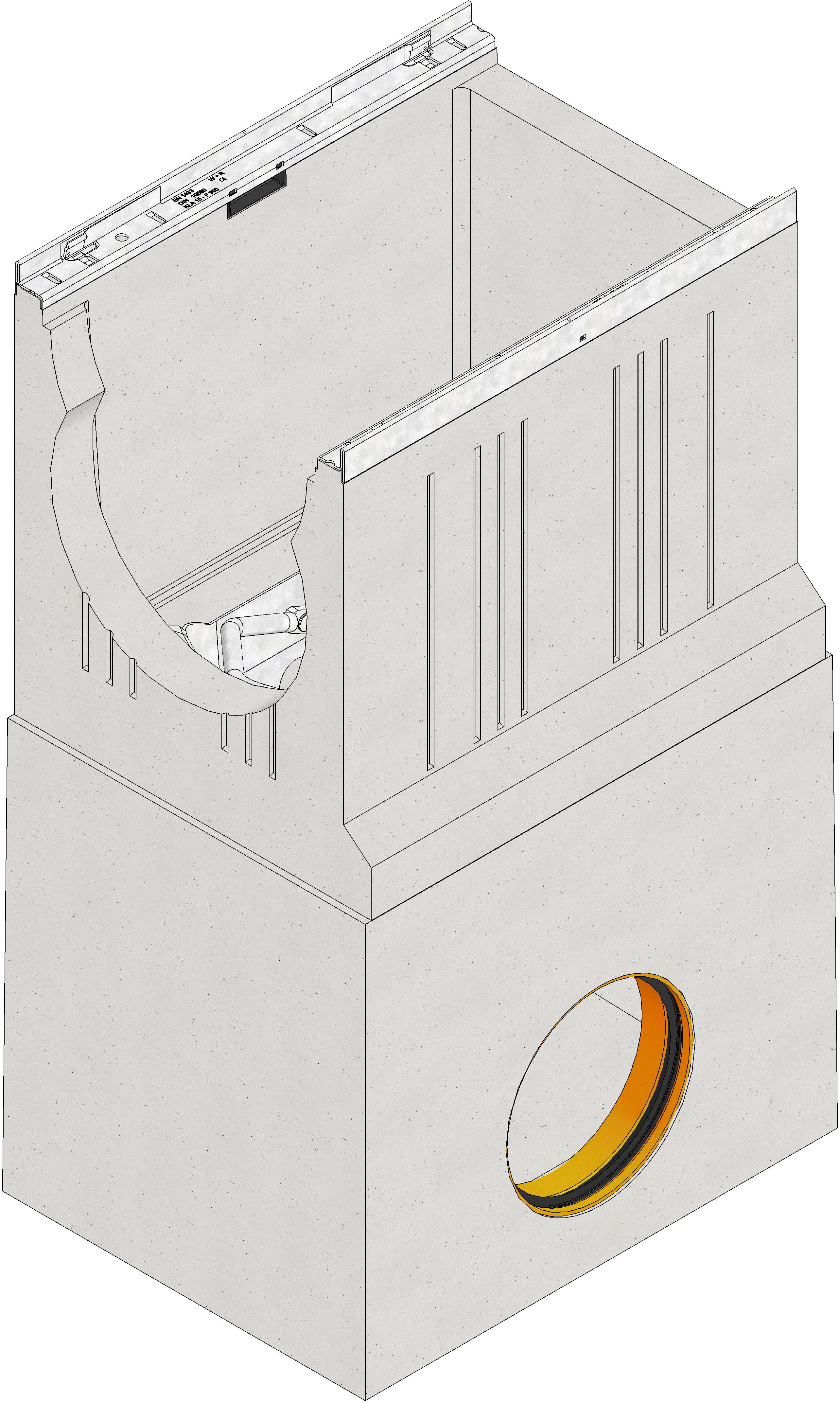

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10720
Length
500 mm
Width
360 mm
Height
881 mm
Weight
162.89 kg
Material
fibre-reinforced concrete, hot-dip galvanised steel, strip galvanized steel
Nominal size
300
Sales text
Sump unit type 020, 2 parts, with edge frames made of galvanised steel, with silt bucket made of galvanised steel, with 2 openings Ø 282 mm in top part for connection of channel FASERFIX KS 300 type 020, 0.5 m
Product description
FASERFIX KS 300 type 020 - Sump unit, 2 parts, made of fibre-reinforced concrete, with 2 openings Ø 282 mm in Top part for connection of channel FASERFIX KS 300 type 020, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, LxWxH 500x360x881 mm, item no. 10720
Packaging unit
-
