Article No. 22855
sump unit
for NW 150, 2-part, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, with PVC-U socket DN/ OD 160, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

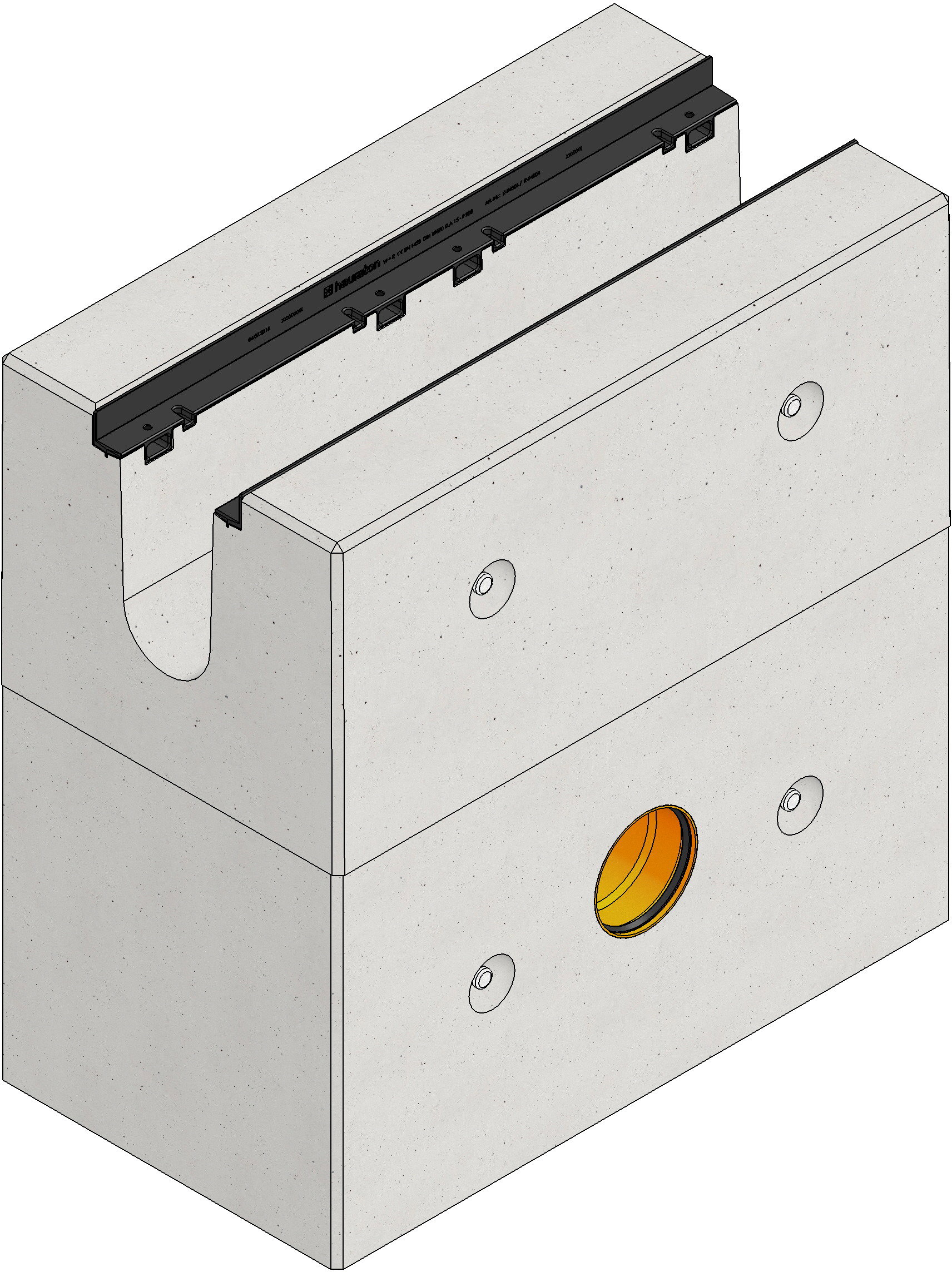

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
22855
Length
1000 mm
Width
550 mm
Height
1012 mm
Weight
1035.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, High performance concrete
Nominal size
150
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of KTL-coated ductile iron, with silt bucket made of galvanised steel, with PVC-U socket DN /OD 160, FASERFIX BIG BL 150 type 020, 1 m
Product description
FASERFIX BIG BL 150 type 020 - Sump unit, 2-part, made of steel-reinforced concrete C50/60, with edge frames made of KTL-coated ductile iron, with PVC-U socket DN/OD 160, with removable silt bucket made of galvanised steel, load class A 15 - F 900 according to EN 1433, LxWxH 1000x550x1012 mm, item no. 22855
Packaging unit
-
