Article No. 81797
sump unit
for NW 100, for Type 021, Bottom part, with PVC-U socket DN/OD 160, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

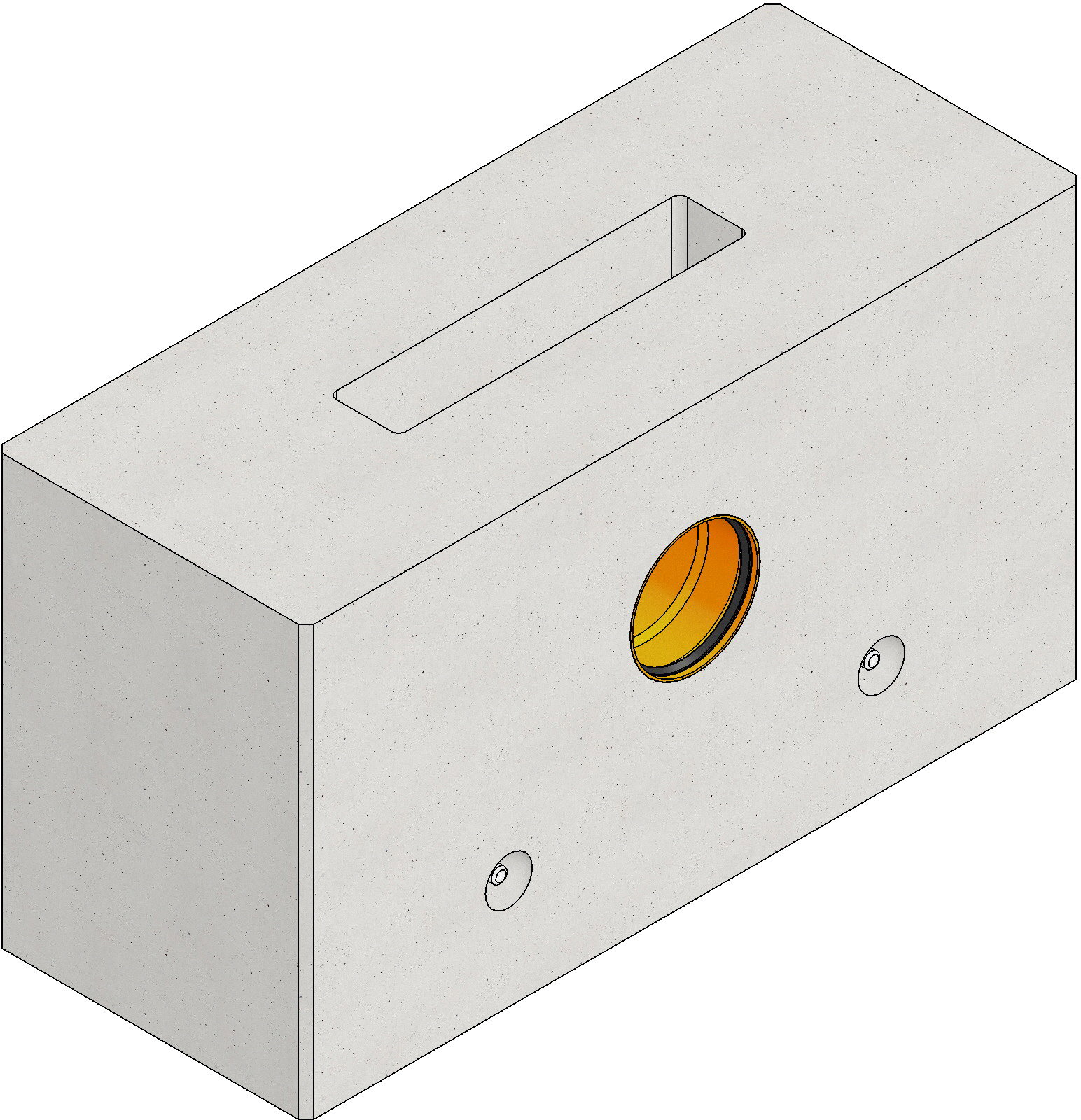

Product image

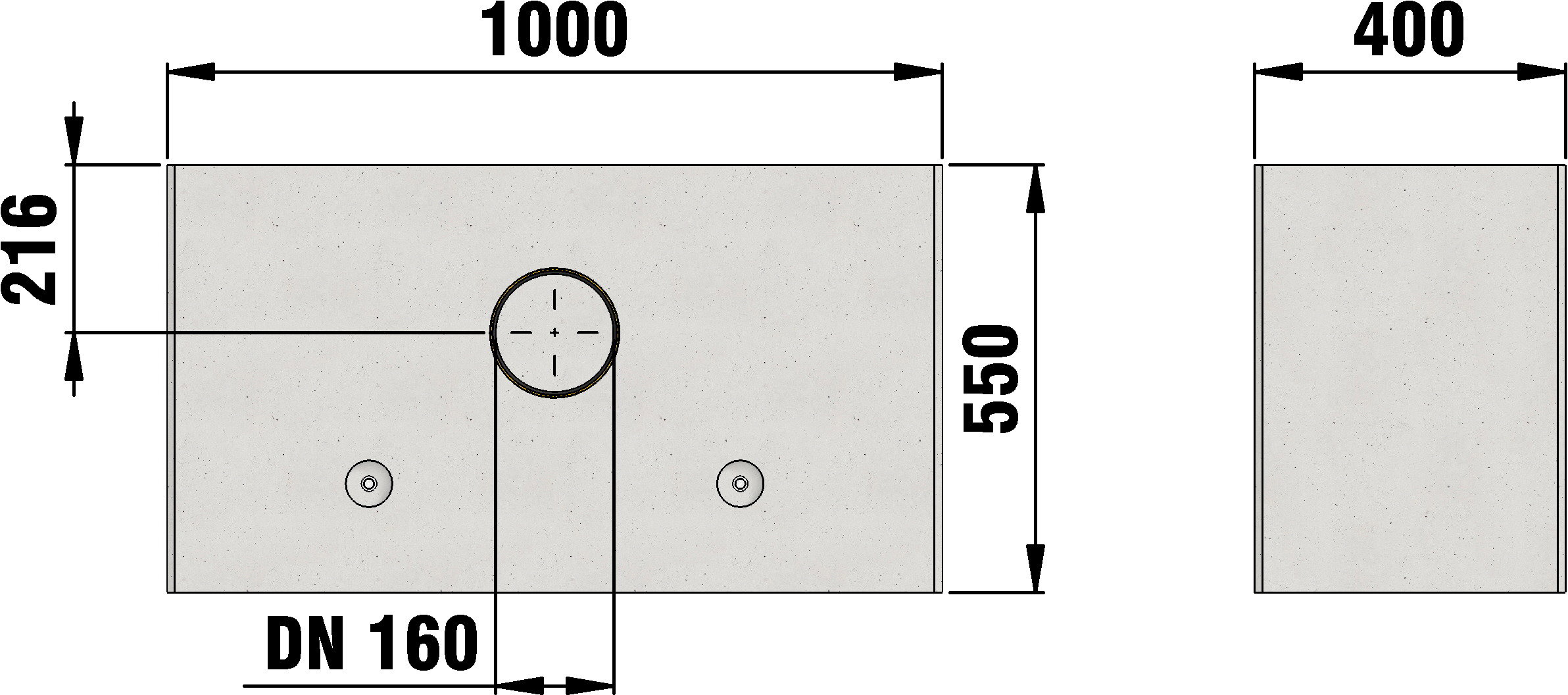

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
81797
Length
1000 mm
Width
400 mm
Height
550 mm
Weight
330.00 kg
Material
High performance concrete, PVC-U
Nominal size
100
Sales text
Sump unit bottom part, with PVC-U socket DN/OD 160, for sump unit, 2-part, FASERFIX BIG BL 100 type 021, 1 m
Product description
FASERFIX BIG BL 100 type 021 - Sump unit bottom part, made of concrete, with PVC-U socket DN/OD 160, installation length 1000 mm, item no. 81797
Packaging unit
-
