Article No. 32050

SERVICE CHANNELS FASERFIX KS 100 made of fibre-reinforced concrete with 20 mm angle housing, class E 600

Type 020, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

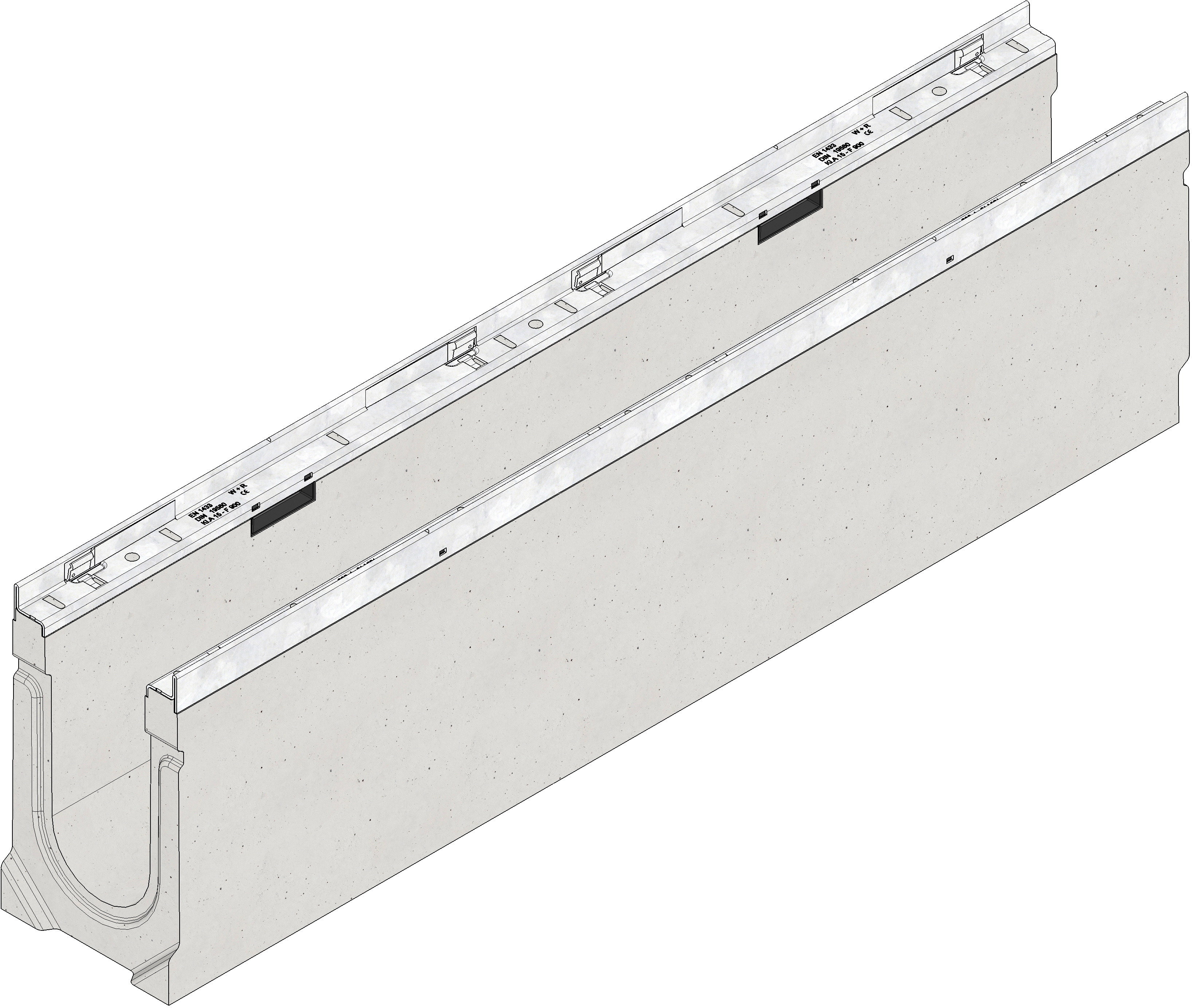

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
32050
Length
1000 mm
Width
160 mm
Height
274 mm
Weight
49.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
199 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
MEDIA CHANNEL FASERFIX KS 100 Channel body type 020 with edge frames made of galvanised steel, 1 m
Product description
MEDIA CHANNEL FASERFIX KS 100 type 020 -Channel body made of fibre-reinforced concrete, with edge frames made of galvanised steel, with boltless quick-locking system SIDE-LOCK, 8-fold locking, with sealing groove, load class A 15 - F 900 according to EN 1433, CE compliant, LxWxH 1000x160x274 mm, item no. 32050
Packaging unit
21
