Article No. 13781

RECYFIX HICAP F 8000 up to load class E 600

Access unit, with ductile iron grating, closed, KTL-coated, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

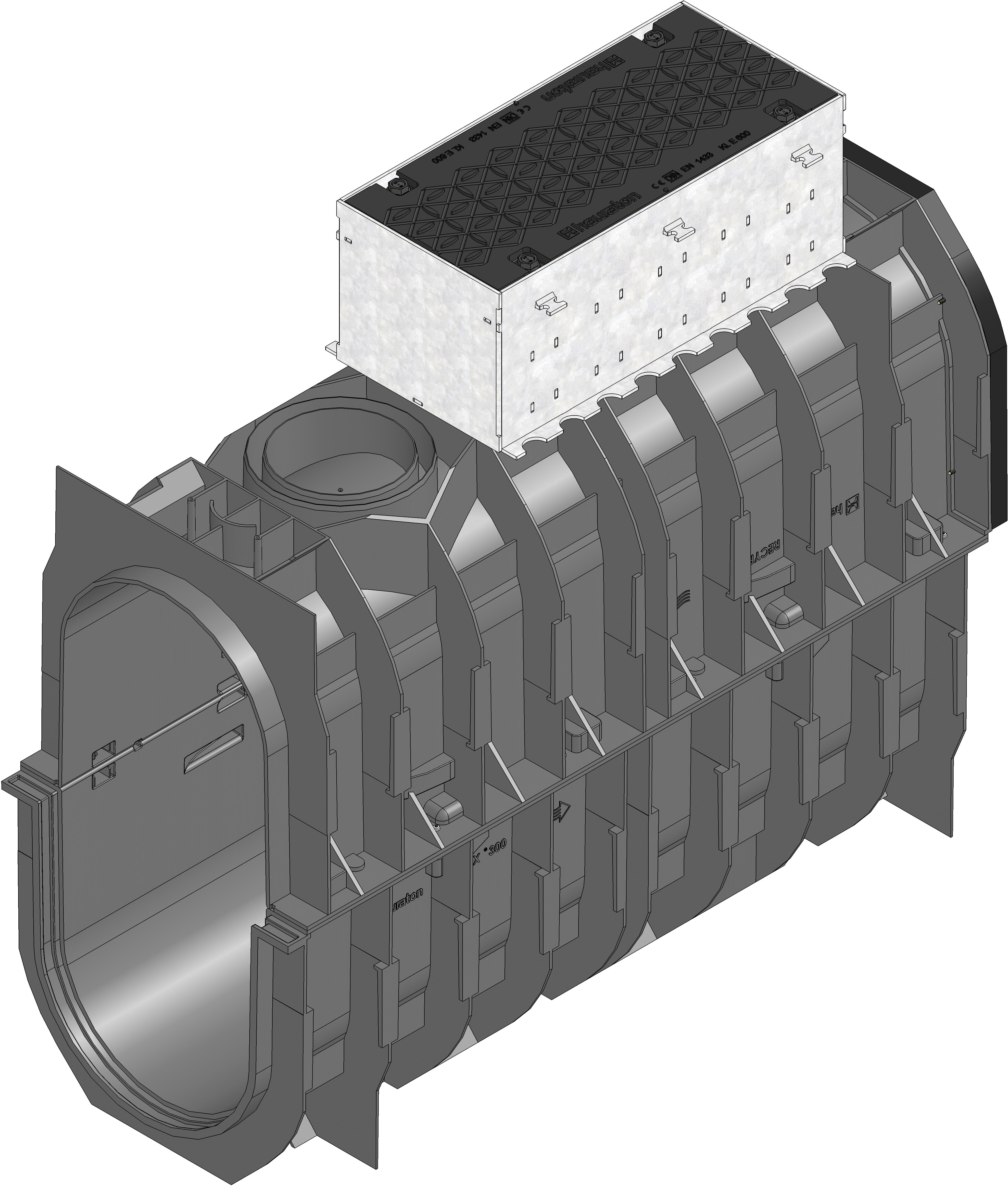

Product image

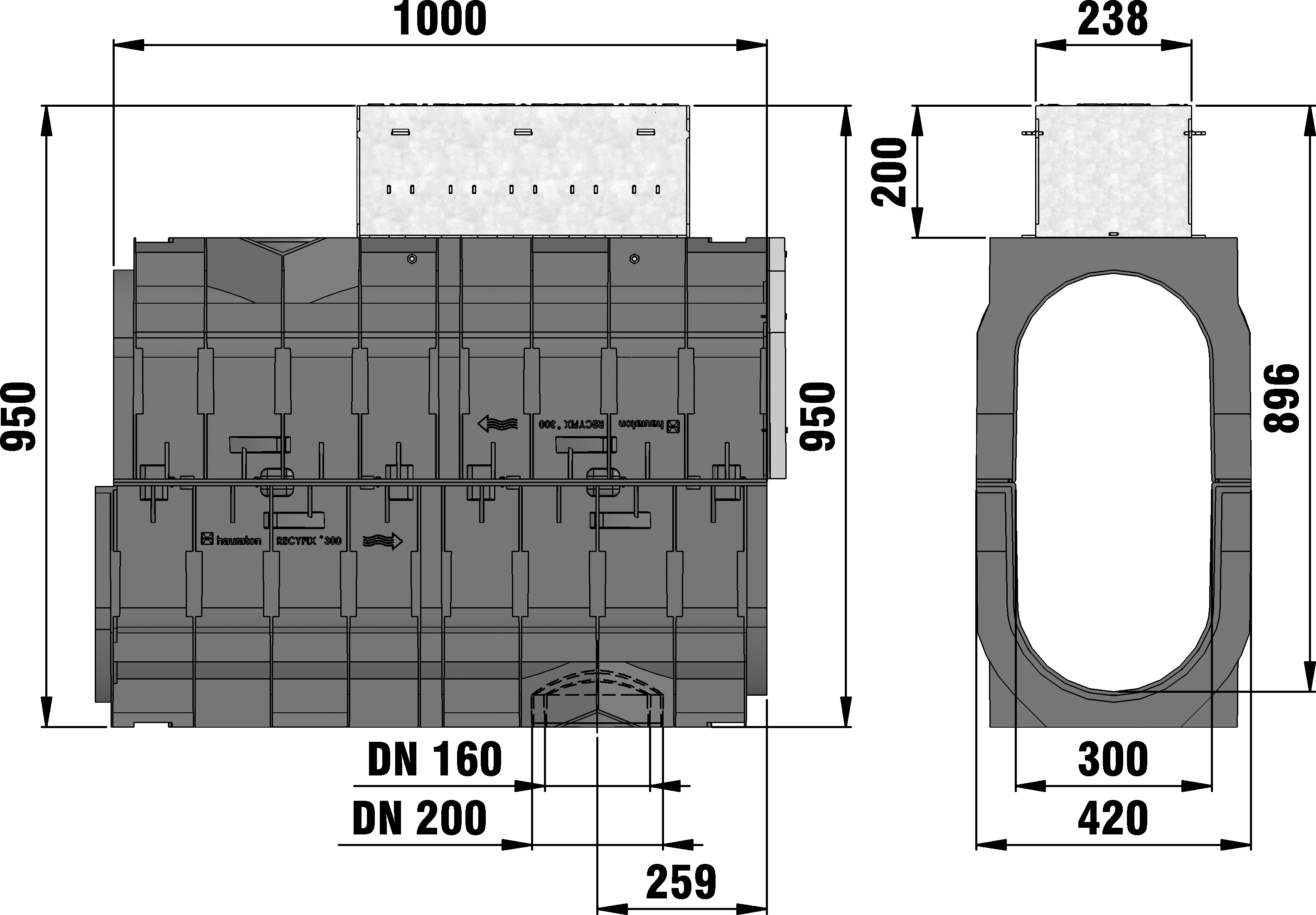

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
13781
Length
1000 mm
Width
420 mm
Height
950 mm
Weight
48.78 kg
Material
Ductile iron GJS 500-7, Galvanised steel, Stainless steel (V2A), Steel 8.8 zinc-laminated black
Intake cross-section
0.0 cm²/m
Nominal size
8000
Type according to DIN EN 1433
M
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Access unit with ductile iron grating, closed, KTL-coated, cl. E 600, RECYFIX HICAP 8200, 1 m
Product description
RECYFIX HICAP 8200 - Access unit, according to EN 1433, CE compliant, consists of channel body made of recycled polypropylene, and top element, height 200 mm, made of galvanised steel, with ductile iron grating closed made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, 4-fold locking, load class A 15 - E 600 according to EN 1433, length 1000 mm, item no. 13781
Packaging unit
-
