Article No. 10546
FASERFIX KS 200, class D 400
Mesh grating MS 30/10 mm, galvanised, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

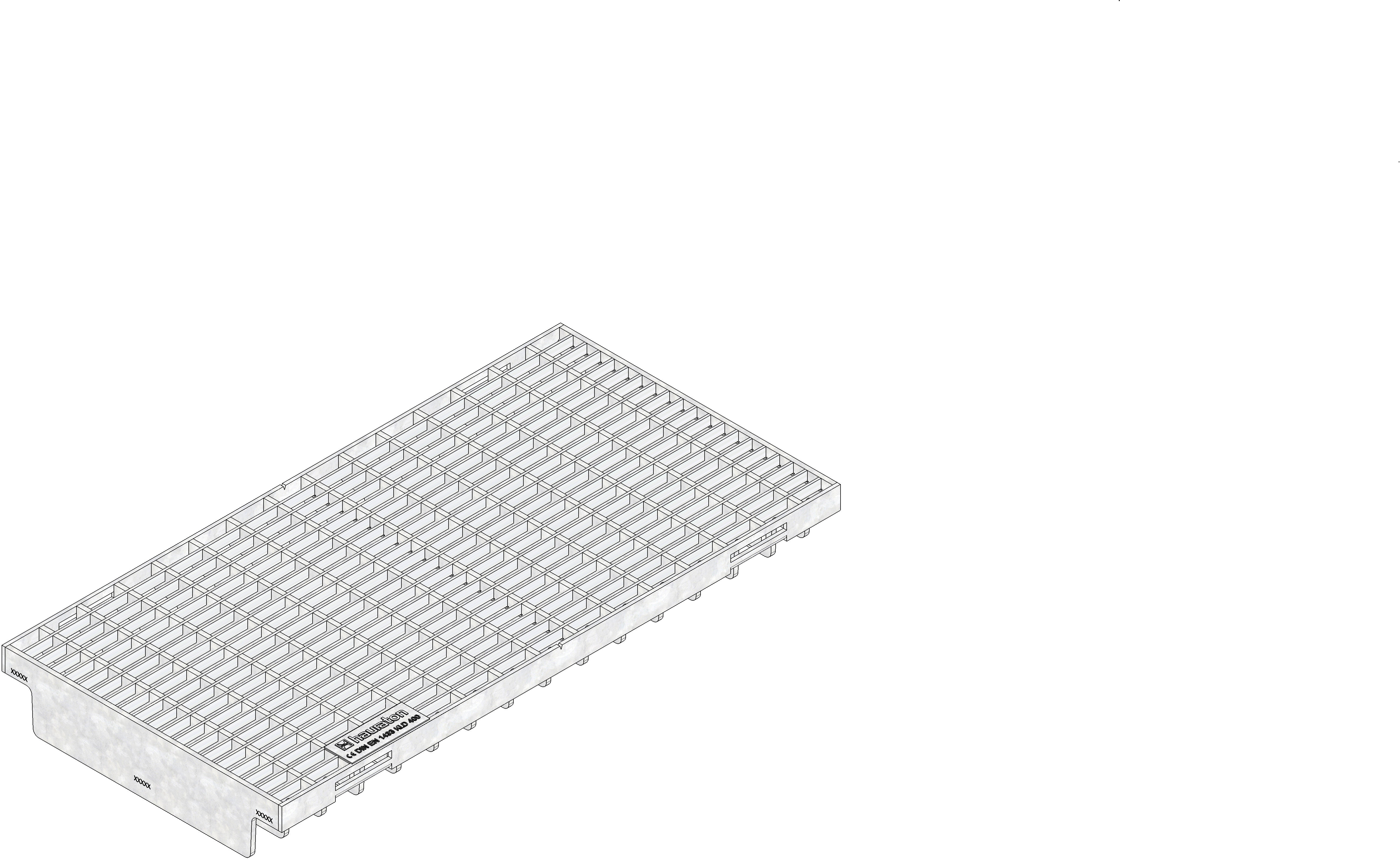

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10546
Length
500 mm
Width
249 mm
Height
56 mm
Inlay depth
20 mm
Weight
7.92 kg
Material
hot-dip galvanised steel
Intake cross-section
1750.0 cm²/m
Nominal size
200
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433
Sales text
Mesh grating MS 30/10 mm, 3galvanised, cl. D 400, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - Mesh grating MS 30/10 mm, galvanised, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 10546
Packaging unit
-
Declaration of Performance
