Article No. 33259
FASERFIX KS 150, class C 250
Mesh grating MS 30/10 mm, stainless steel V4A, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

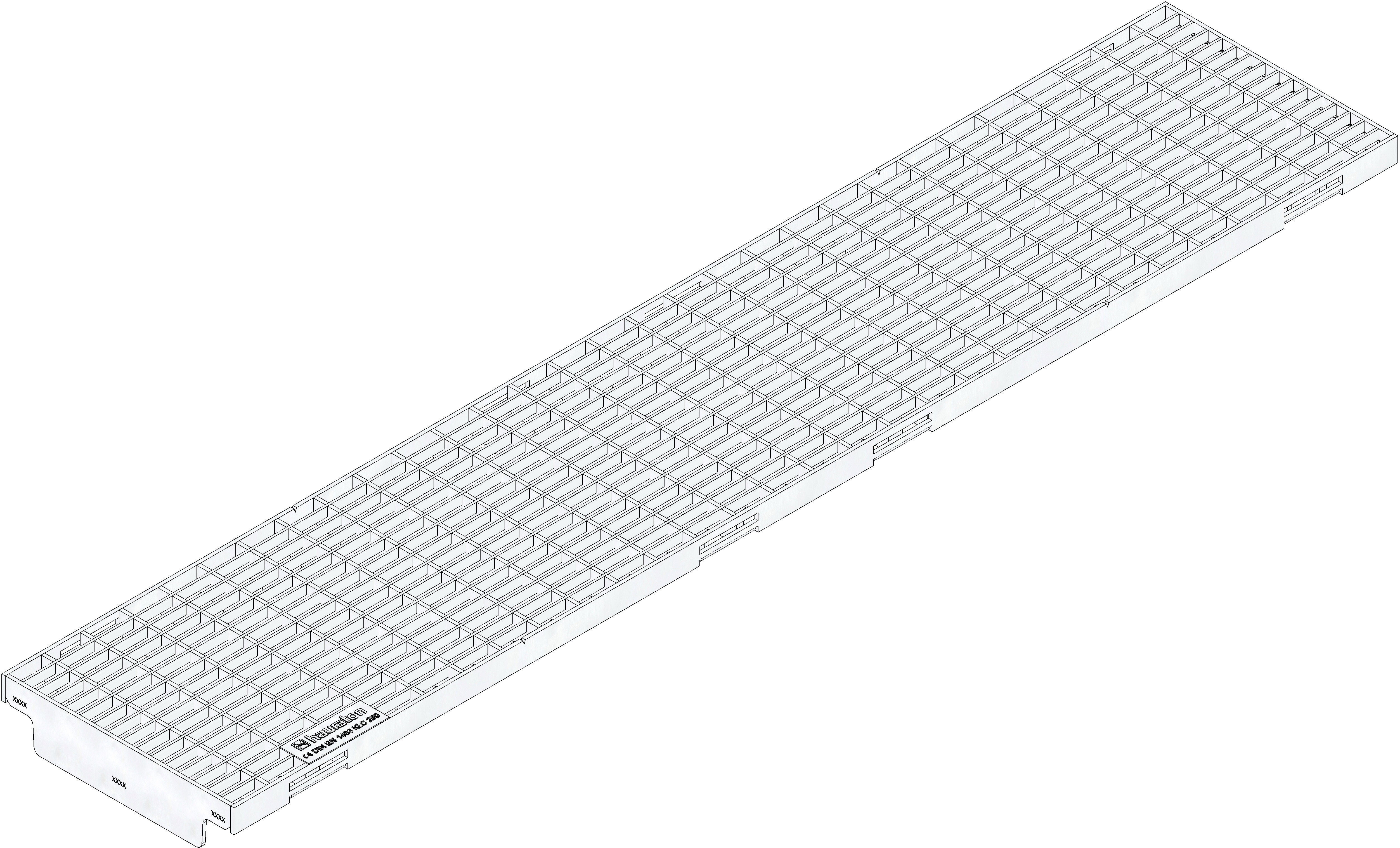

Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
33259
Length
1000 mm
Width
199 mm
Height
46 mm
Inlay depth
20 mm
Weight
7.98 kg
Material
Stainless steel 1.4404
Intake cross-section
0.0 cm²/m
Nominal size
150
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4404
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, stainless steel V4A, cl. C 250, FASERFIX KS 150, 1 m
Product description
FASERFIX KS 150 - Mesh grating MS 30/10 mm, stainless steel CNS 1.4404, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no.33259
Packaging unit
102
Declaration of Performance
