Article No. 4672
FASERFIX BIG SLG 300, up to class F 900
Type 010 with one-sided joint insert, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

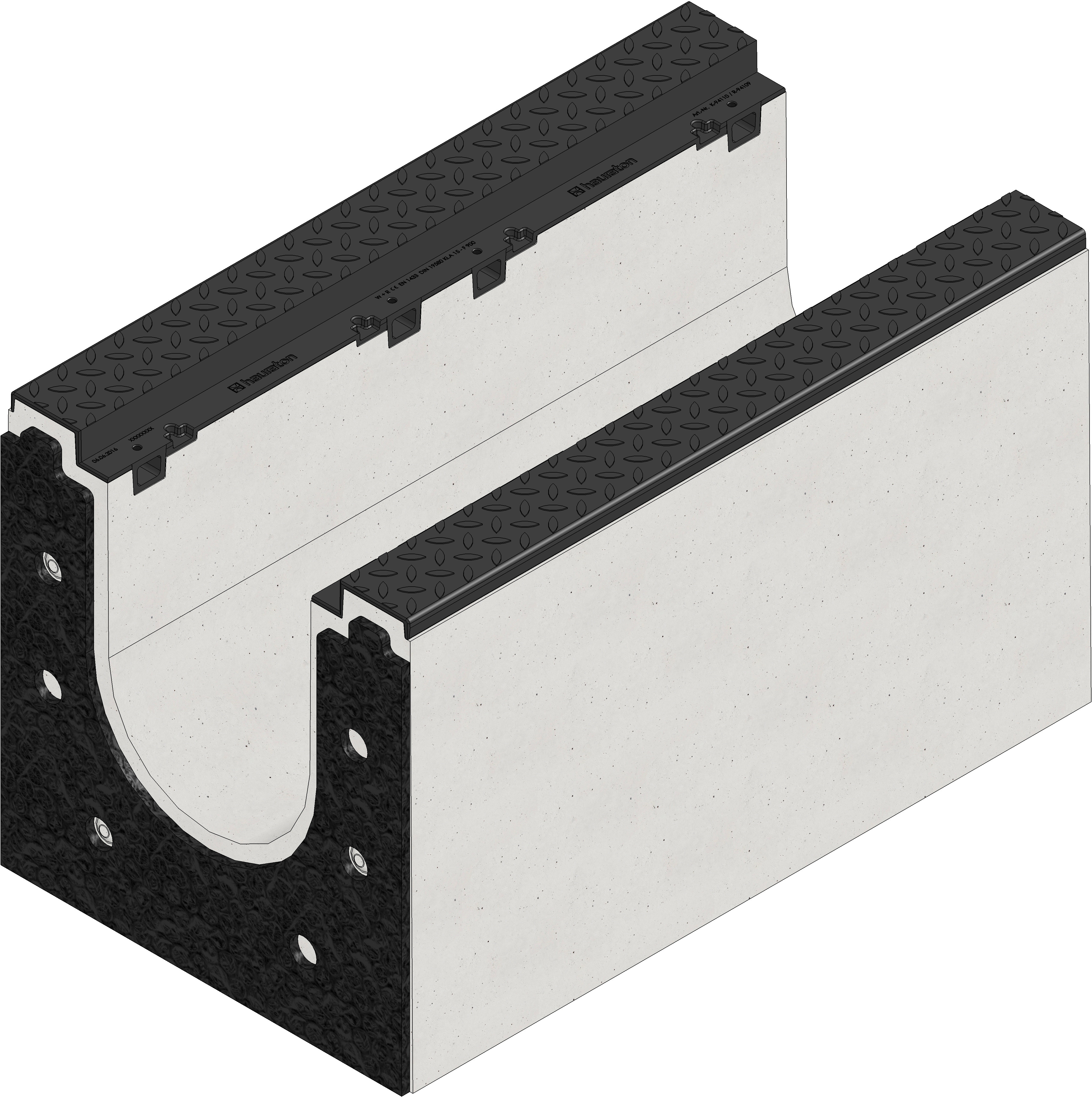

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
4672
Length
1000 mm
Width
588 mm
Height
600 mm
Weight
553.00 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
1020 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX BIG SLG 300 Channel body type 010 with one-sided expansion joint insert, with edge frames made of ductile iron, 1 m
Product description
FASERFIX BIG SLG 300 type 010 - Channel body made of fibre-reinforced concrete, with edge frames (height 40 mm) and also integrated concrete surface protection (5 mm thickness) with ribbed ‘anti-slip’ surface, made of ductile iron EN-GJS-500-07, KTL-coated, 8-fold locking, with sealing groove, expansion joint insert on one side, load class A 15 - F 900 according to EN 1433, LxWxH 1000x588x600 mm, item no. 4672
Packaging unit
3
Declaration of Performance
Tender Texts
Installation example
Asphalt class D 400,
Concrete class D 400,
Pavement class D 400 - E 600,
Asphalt class E 600 - F 900,
Concrete class E 600 - F 900,
Asphalt class D 400, Type I
Concrete class D 400, Type I
Pavement class D 400, Type I
Asphalt class D 400, as double strand
Concrete class D 400, as double strand
Pavement class D 400 - E 600, as double strand
Asphalt class E 600 - F 900, as double strand
Concrete class E 600 - F 900, as double strand
