Article No. 2482
FASERFIX BIG SLG 150, up to class F 900
Type 020 with one-sided expansion joint plate, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

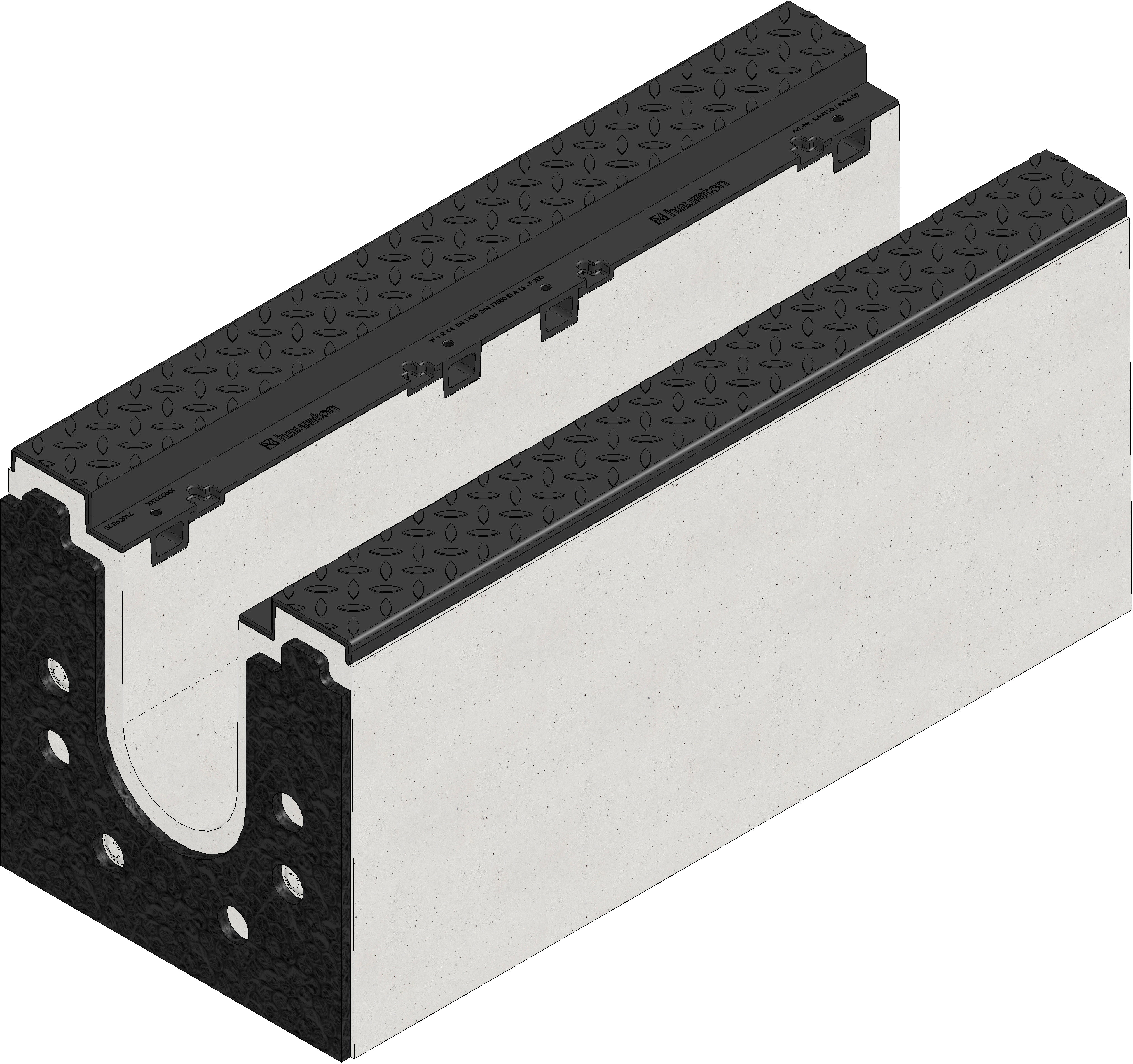

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
2482
Length
1000 mm
Width
438 mm
Height
460 mm
Weight
379.00 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
375 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX BIG SLG 150 Channel body type 020 with edge frames made of ductile iron, with one-sided expansion joint insert, 1 m
Product description
FASERFIX BIG SLG 150 type 020 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge-frames (height 40 mm) and integral protective capping in ductile iron (5 mm thick) with ribbed ‘anti-slip’ surface, KTL-coated, 8-fold locking, with sealing groove, expansion joint insert on one side, LxWxH 1000x438x460 mm, item no. 2482
Packaging unit
2
Declaration of Performance
Tender Texts
Installation example
Asphalt class D 400,
Concrete class D 400,
Pavement class D 400 - E 600,
Asphalt class E 600 - F 900,
Concrete class E 600 - F 900,
Asphalt class D 400, Type I
Concrete class D 400, Type I
Pavement class D 400, Type I
Asphalt class D 400, as double strand
Concrete class D 400, as double strand
Pavement class D 400 - E 600, as double strand
Asphalt class E 600 - F 900, as double strand
Concrete class E 600 - F 900, as double strand
