Article No. 1482
FASERFIX BIG SLG 100, up to class F 900
Type 020 with one-sided expansion joint insert
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

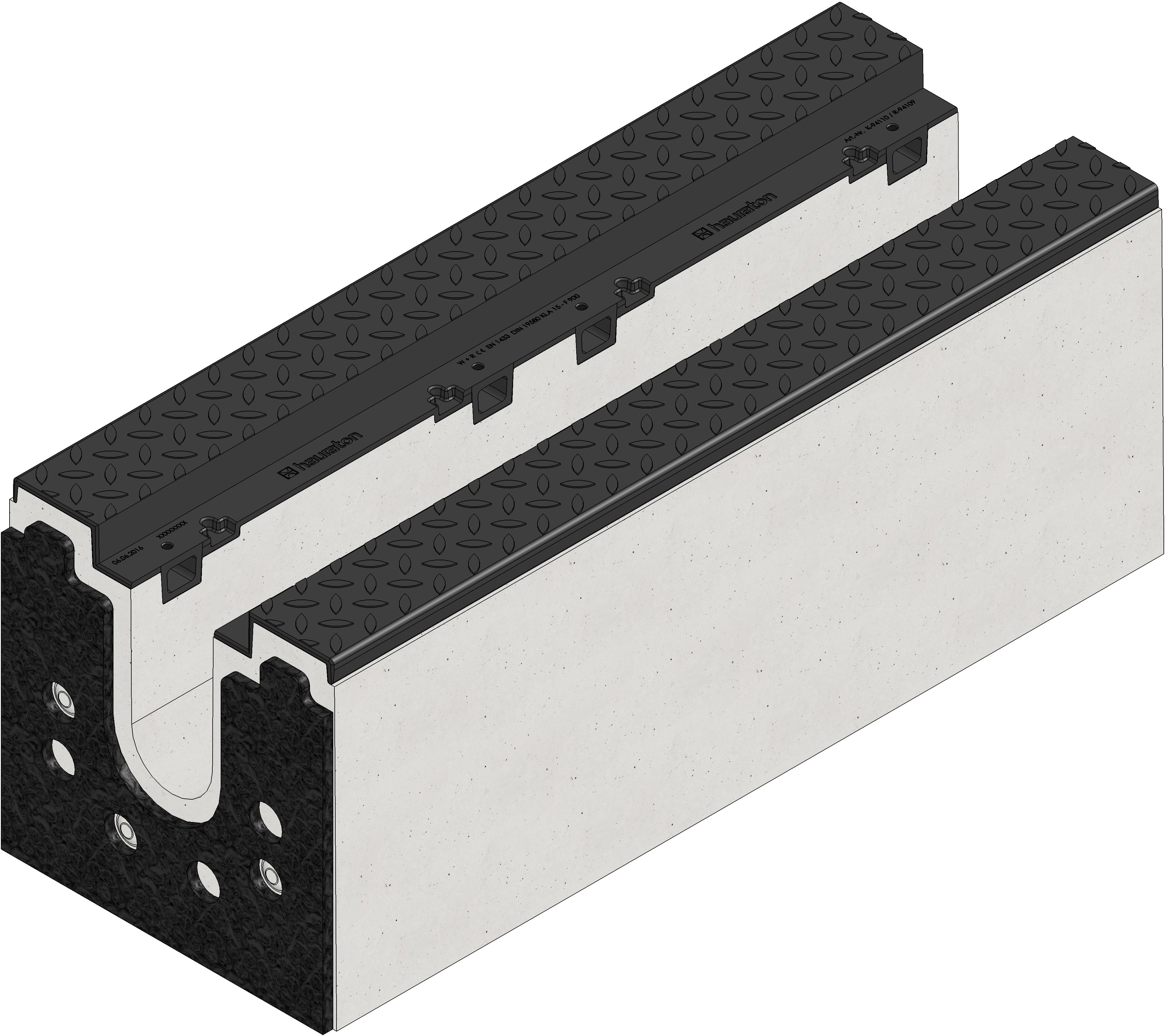

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
1482
Length
1000 mm
Width
388 mm
Height
385 mm
Weight
307.00 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
100
Internal channel cross-section
181 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX BIG SLG 100 Channel body type 020 with edge frames made of ductile iron, with one-sided expansion joint insert, 1 m
Product description
FASERFIX BIG SLG 100 type 020 - Channel body made of fibre-reinforced concrete, with edge frames (height 40 mm) and also integrated concrete surface protection (5 mm thickness) with ribbed ‘anti-slip’ surface, made of ductile iron EN-GJS-500-07, KTL-coated, 8-fold locking, with sealing groove, expansion joint insert on one side, load class A 15 - F 900 according to EN 1433, LxWxH 1000x388x385 mm, item no. 1482
Packaging unit
3
Declaration of Performance
Tender Texts
Installation example

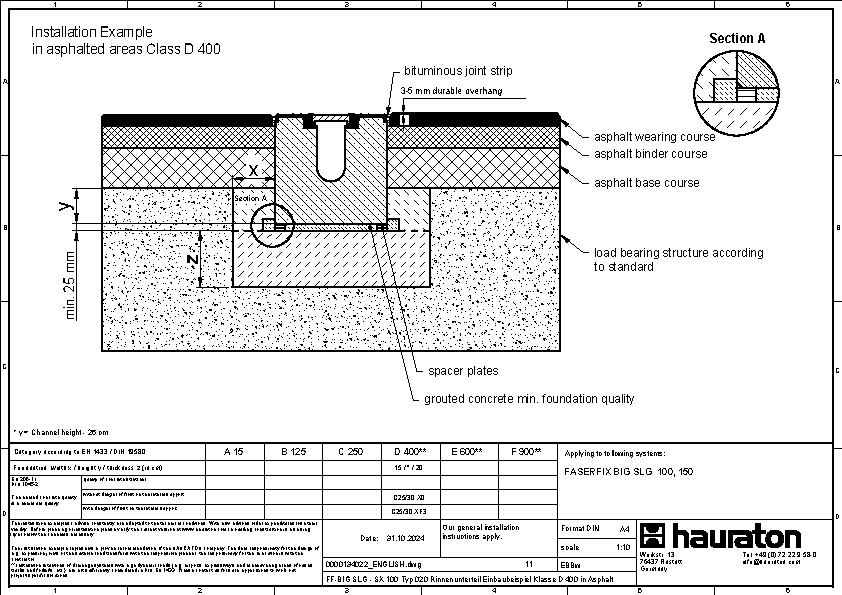

Asphalt class D 400,

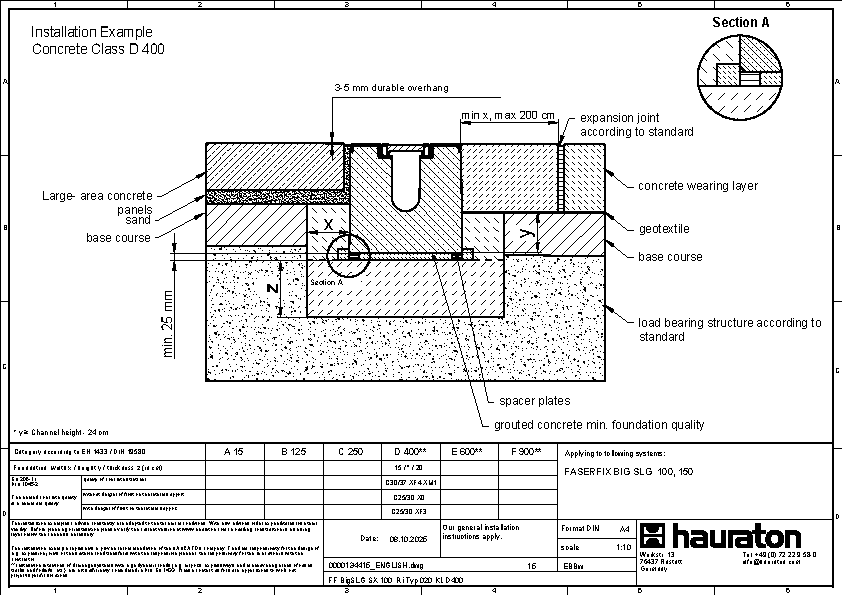

Concrete class D 400,

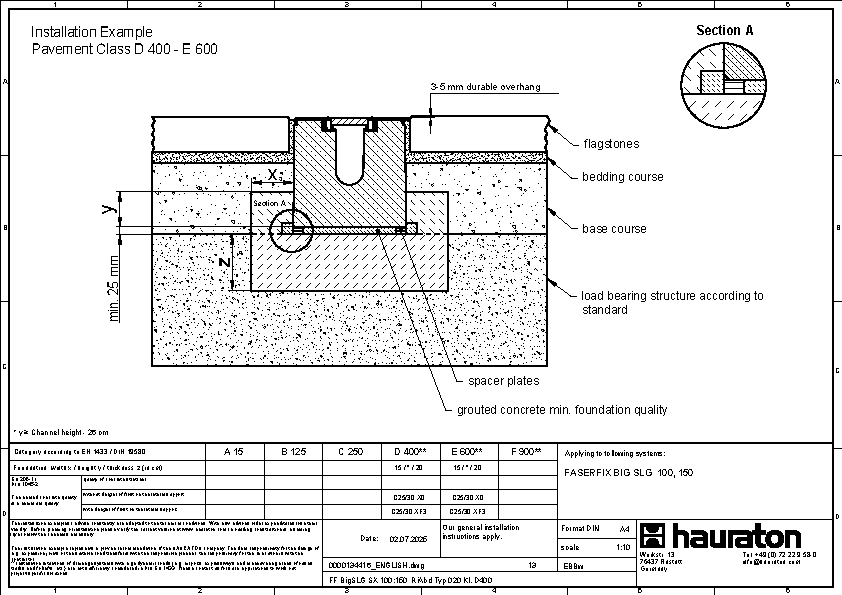

Pavement class D 400 - E 600,

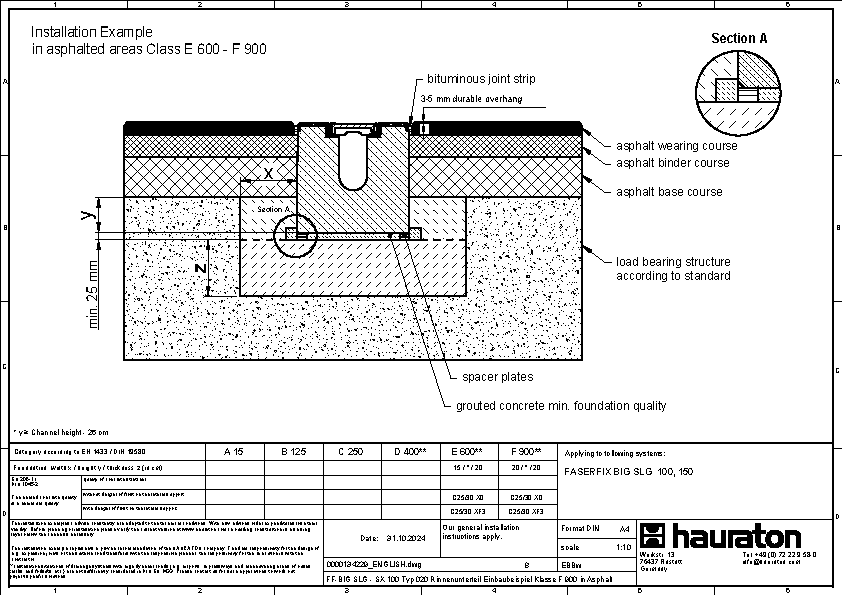

Asphalt class E 600 - F 900,

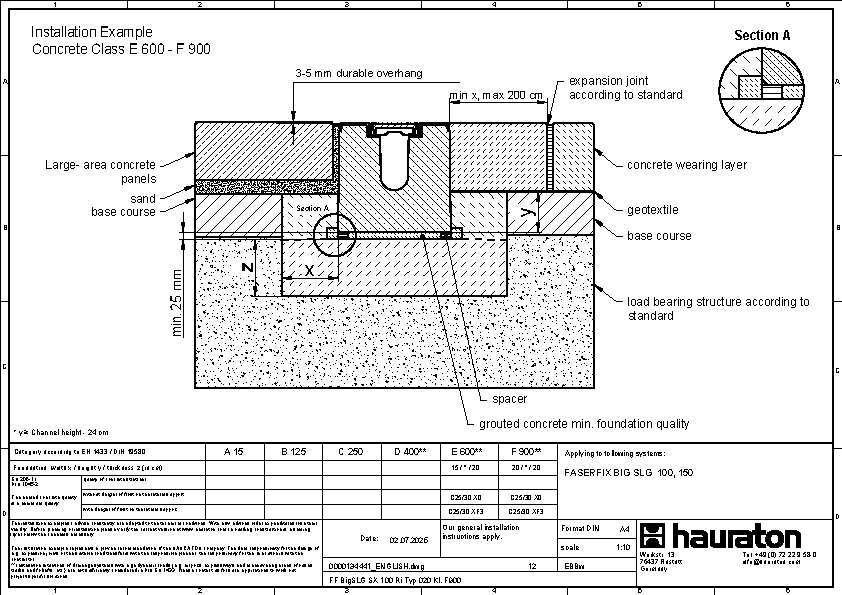

Concrete class E 600 - F 900,
Asphalt class D 400, Type I
Concrete class D 400, Type I
Pavement class D 400, Type I
Asphalt class D 400, as double strand
Concrete class D 400, as double strand
Pavement class D 400 - E 600, as double strand
Asphalt class E 600 - F 900, as double strand
Concrete class E 600 - F 900, as double strand
