Article No. 64799
FASERFIX BIG BL 300 with stainless steel angle housings, up to load class F 900
Type 021, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

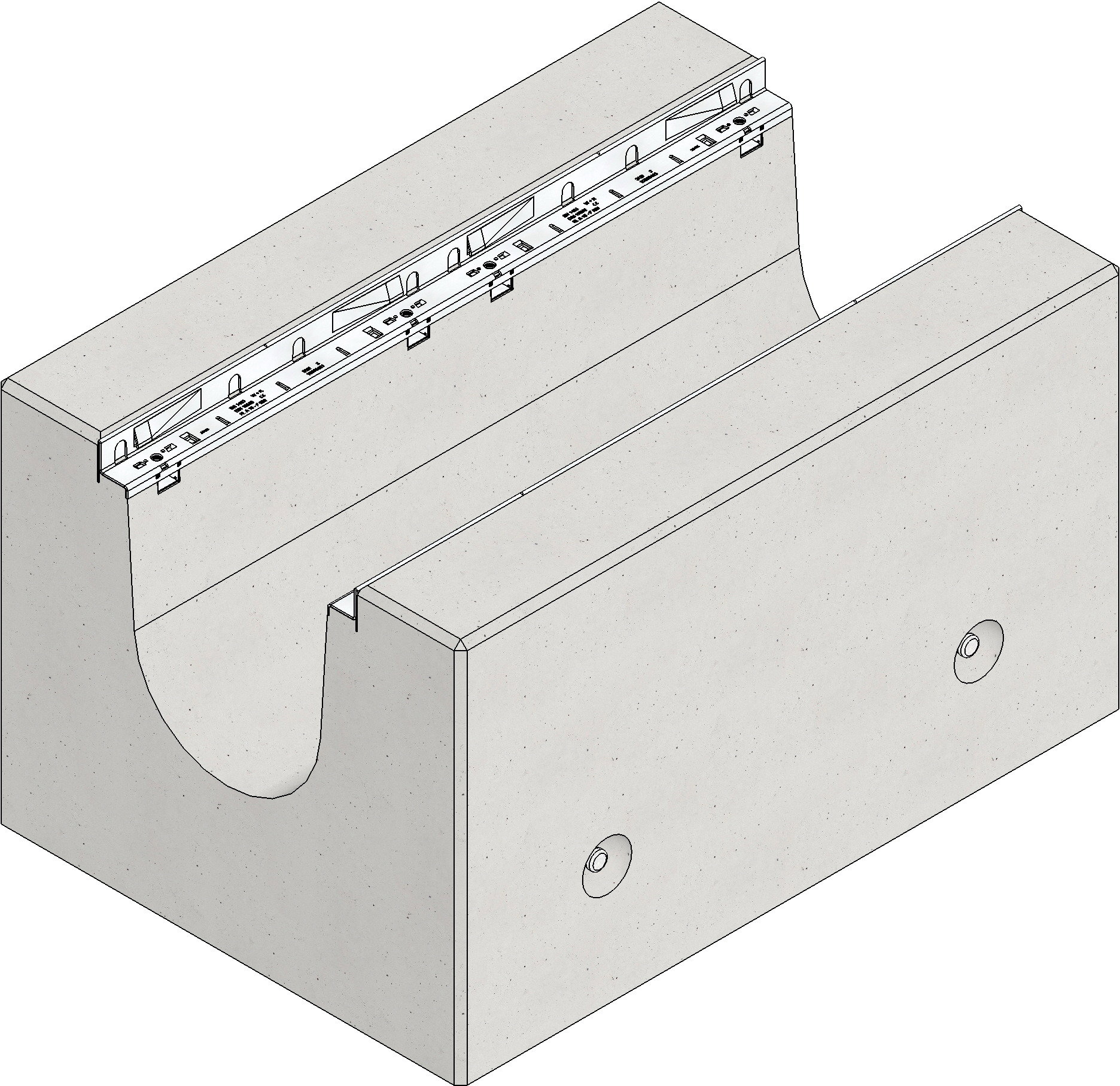

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
64799
Length
1000 mm
Width
700 mm
Height
575 mm
Weight
750.00 kg
Material
High performance concrete, Stainless steel 1.4301
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
812 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
High performance concrete
angle housing material
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX BIG BL 300 Channel body type 021 with edge frames made of stainless steel, 1 m
Product description
FASERFIX BIG BL 300 type 021 - Channel body made of steel-reinforced concrete C50/60, with edge frames made of stainless steel CNS 1.4301, with boltless quick-locking system SIDE-LOCK, stainless steel screw cap, 8-fold locking per metre, sealing groove, grating inlay depth 40 mm, load class A 15 - F 900 according to EN 1433, LxWxH 1000x700x575 mm, item no. 64799
Packaging unit
-
Tender Texts
Installation example
Asphalt class D 400,
Concrete class D 400,
Pavement class D 400 - E 600, as double strand
Pavement class D 400 - E 600,
Asphalt class E 600 - F 900,
Concrete class E 600 - F 900,
Asphalt class D 400, as double strand
Concrete class D 400, as double strand
Asphalt class E 600 - F 900, as double strand
Concrete class E 600 - F 900, as double strand
Asphalt class D 400, Type I
Concrete class D 400, Type I
Pavement class D 400, Type I
Asphalt class E 600 - F 900, Type I
Concrete class E 600 - F 900, Type I
