Article No. 22749
FASERFIX BIG BL 150 with ductile iron angle housings, up to load class F 900
Type 021, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

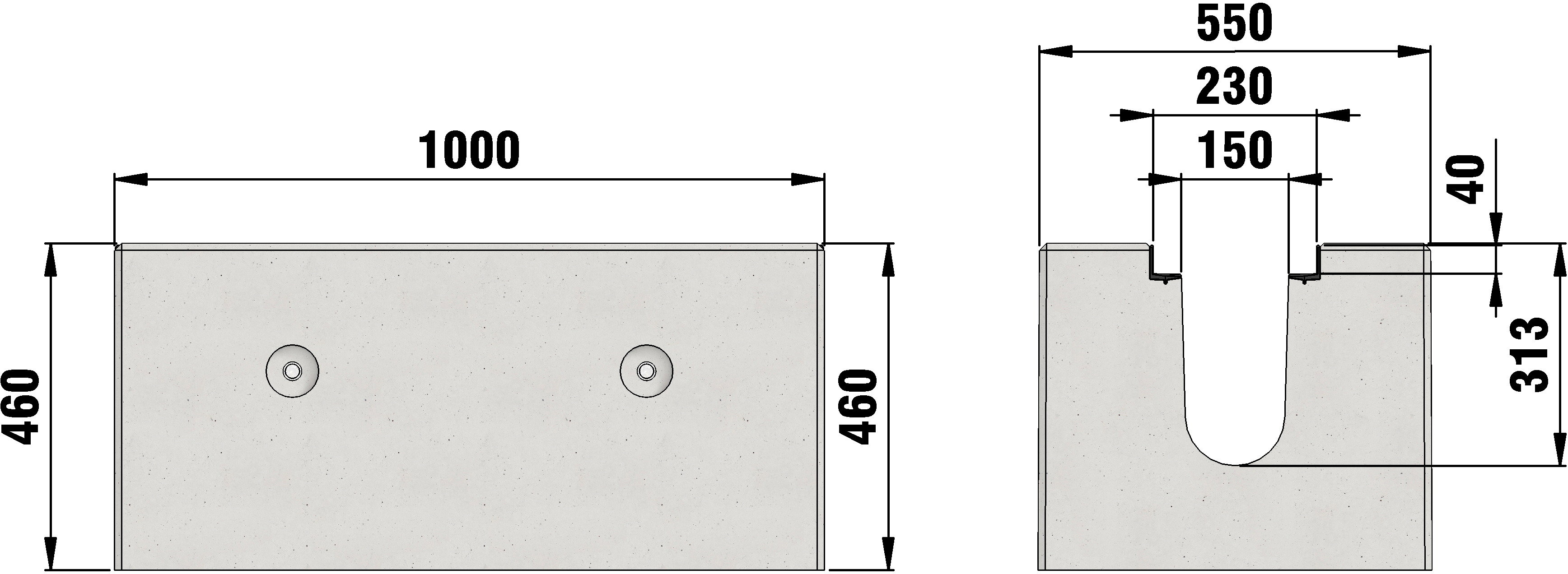

Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
22749
Length
1000 mm
Width
550 mm
Height
460 mm
Weight
500.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, High performance concrete
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
368 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
High performance concrete
angle housing material
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text

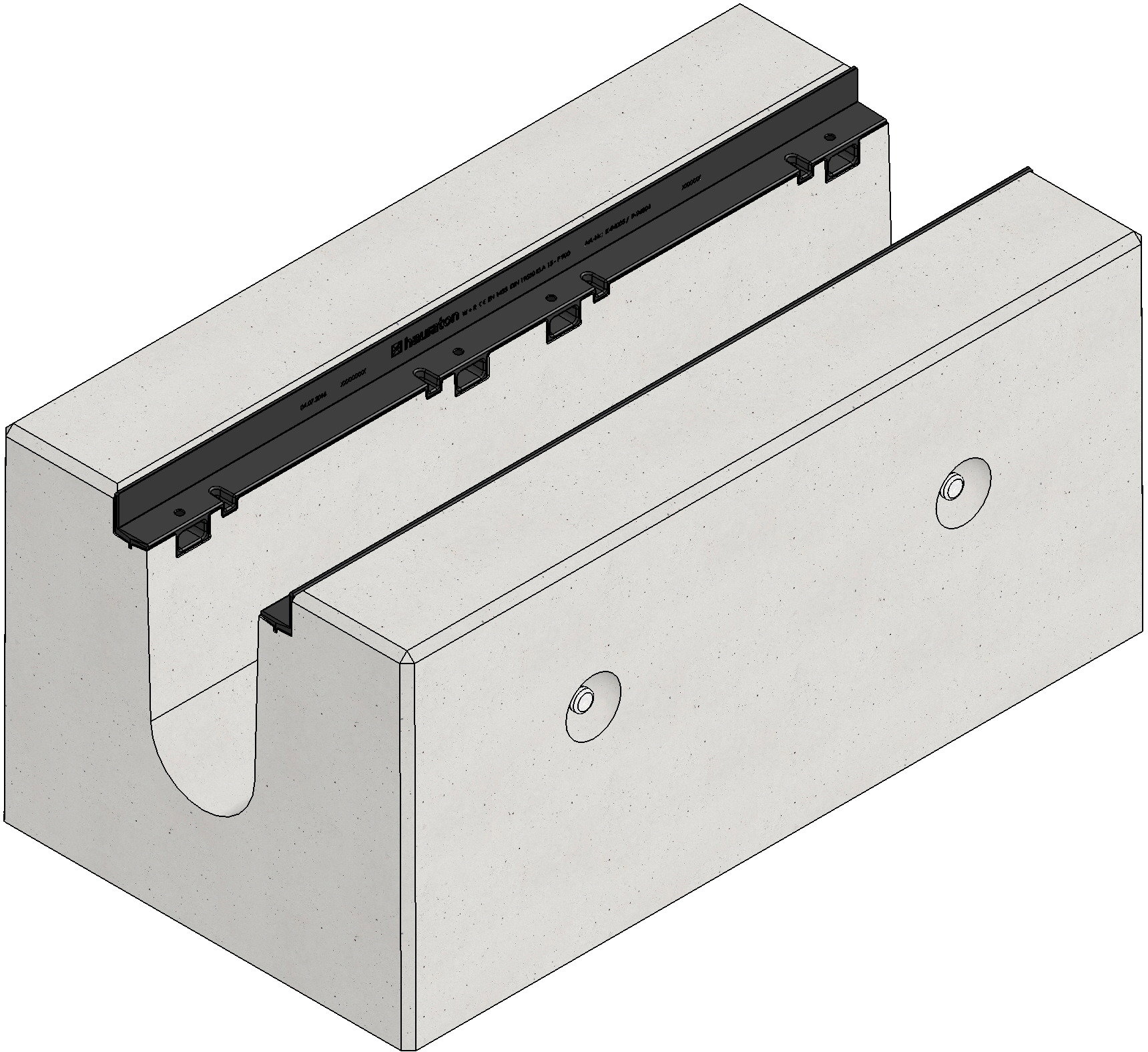

FASERFIX BIG BL 150 Channel body type 021 with edge frames made of KTL-coated ductile iron, 1 m
Product description
FASERFIX BIG BL 150 type 021 - Channel body made of steel-reinforced concrete C50/60, with edge frames made of KTL-coated ductile iron, stainless steel screw cap, 8-fold locking per metre, sealing groove, grating inlay depth 40 mm, load class A 15 - F 900 according to EN 1433, LxWxH 1000x550x460 mm, item no. 22749
