Article No. 22262
FASERFIX BIG BL 150, class E 600
Ductile iron grating, closed, black, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

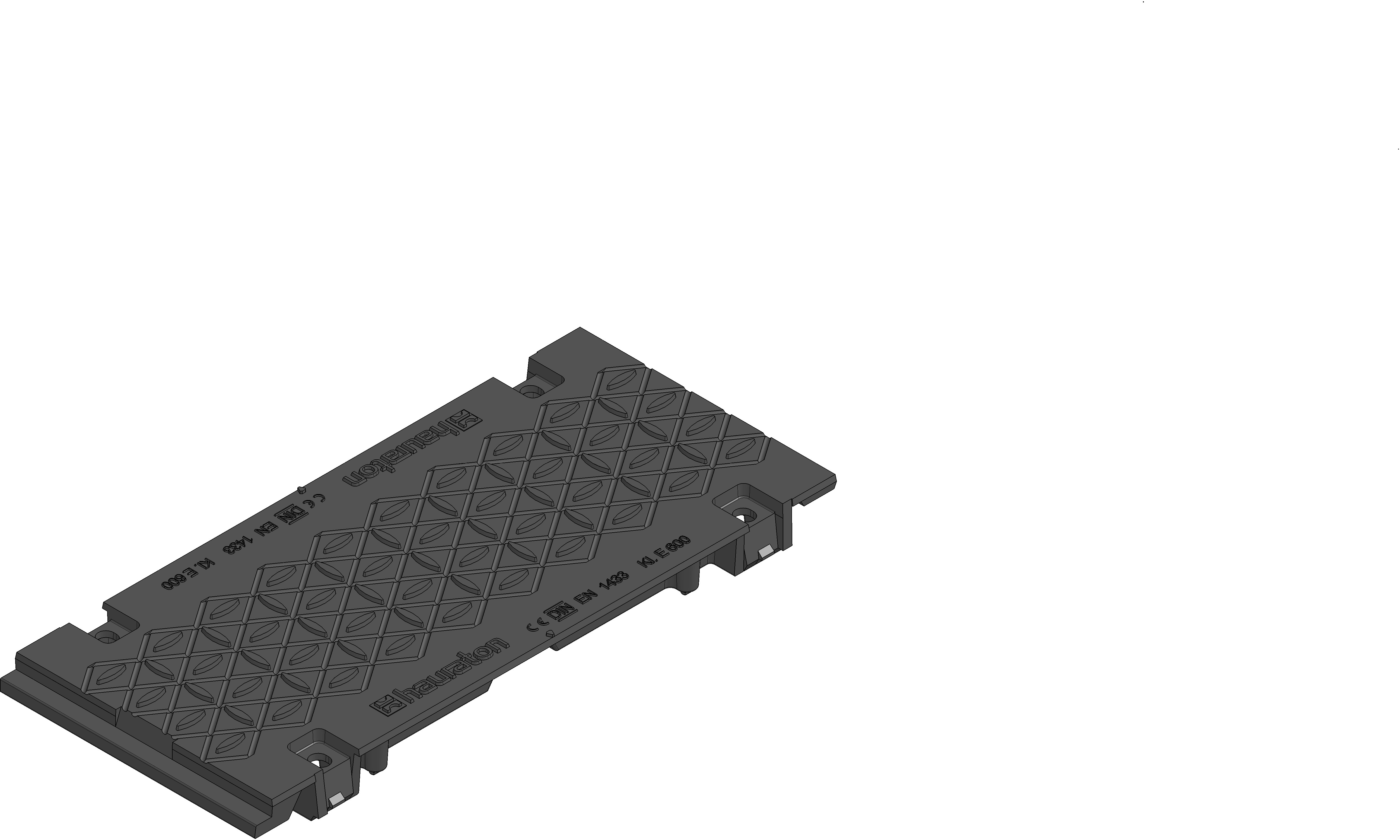

Product image

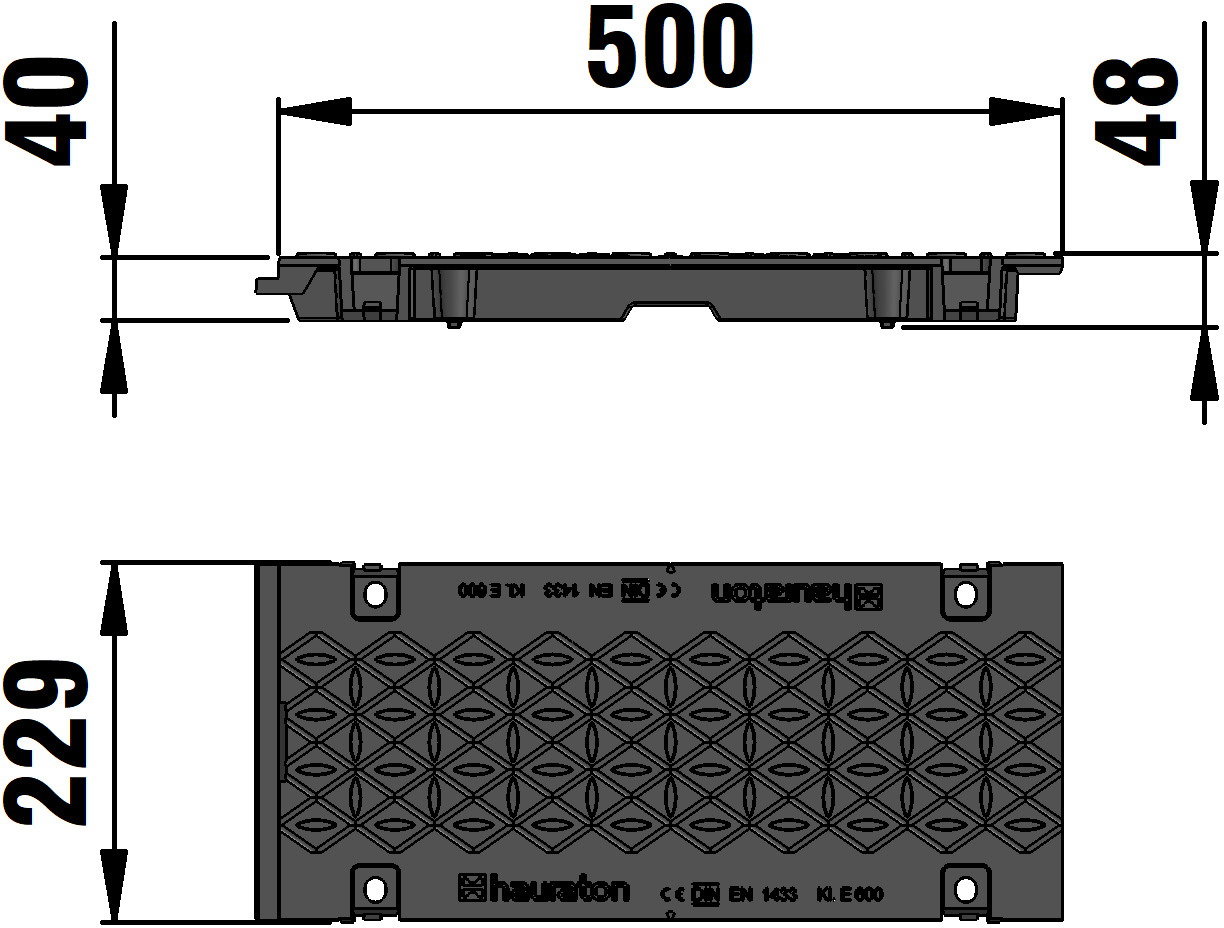

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
22262
Length
500 mm
Width
229 mm
Height
48 mm
Inlay depth
40 mm
Weight
10.65 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
150
Inlet opening
0 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, black, cl. E 600, FASERFIX SUPER 150, 0.5 m
Product description
FASERFIX SUPER 150 - Ductile iron grating closed, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 22262
Packaging unit
98
