FASERFIX BIG BL 100 with ductile iron angle housings, up to load class F 900
Type 021, 4.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

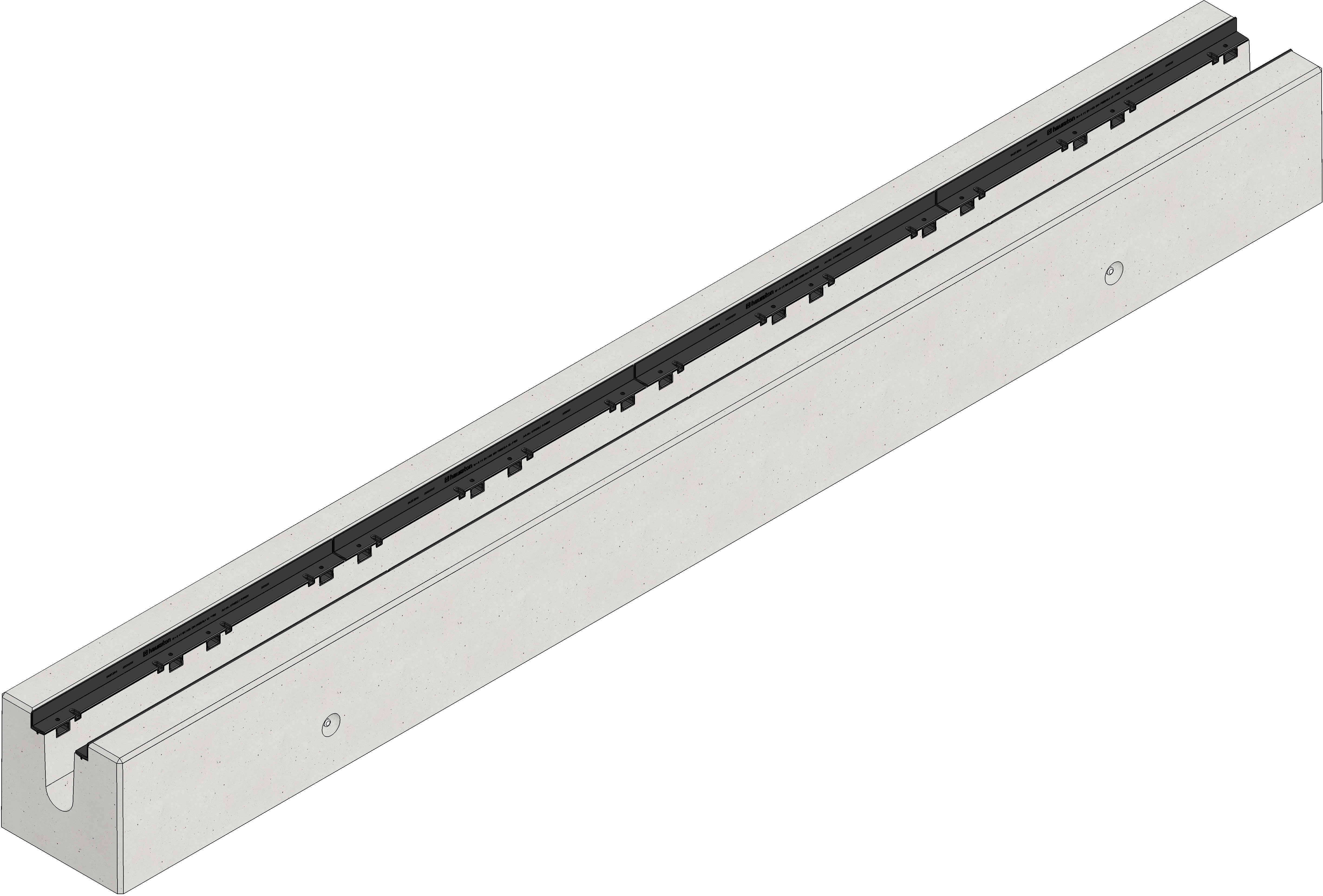

Product image

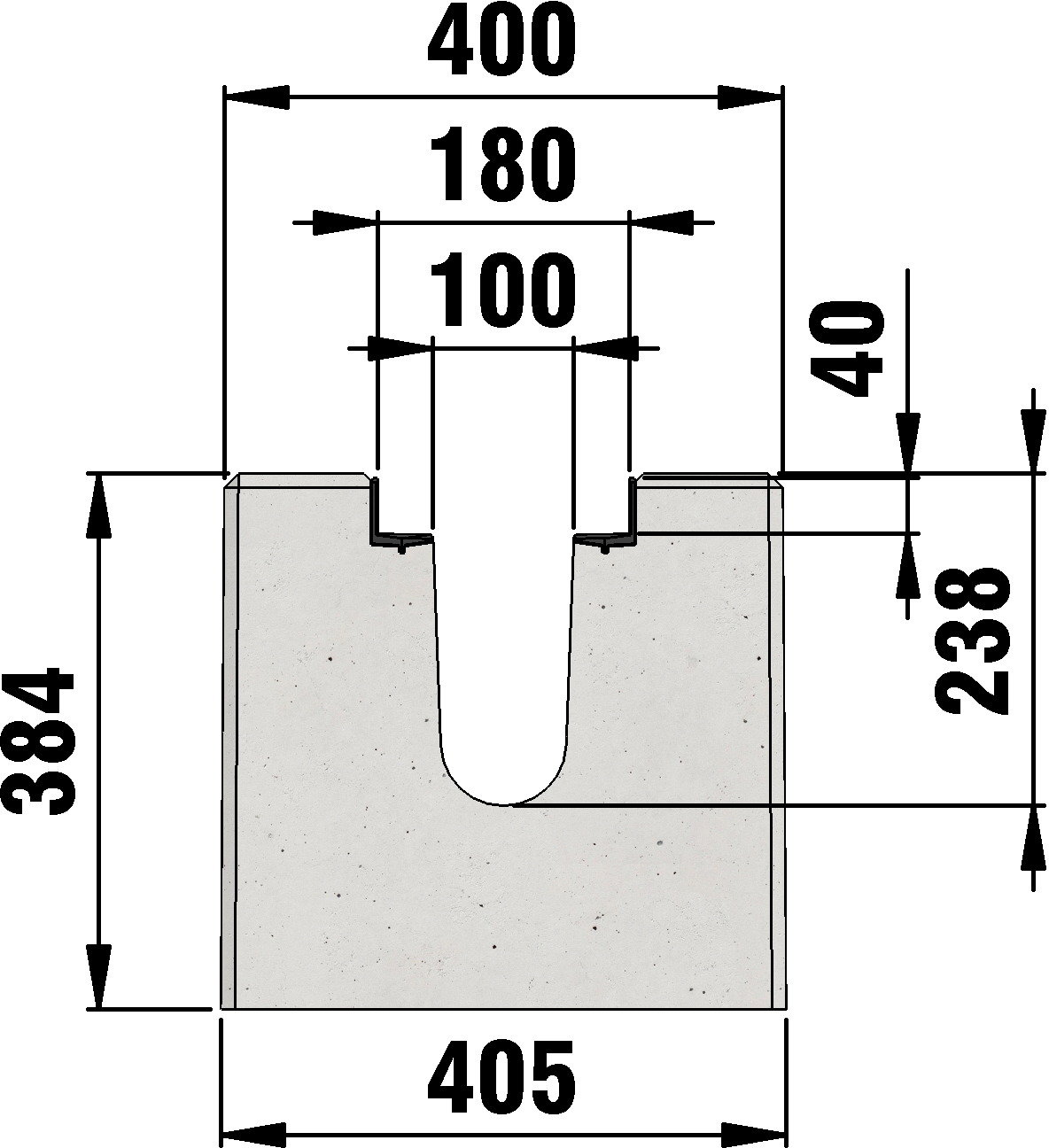

Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
21744
Length
4000 mm
Width
400 mm
Height
384 mm
Weight
1200.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, High performance concrete
Height of angle housing
40 mm
Nominal size
100
Internal channel cross-section
175 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
High performance concrete
angle housing material
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX BIG BL 100 Channel body type 021 with edge frames made of KTL-coated ductile iron, 4 m
Product description
FASERFIX BIG BL 100 type 021 - Channel body made of steel-reinforced concrete C50/60, with edge frames made of KTL-coated ductile iron, stainless steel screw cap, 8-fold locking per meter, sealing groove, grating inlay depth 40 mm, load class A 15 - F 900 according EN 1433, LxWxH 4000x400x384 mm, item no. 21744
