Article No. 88623
AQUAFIX HMC heavy metal separator
HMC 10
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

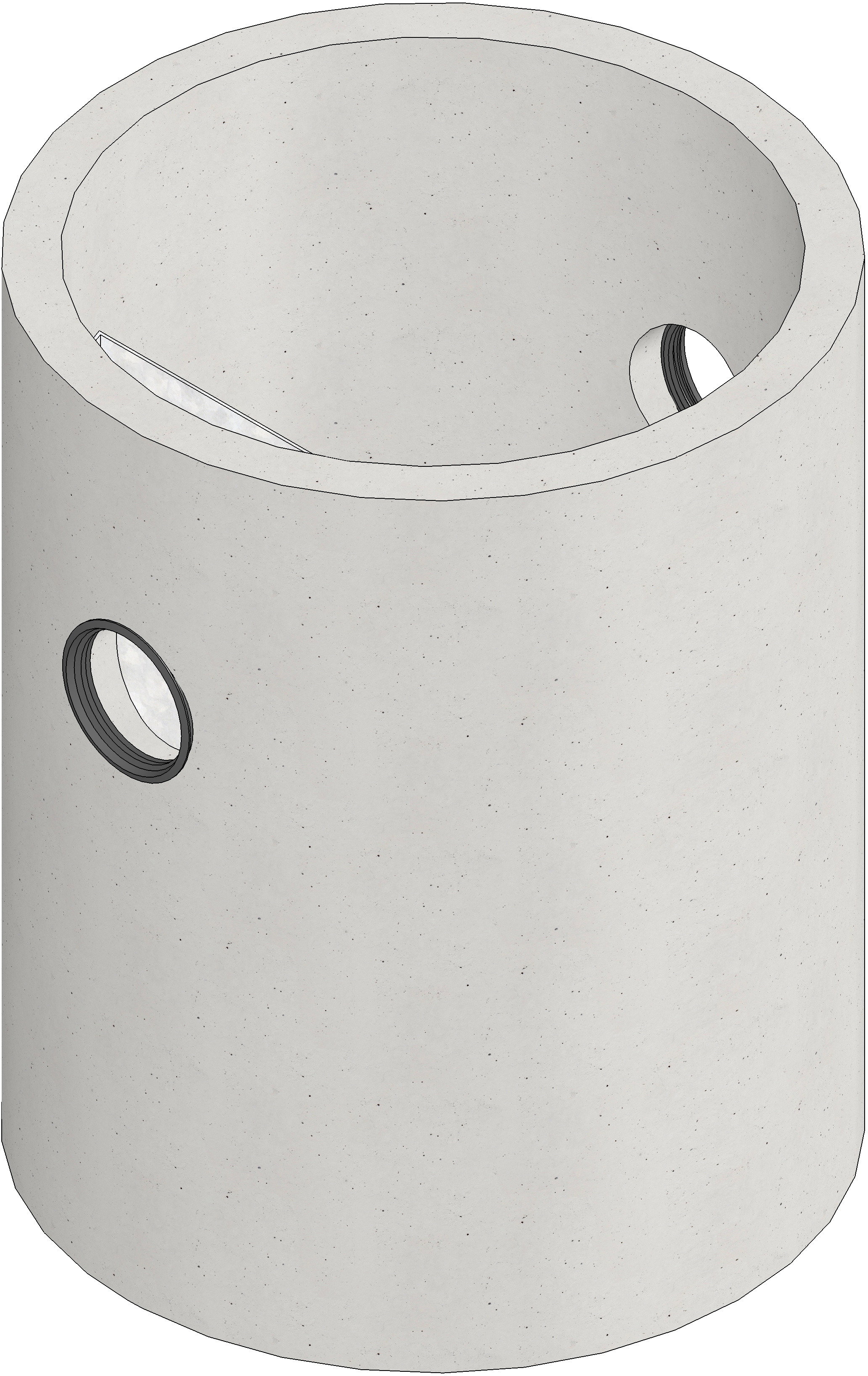

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

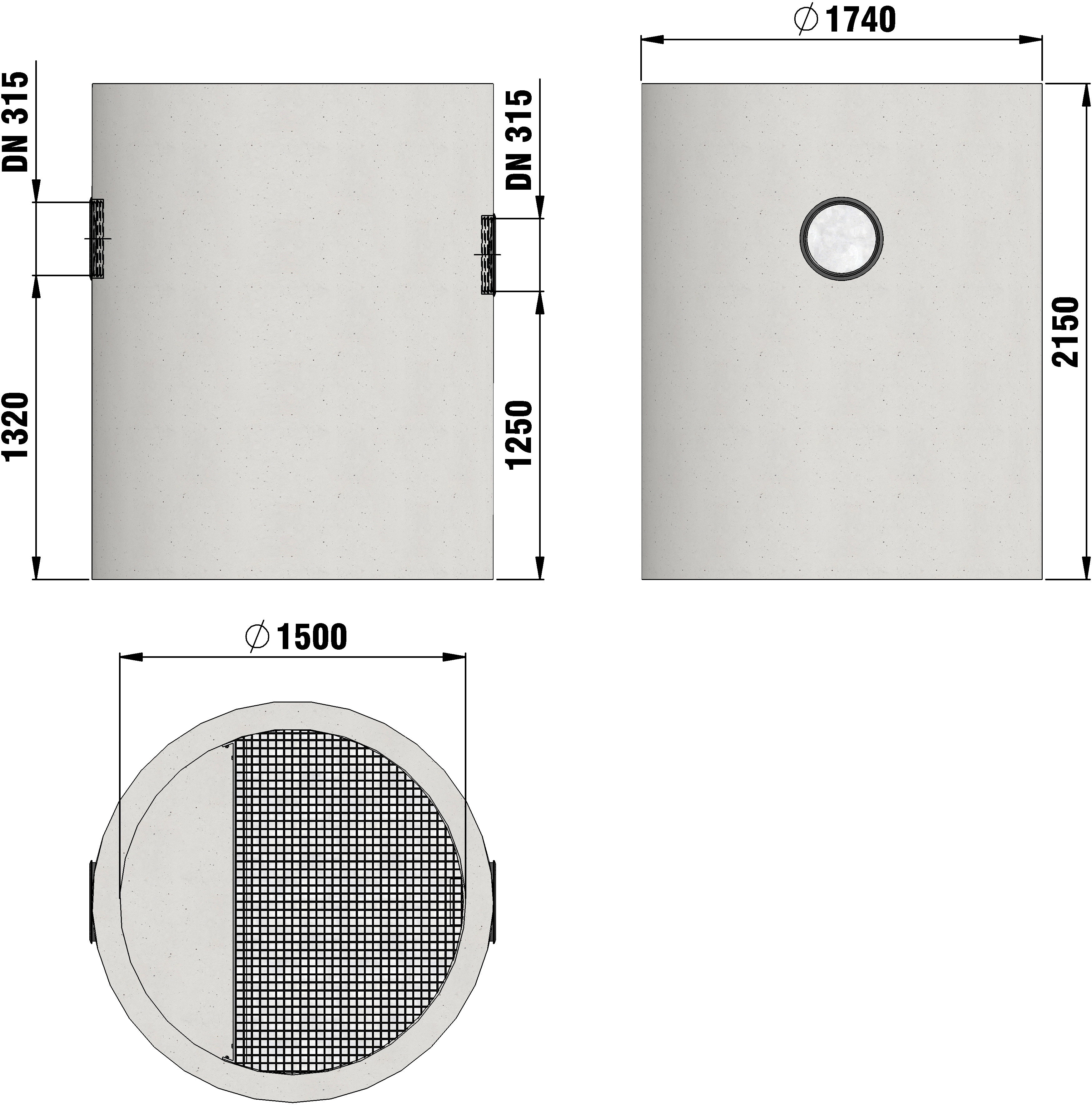

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
88623
Length
1740 mm
Width
1740 mm
External diameter
1740 mm
Height
2150 mm
Weight
7299.00 kg
Material
AQUAFIX Concrete, hot-dip galvanised steel
Nominal size
10.00 l/s
Bypass
without bypass
Flow performance
40.0 l/s
sludge trap capacity
-
Separator capacity
4421 l
DN in-/outlet
315 mm
HE height inlet
1320 mm
HA height outlet
1250 mm
DNE Manhole 1
625 mm
Sales text
AQUAFIX Heavy metal separator HMC 10, Linberg version, made of concrete
Product description
AQUAFIX Heavy metal separator HMC 10, Linberg version, made of concrete item no. 88623
Packaging unit
-
