Article No. 88622
AQUAFIX HMC heavy metal separator
HMC 08
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

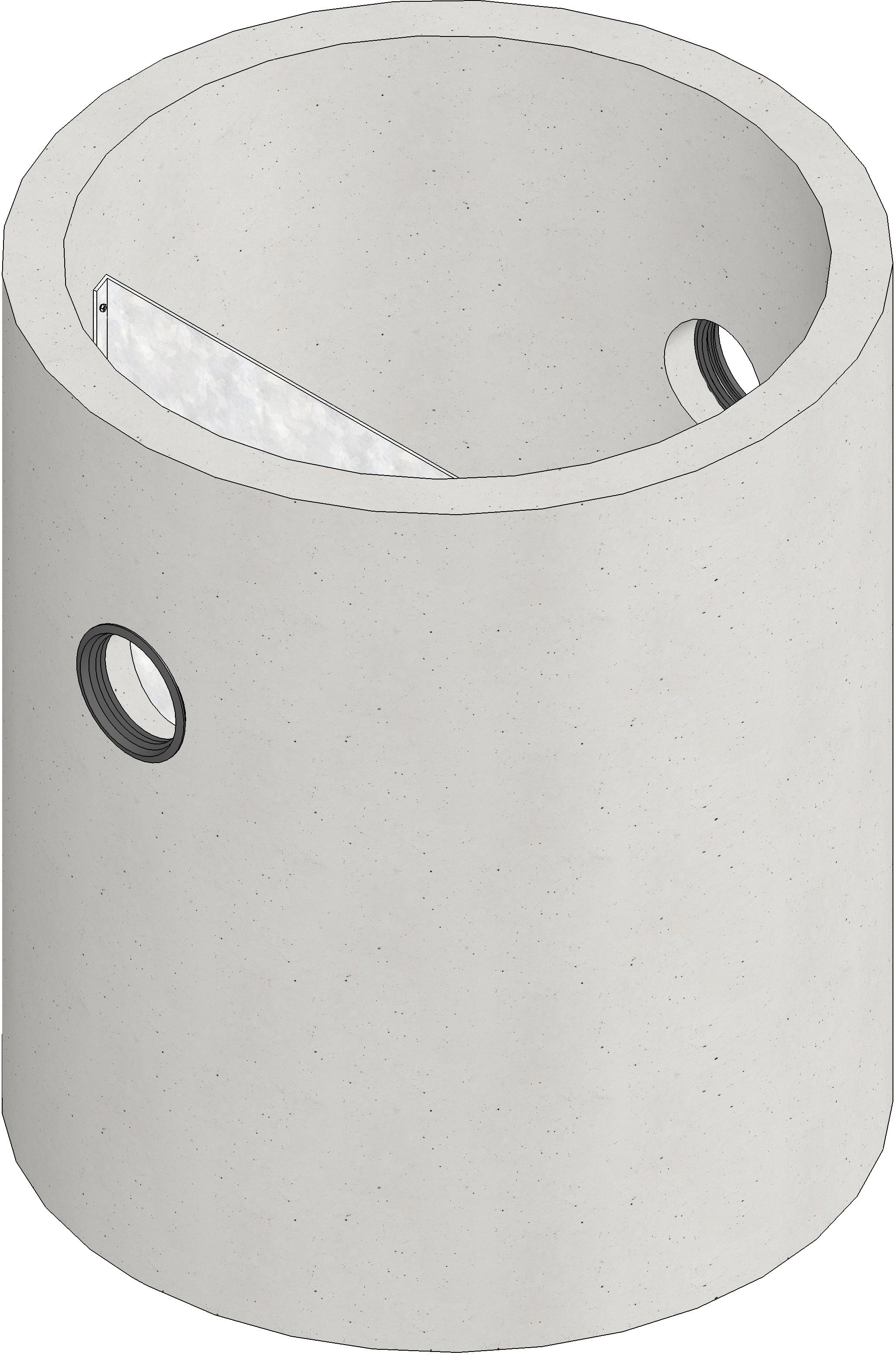

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

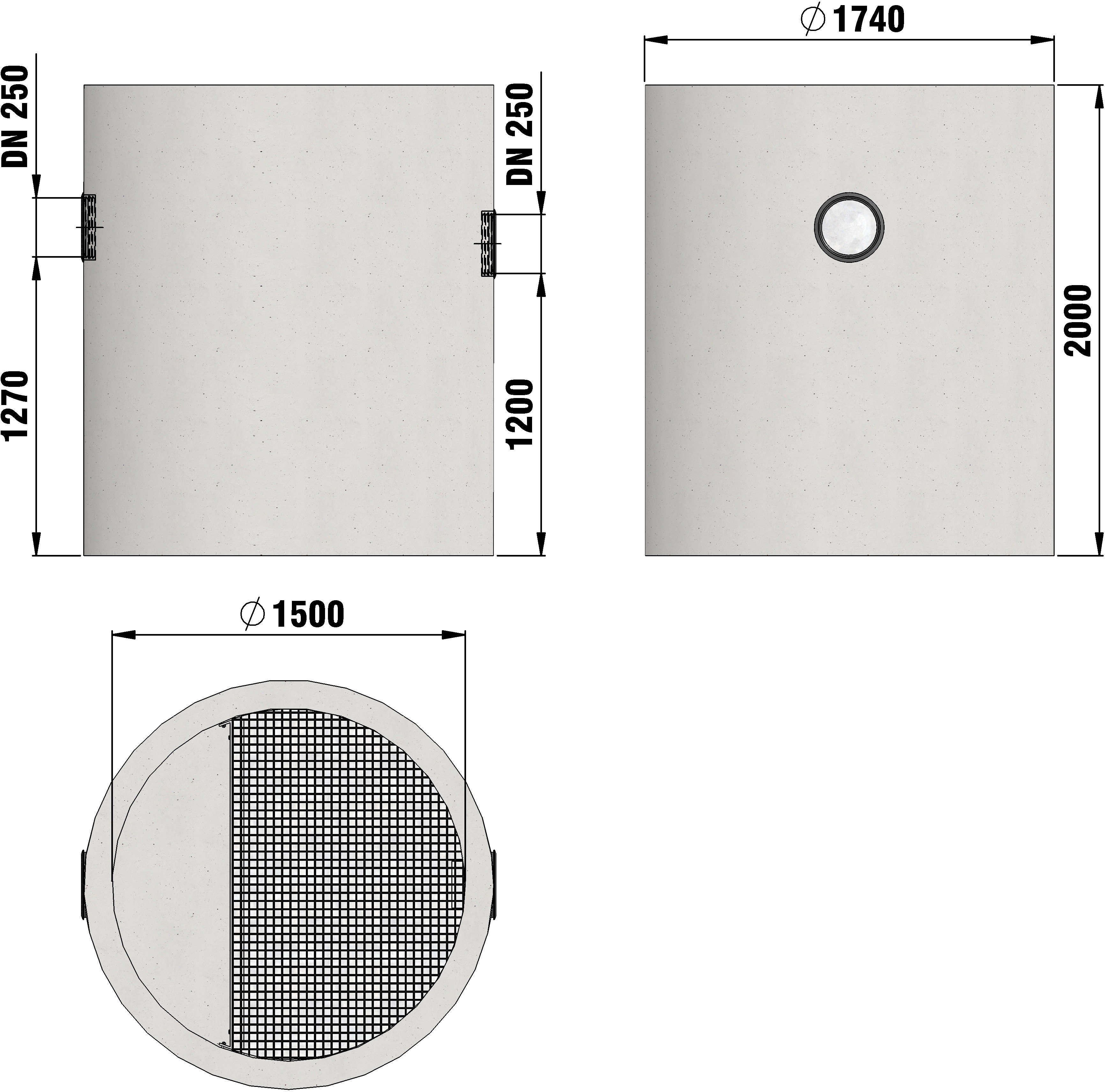

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
88622
Length
1740 mm
Width
1740 mm
External diameter
1740 mm
Height
2000 mm
Weight
7103.00 kg
Material
AQUAFIX Concrete, hot-dip galvanised steel
Nominal size
8.00 l/s
Bypass
without bypass
Flow performance
30.0 l/s
sludge trap capacity
-
Separator capacity
3268 l
DN in-/outlet
250 mm
HE height inlet
1270 mm
HA height outlet
1200 mm
DNE Manhole 1
625 mm
Sales text
AQUAFIX Heavy metal separator HMC 08, Linberg version, made of concrete
Product description
AQUAFIX Heavy metal separator HMC 08, Linberg version, made of concrete item no. 88622
Packaging unit
-
