Article No. 88620
AQUAFIX HMC heavy metal separator
HMC 03
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

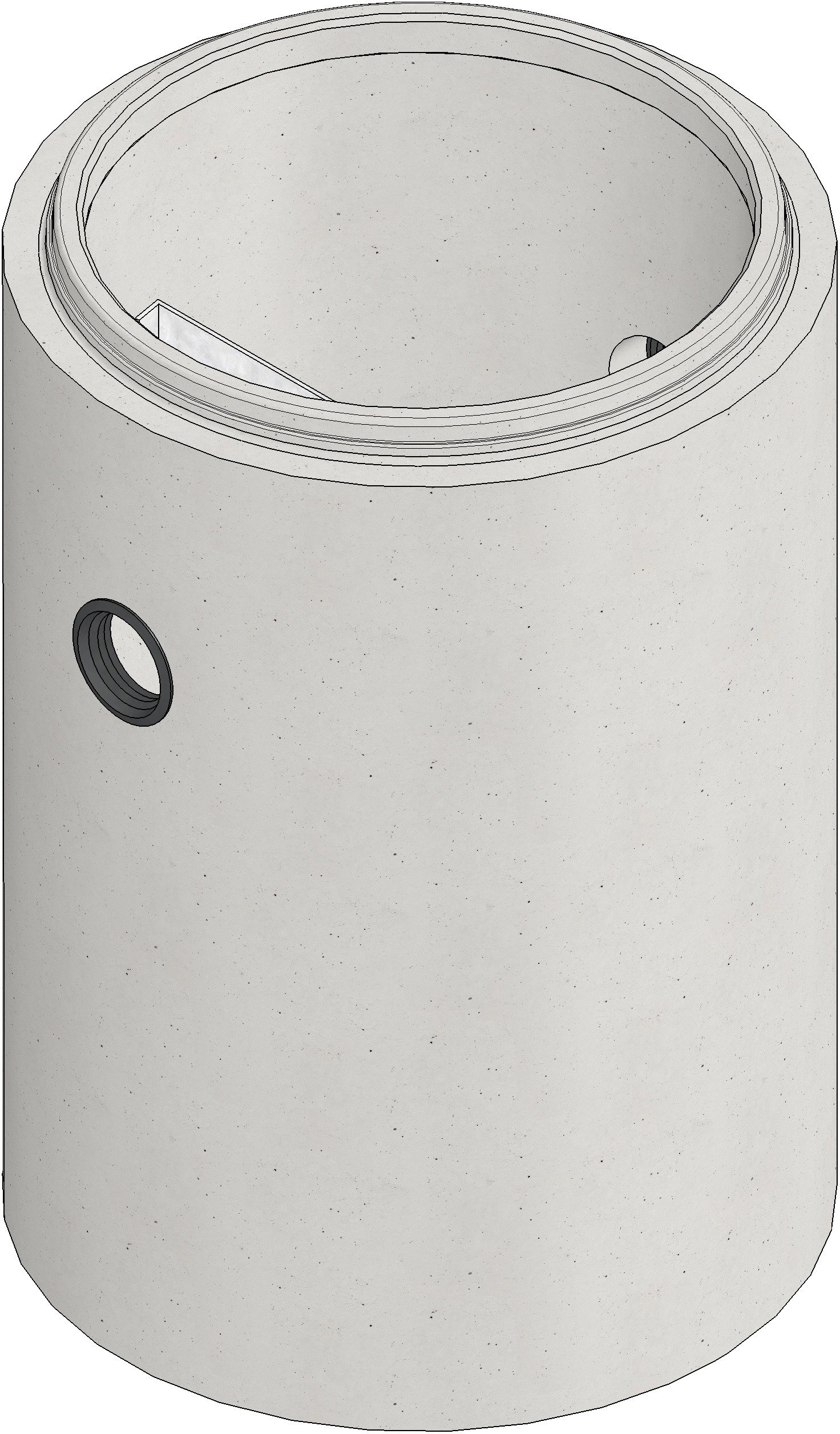

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

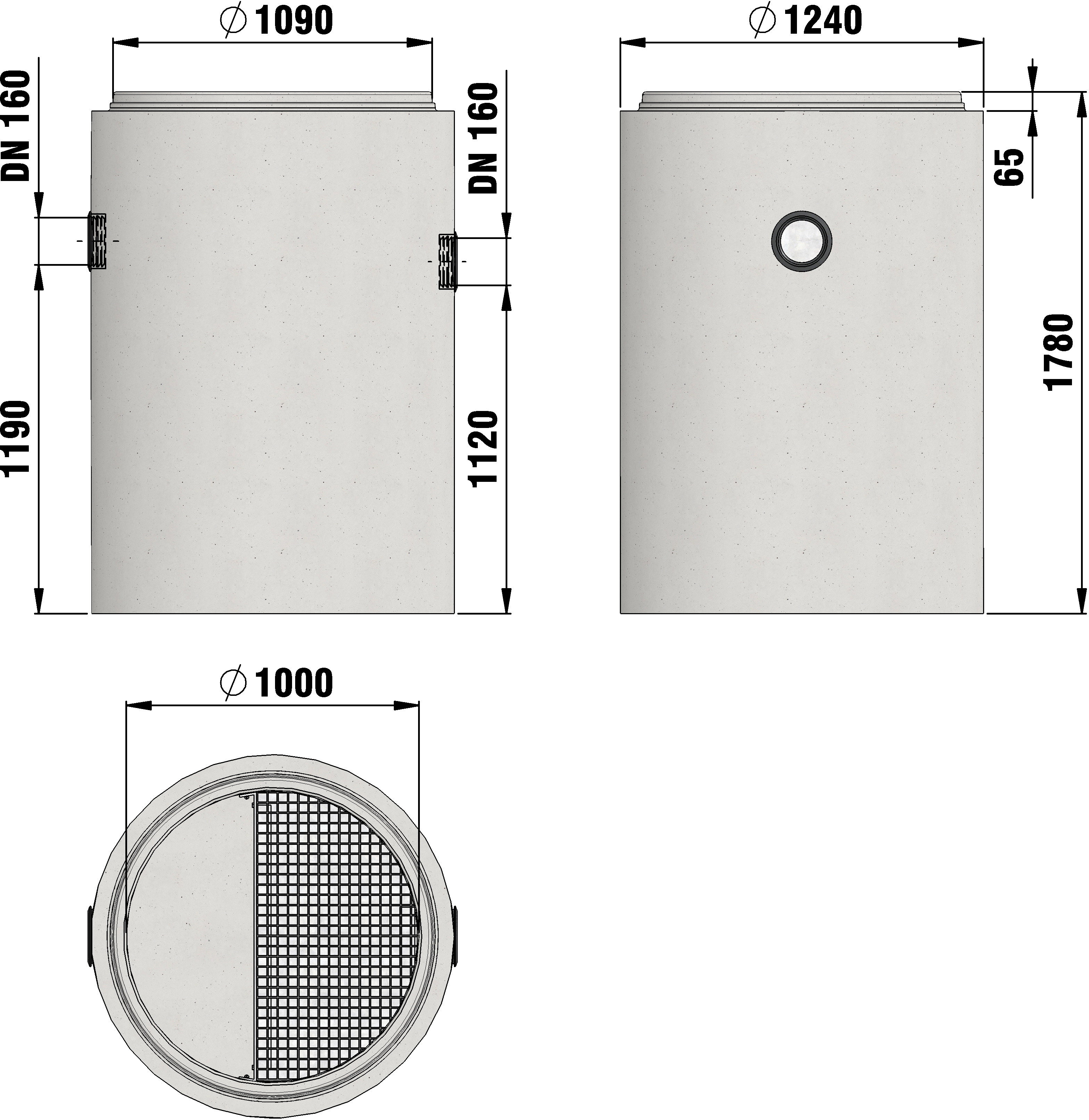

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
88620
Length
1240 mm
Width
1240 mm
External diameter
1240 mm
Height
1780 mm
Weight
3094.00 kg
Material
AQUAFIX Concrete, hot-dip galvanised steel
Nominal size
3.00 l/s
Bypass
without bypass
Flow performance
10.0 l/s
sludge trap capacity
-
Separator capacity
1280 l
DN in-/outlet
160 mm
HE height inlet
1190 mm
HA height outlet
1120 mm
DNE Manhole 1
625 mm
Sales text
AQUAFIX Heavy metal separator HMC 03, Linberg version, made of concrete
Product description
AQUAFIX Heavy metal separator HMC 03, Linberg version, made of concrete item no. 88620
Packaging unit
-
