Article No. 33453
sump unit
for system size up to type 8000, with all-round edge frame made of galvanised steel, with ductile iron grating, 3x SW 140/20 mm, KTL -coated, with sealing, class E 600

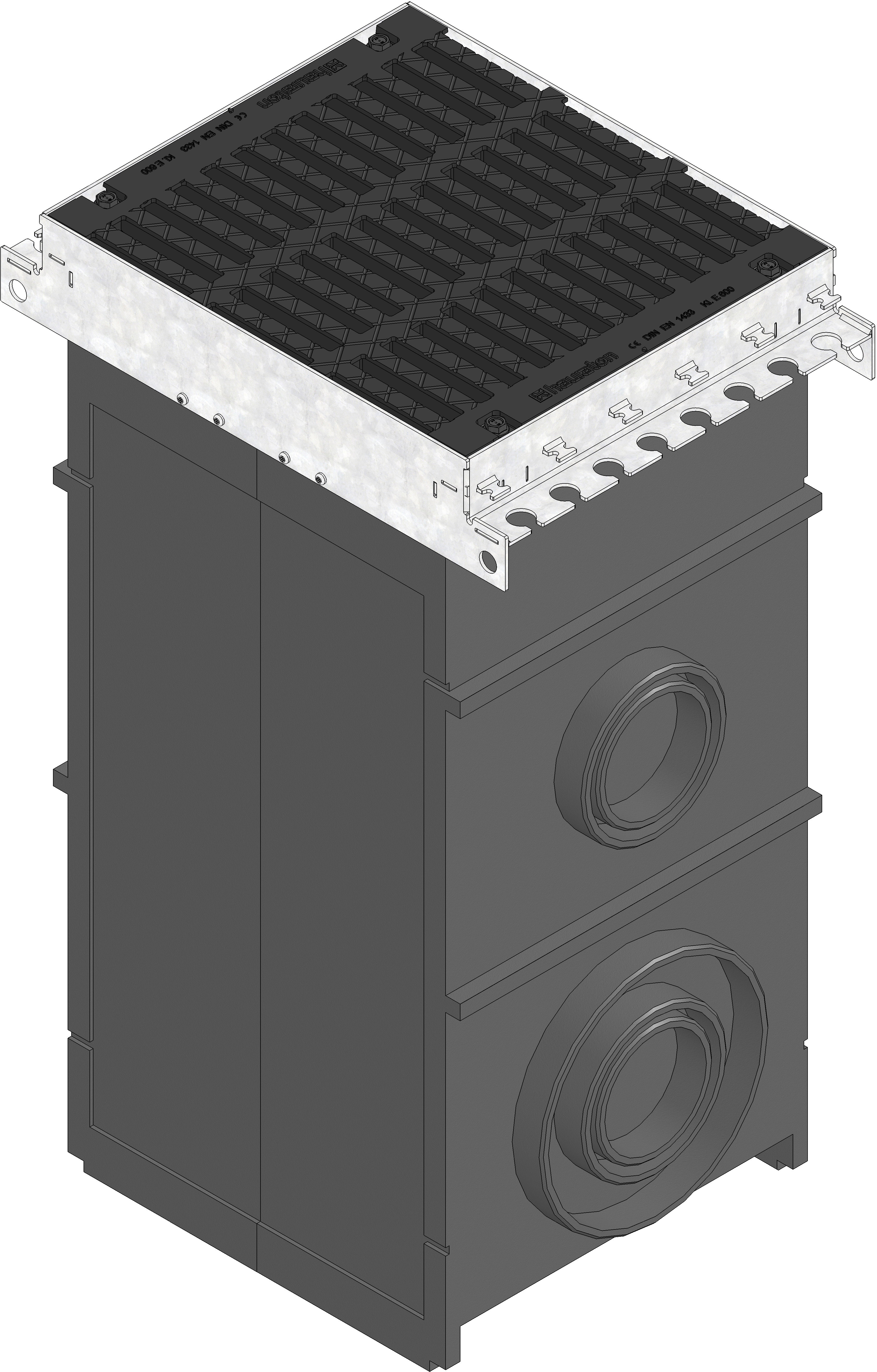

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
33453
Length
510 mm
Width
590 mm
Height
1116 mm
Inlay depth
40 mm
Weight
101.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled polyolefin, Steel 8.8 zinc-laminated black
Intake cross-section
2059.0 cm²/m
Nominal size
1000, 2000, 3000, 5000, 8000
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frame made of galvanised steel, with ductile iron grating, 3x SW 140/20 mm, KTL-coated, cl. E 600, with sealing, RECYFIX HICAP 1000/2000/3000/5000/8000, 0.51 m
Product description
RECYFIX HICAP 1000/2000/3000/5000/8000 - Sump unit made of recycled polyolefin, according to EN 1433, CE compliant, with all-round edge frame made of galvanised steel, with ductile iron grating 3x SW 140/20 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, load class A 15 - E 600 according to EN 1433, with sealing, 4-fold locking, 2-sided connection possibility (on the sides DN/ OD 160/200/315), for connection of RECYFIX HICAP channels, LxWxH 510x590x1116 mm, item no. 33453
Packaging unit
2
