Article No. 12123
sump unit for partial flow treatment
for NW 300, 2-part, for partial flow treatment, with PVC-U socket DN/OD 200 in flow direction right, with all-round edge frame made of galvanised steel, with silt bucket made of galvanised steel, 0.51 m

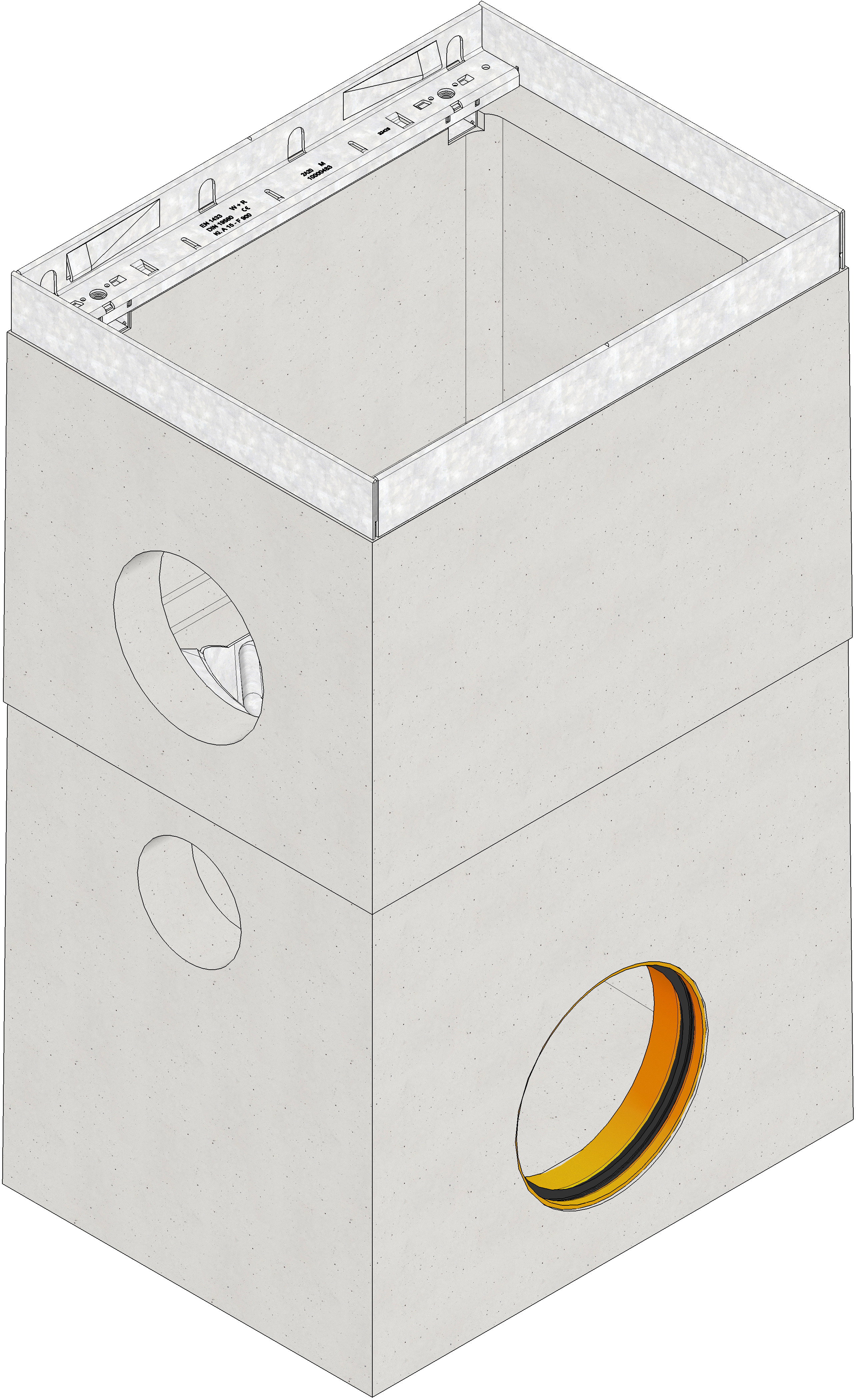

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12123
Length
510 mm
Width
390 mm
Height
850 mm
Weight
180.64 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
300
Sales text
Sump unit, 2-part, for partial flow treatment, with PVC-U socket DN/OD 200 in flow direction right, on the front side with opening DN/OD 160 for PVC-U pipe outlet of the overflow, with all-round edge frame made of galvanised steel, with silt bucket made o
Product description
DRAINFIX CLEAN FSU 300 - Sump unit, 2-part, for partial flow treatment, on the front side with opening DN/OD 160 for PVC-U bent of the overflow, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with all-round edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200 in flow direction right, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types DRAINFIX CLEAN FSU 300, LxWxH 510x390x850 mm, item no. 12123
Packaging unit
-
