Article No. 97564
sump unit
for NW 500, 2-part, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, with ductile iron grating closed, KTL-coated, class E 600, 1.0 m

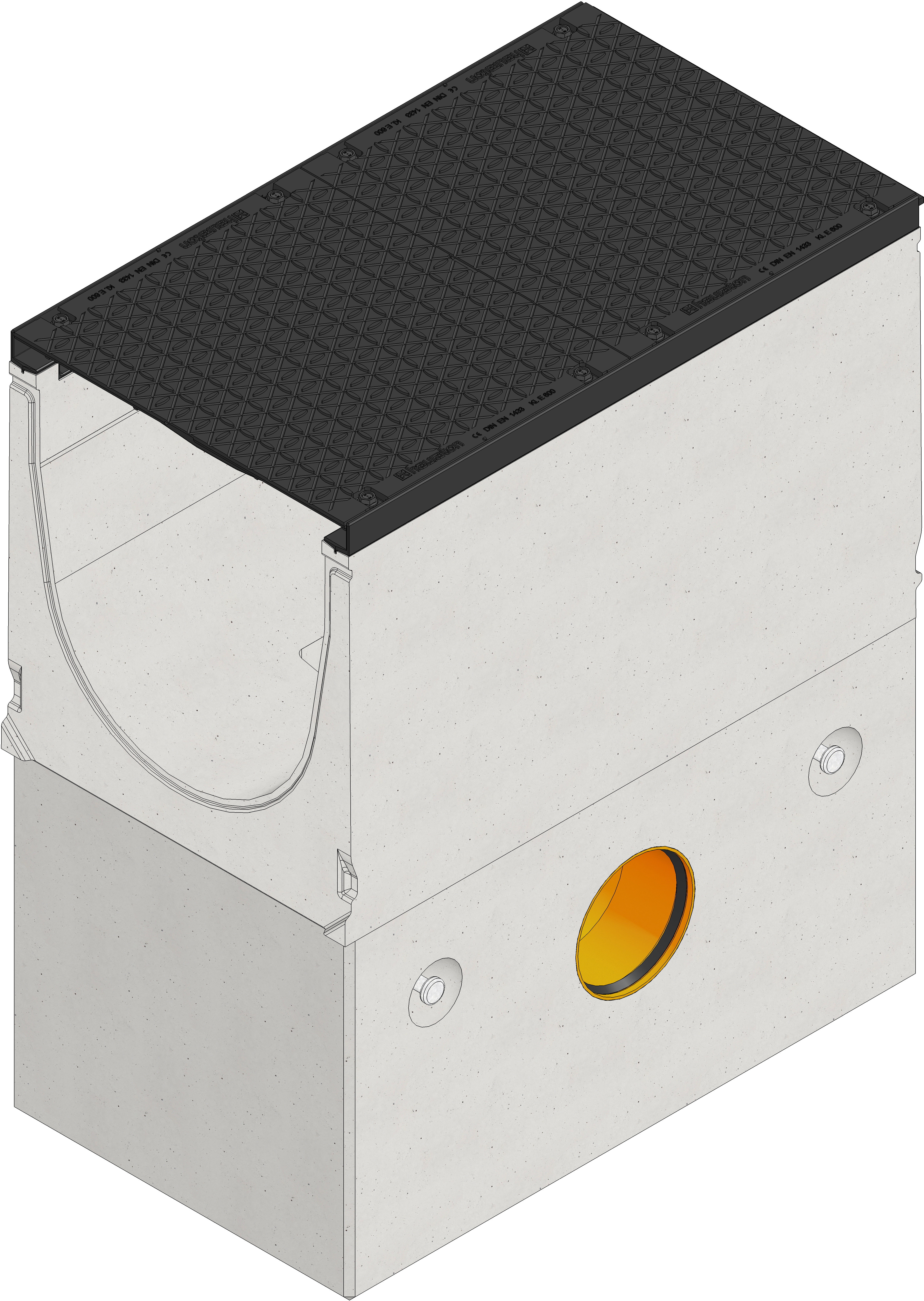

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
97564
Length
1000 mm
Width
590 mm
Height
1180 mm
Weight
1109.62 kg
Material
Ductile iron GJS 500-7, Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete, RECYFIX Material (PP virgin material), Steel 8.8 zinc-laminated black
Nominal size
500
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433
Sales text
Sump unit, 2 parts, with edge frames made of KTL-coated ductile iron, with ductile iron grating closed, KTL-coated, cl. E 600, with silt bucket made of galvanised steel DRAINFIX CLEAN FSU 500, 1 m
Product description
DRAINFIX CLEAN FSU 500 - Sump unit, 2-part, made of fibre-reinforced concrete, with edge frames made of KTL-coated ductile iron, with removable silt bucket made of galvanised steel, one-sided connection possibility (lateral) with integrated PVC-U socket DN/OD 200, with ductile iron grating, closed, KTL-coated, made of spheroidal ductile iron EN-GJS-500-7 load class A 15 - E 600 according to EN 1433, with longitudinal slide protection, 4-fold locking, for both-sided connection of DRAINFIX CLEAN FSU 500 type 01, 8-fold bolting per metre LxWxH 1000x590x1180 mm, item no. 97564
Packaging unit
-
