Article No. 10720
sump unit
for NW 300, for Type 020, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with opening Ø 282 mm in top part, 0.5 m

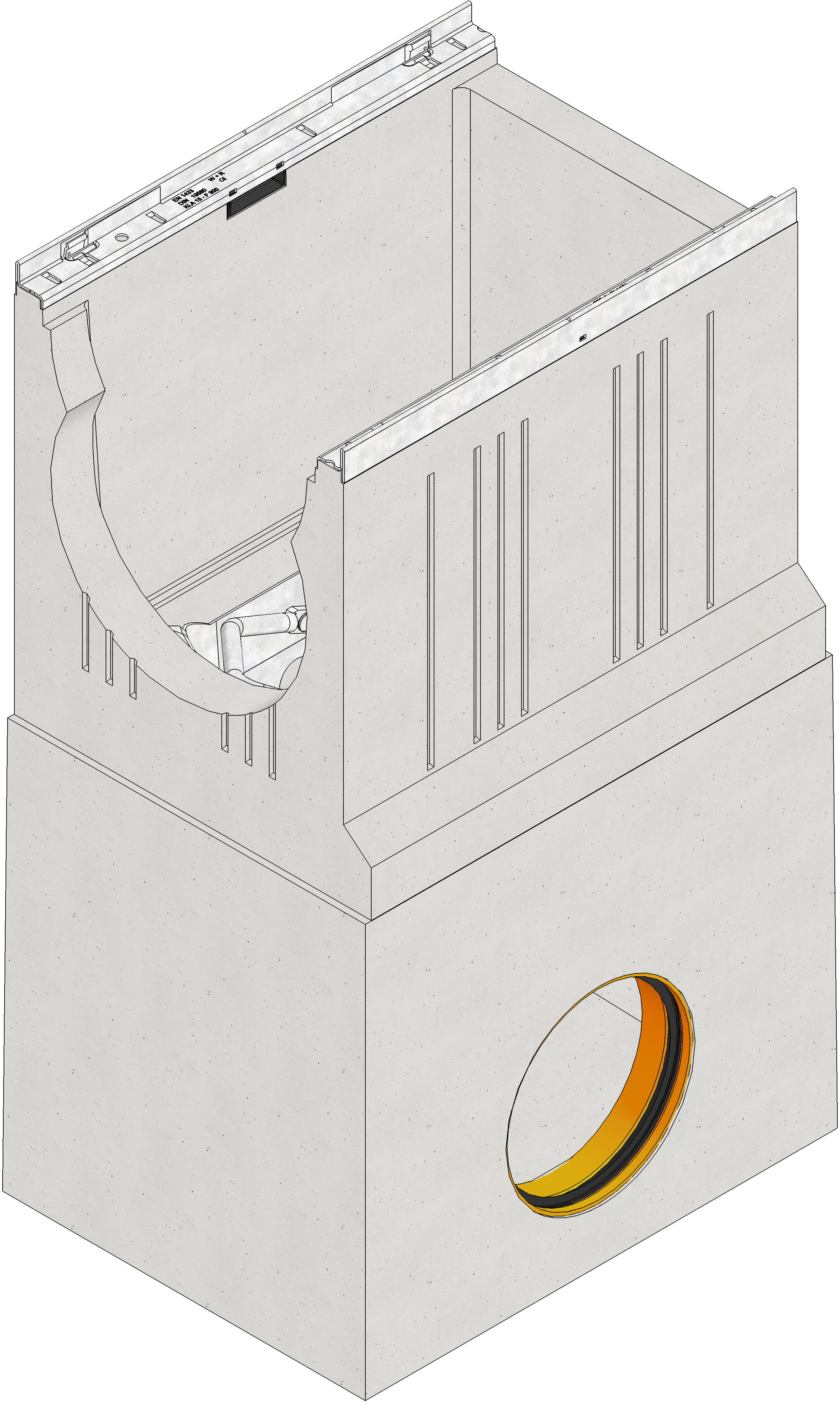

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10720
Length
500 mm
Width
360 mm
Height
881 mm
Weight
162.89 kg
Material
fibre-reinforced concrete, hot-dip galvanised steel, strip galvanized steel
Nominal size
300
Sales text
Sump unit type 020, 2 parts, with edge frames made of galvanised steel, with silt bucket made of galvanised steel, with 2 openings Ø 282 mm in top part for connection of channel FASERFIX KS 300 type 020, 0.5 m
Product description
FASERFIX KS 300 type 020 - Sump unit, 2 parts, made of fibre-reinforced concrete, with 2 openings Ø 282 mm in Top part for connection of channel FASERFIX KS 300 type 020, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, LxWxH 500x360x881 mm, item no. 10720
Packaging unit
-
