Article No. 97364
sump unit
for NW 300, 2-part, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, with ductile iron grating closed, black, class E 600, 0.51 m

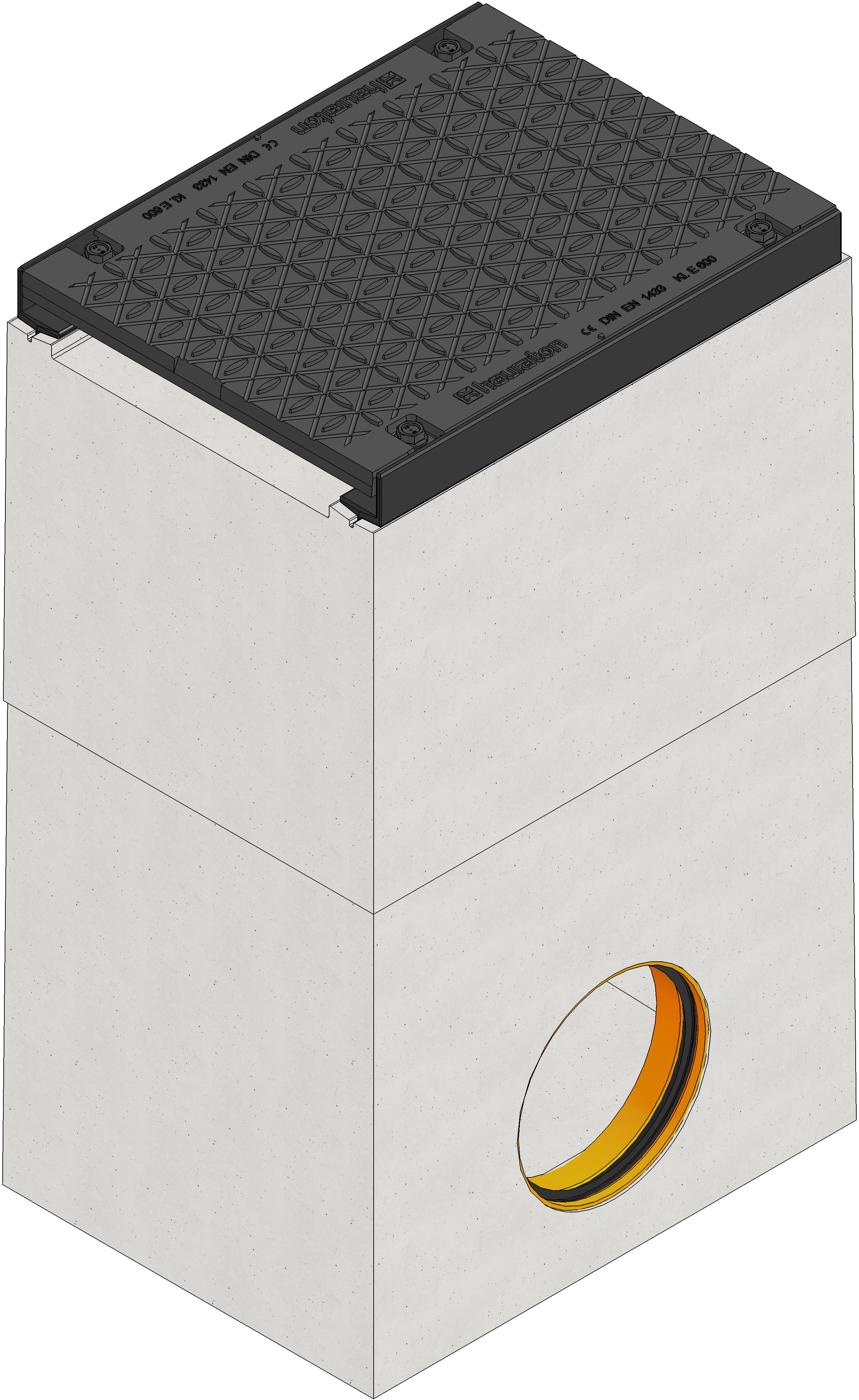

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
97364
Length
510 mm
Width
390 mm
Height
850 mm
Weight
207.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
300
Regulations
EN 1433
Sales text
Sump unit, 2-part, with edge frames made of KTL-coated ductile iron, with ductile iron grating closed, black, cl. E 600, with silt bucket made of galvanised steel, DRAINFIX CLEAN FSU 300, 0.51 m
Product description
DRAINFIX CLEAN FSU 300 - Sump unit, 2-part, made of fibre-reinforced concrete, with edge frames made of KTL-coated ductile iron, one -sided connection possibility (lateral) with integrated PVC-U socket DN/OD 200, with removable silt bucket, made of galvanised steel , with ductile iron grating, closed, made of spheroidal ductile iron EN-GJS-500-7, black, load class A 15 - E 600 according to EN 1433, with longitudinal slide protection, 4-fold locking, for both-sided connection of all channel types DRAINFIX CLEAN FSU 300, 4-fold bolting per 0.51 m-piece, LxWxH 510x390x850 mm, item no. 97364
Packaging unit
-
