Article No. 14054
sump unit
for NW 300, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with PVC-U pipe DN/OD 200, 0.5 m

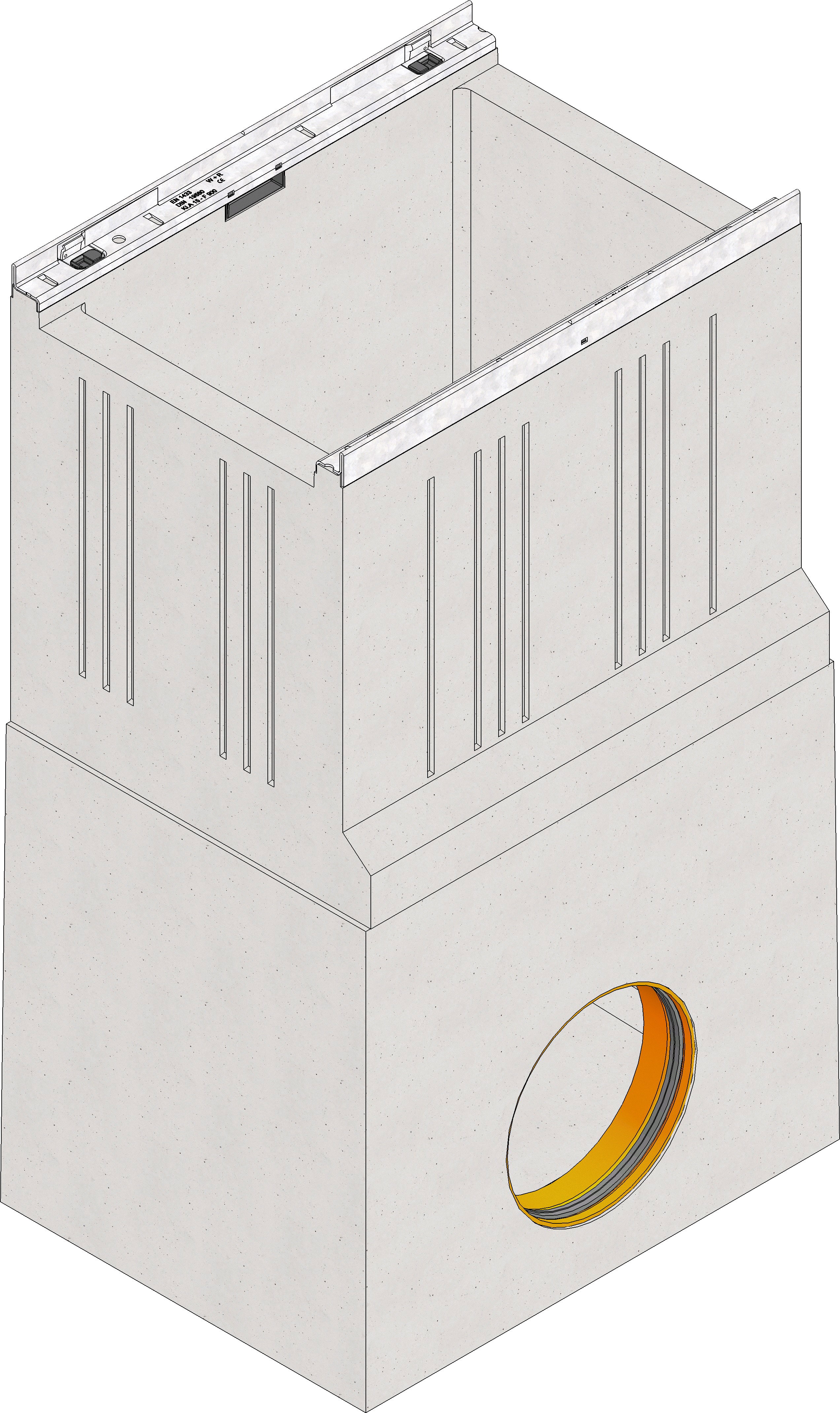

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
14054
Length
500 mm
Width
360 mm
Height
881 mm
Weight
178.50 kg
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of galvanised steel, with silt bucket made of galvanised steel, FASERFIX KS 300, 0.5 m
Product description
FASERFIX KS 300 - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating , 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types FASERFIX KS 300, LxWxH 500x360x881 mm, item no. 14054
Packaging unit
6
