Article No. 97361
sump unit
for NW 300, 2-part, with all-round edge frame made of galvanised steel and silt bucket made of galvanised steel, with ductile iron grating closed, black, class E 600, 0.5 m

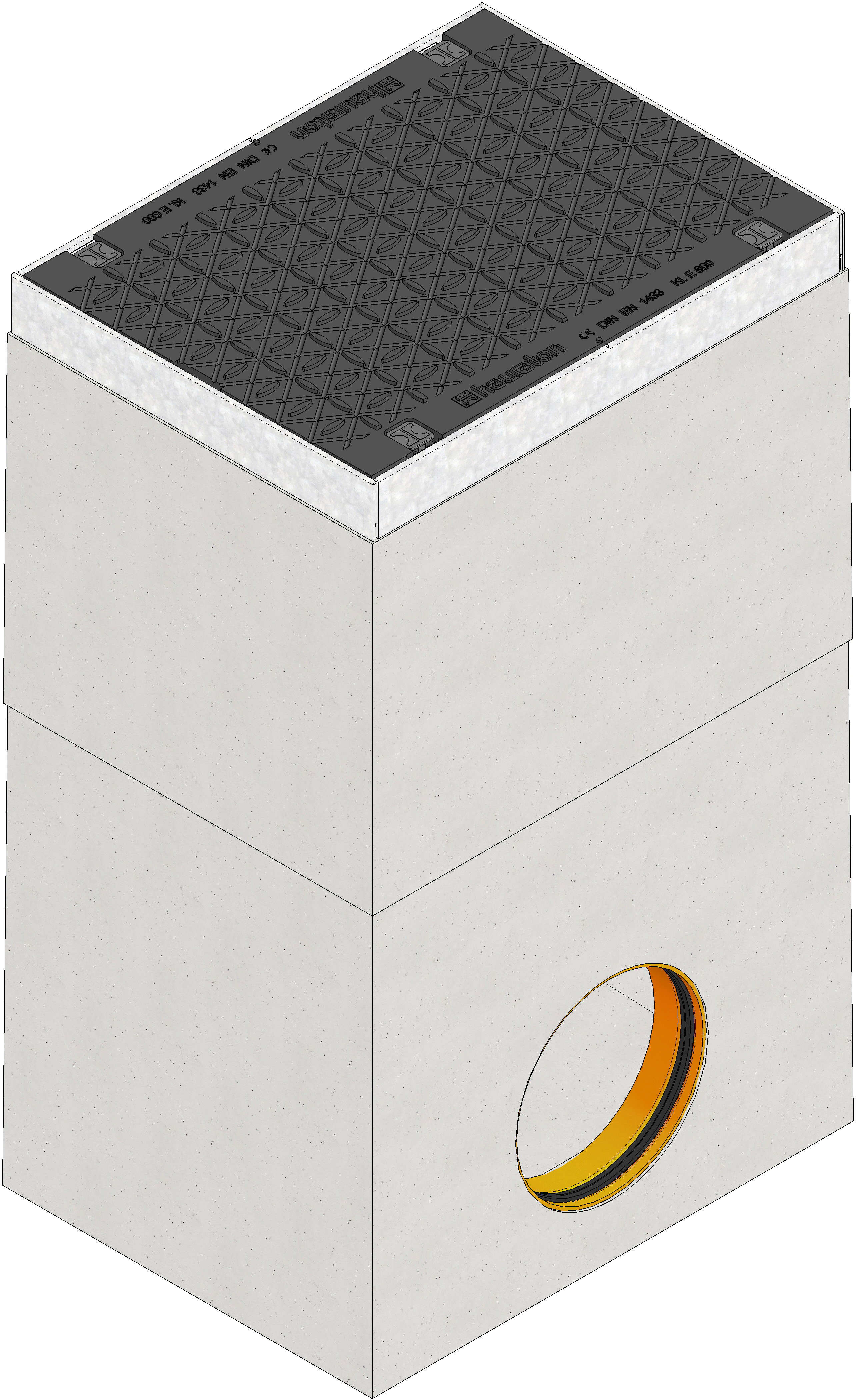

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
97361
Length
510 mm
Width
390 mm
Height
850 mm
Inlay depth
40 mm
Weight
207.00 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete, Steel with zinc-magnesium coating
Intake cross-section
0.0 cm²/m
Nominal size
300
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with all-round edge frame made of galvanised steel, with ductile iron grating closed, black, cl. E 600, with silt bucket made of galvanised steel, DRAINFIX CLEAN FSU 300, 0.51 m
Product description
DRAINFIX CLEAN FSU 200 - Sump unit, 2-part, made of fibre-reinforced concrete, with all-round edge frames made of galvanised steel, load class A 15 - F 900 according to EN 1433, one-sided connection possibility with PVC-U pipe outlet DN/OD 200 (lateral), with removable silt bucket made of galvanised steel, ductile iron grating, closed, made of spheroidal ductile iron EN-GJS-500-7, black, load class A 15 - E 600 according to EN 1433, with longitudinal slide protection, 4-fold locking, suitable for both-sided connection of channel types DRAINFIX CLEAN FSU 300, LxWxH 500x290x900 mm, item no. 97261
