Article No. 11271
sump unit
for NW 200, with silt bucket made of recycled PP, with GUGI-ductile iron mesh grating MS 15/25 mm, black, class D 400, with 4-fold bolting, 0.5 m

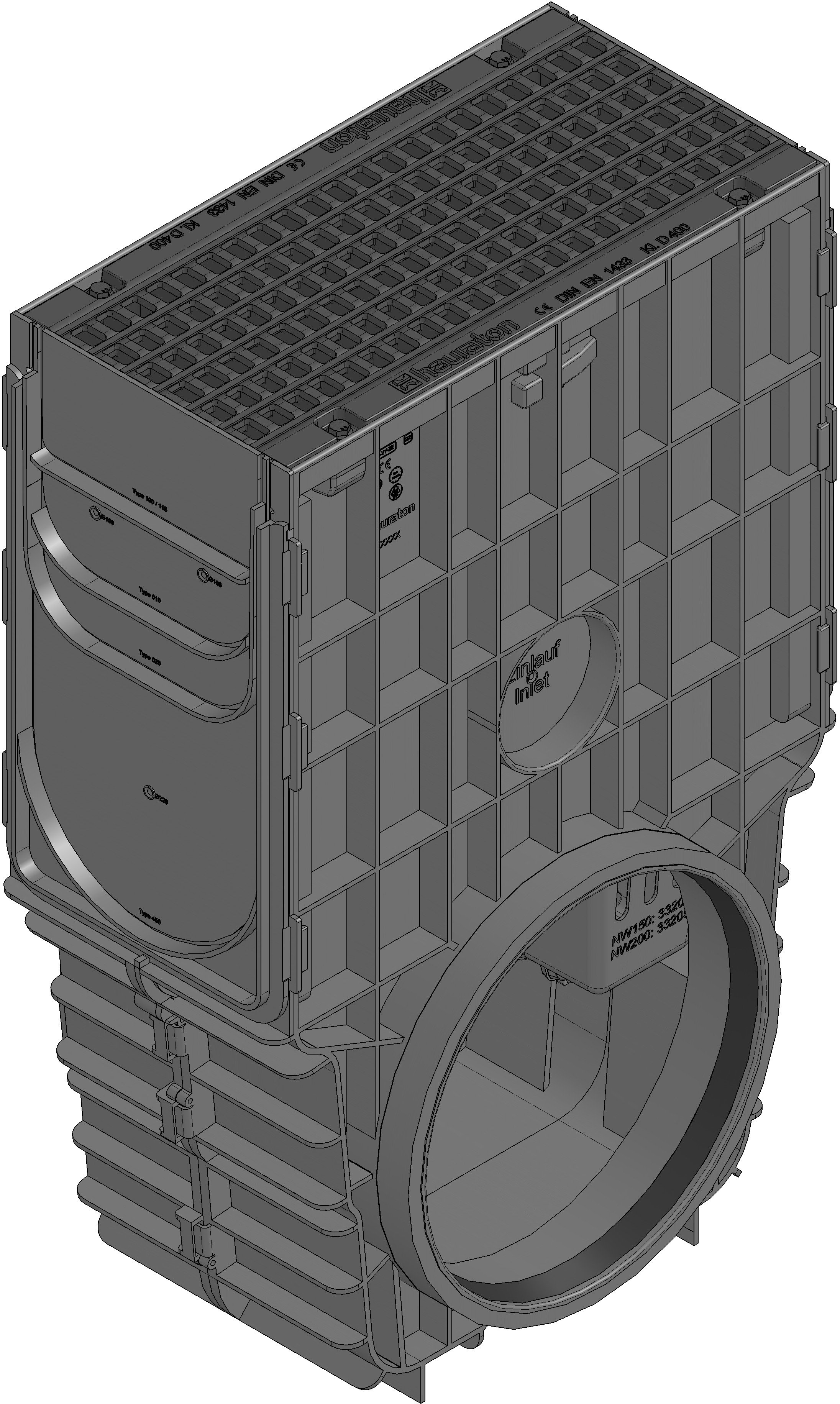

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
11271
Length
500 mm
Width
262 mm
Height
816 mm
Inlay depth
20 mm
Weight
17.12 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised
Intake cross-section
730.0 cm²/m
Nominal size
200
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. D 400, with 4-fold bolting, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX NC 200, 0.5 m
Product description
RECYFIX NC 200 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene suitable for both-sided connection of channel types RECYFIX NC 200, GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS, black, with longitudinal slide protection, with 4-fold bolting, load class A 15 - D 400 according to EN 1433, LxWxH 500x262x816 mm, item no. 11271
Packaging unit
4
