Article No. 40043
sump unit
for NW 200, with silt bucket made of recycled PP, with ductile iron grating SW 180/6 mm, black, class C 250, locked, 0.5 m

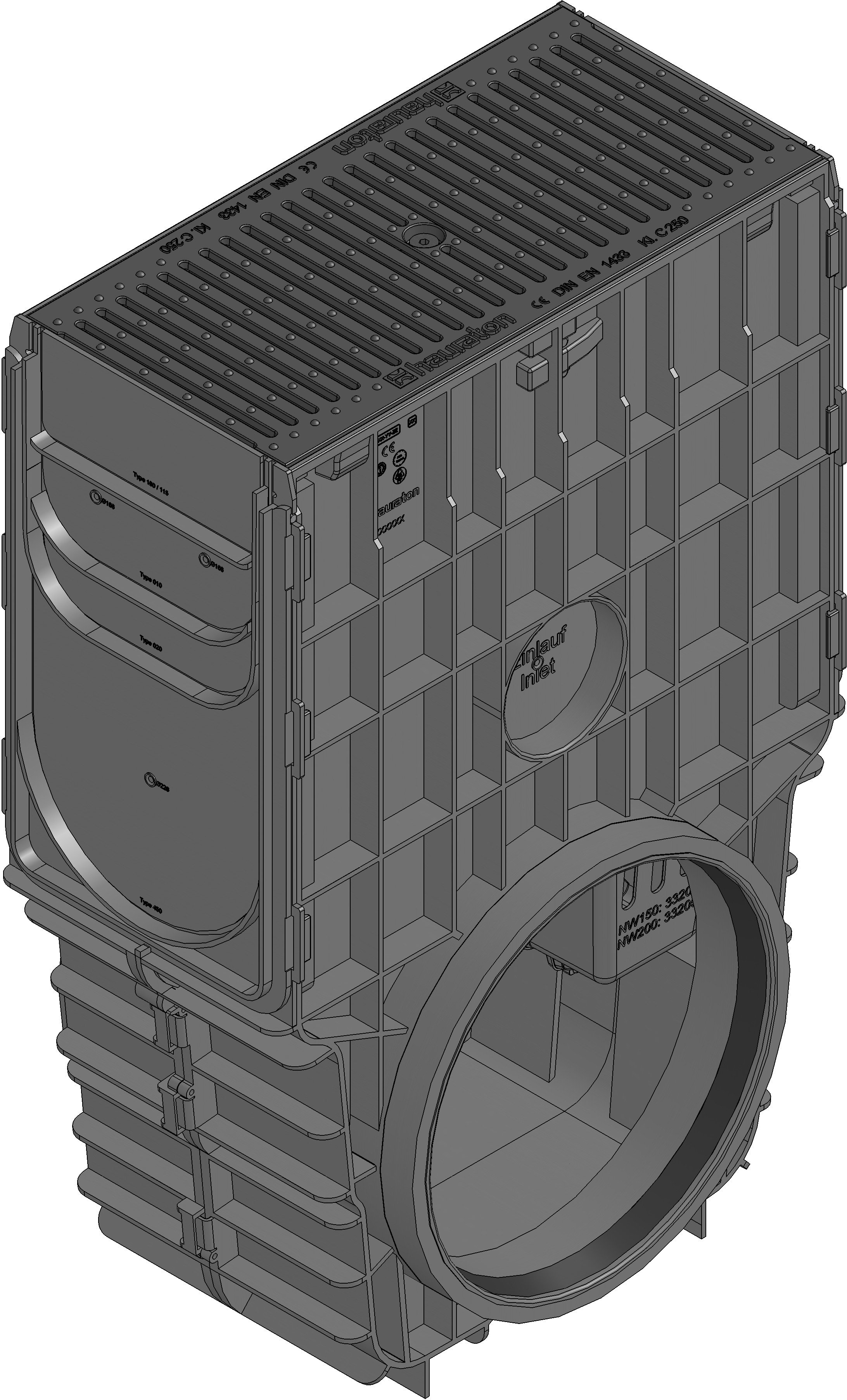

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40043
Length
500 mm
Width
262 mm
Height
800 mm
Inlay depth
6 mm
Weight
15.77 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled polypropylene, Steel black galvanised
Intake cross-section
557.0 cm²/m
Nominal size
200
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with ductile iron grating SW 180/6 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX STANDARD 200, 0.5 m
Product description
RECYFIX STANDARD 200 - Sump unit made of recycled polypropylene, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX STANDARD 200, with ductile iron grating SW 180/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x262x800 mm, item no. 40043
Packaging unit
4
