Article No. 36013
sump unit
for NW 200, with silt bucket made of recycled PP, mwith ductile iron grating SW 198/10 mm in FIBRETEC design, KTL-coated, with 4-fold bolting, 0.5 m

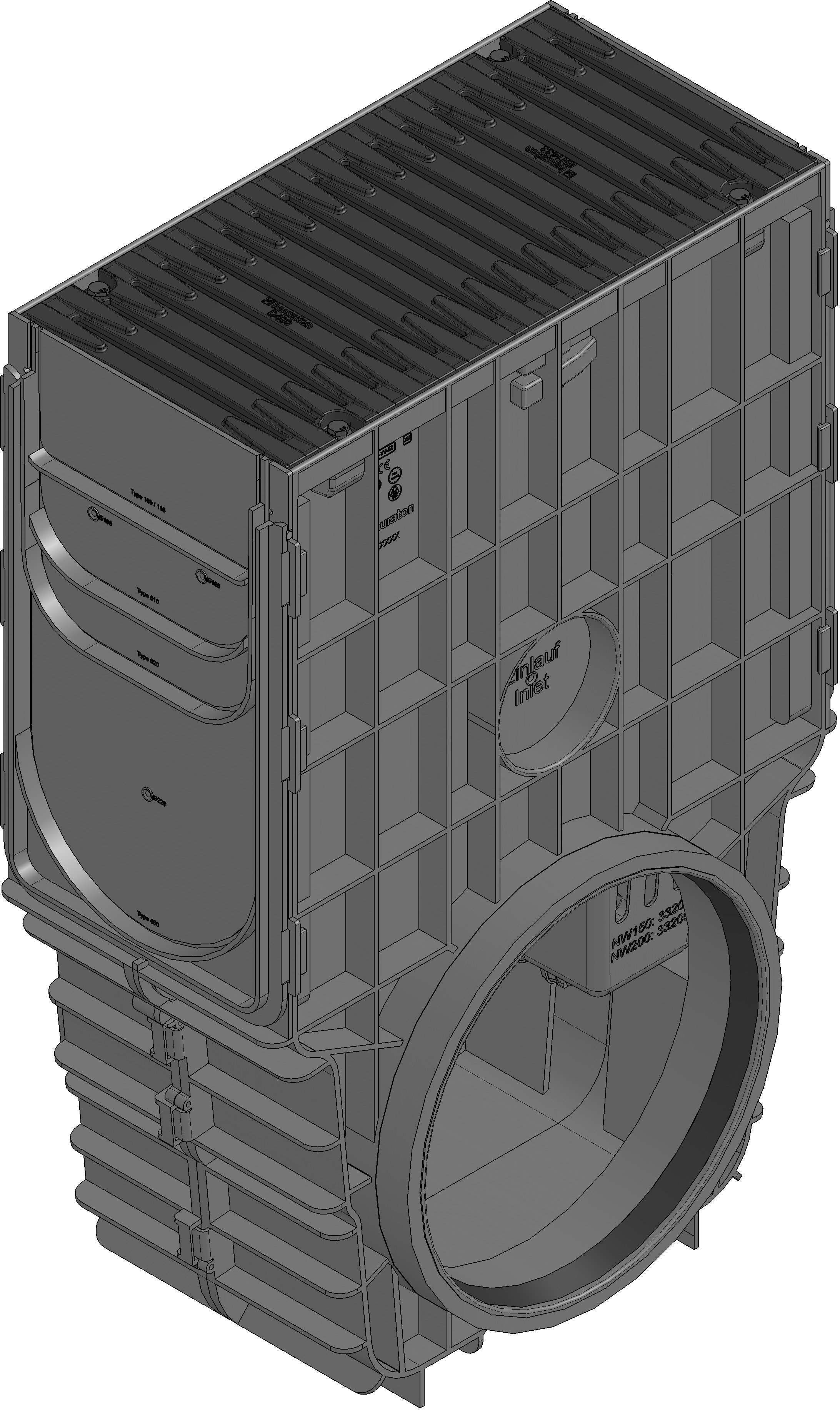

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
36013
Length
500 mm
Width
262 mm
Height
816 mm
Inlay depth
20 mm
Weight
16.90 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled polypropylene, Steel black galvanised
Intake cross-section
572.0 cm²/m
Nominal size
200
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with ductile iron grating SW 198/10 mm in FIBRETEC design, KTL-coated, cl. D 400, with silt bucket made of recycled PP, with 4-fold bolting, RECYFIX MONOTEC 200, 0.5 m
Product description
RECYFIX MONOTEC 200 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX MONOTEC 200, with ductile iron grating SW 198/10 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with 4-fold bolting, load class A 15 - D 400 according to EN 1433, LxWxH 500x262x816 mm, item no. 36013
Packaging unit
4
