Article No. 10730
sump unit
for NW 200, for Type 110 / 150 / 200 and Type 01 - 010, with edge frames made of galvanised steel and silt bucket made of recycled PP, with PVC-U pipe outlet DN/OD 315, 0.5 m

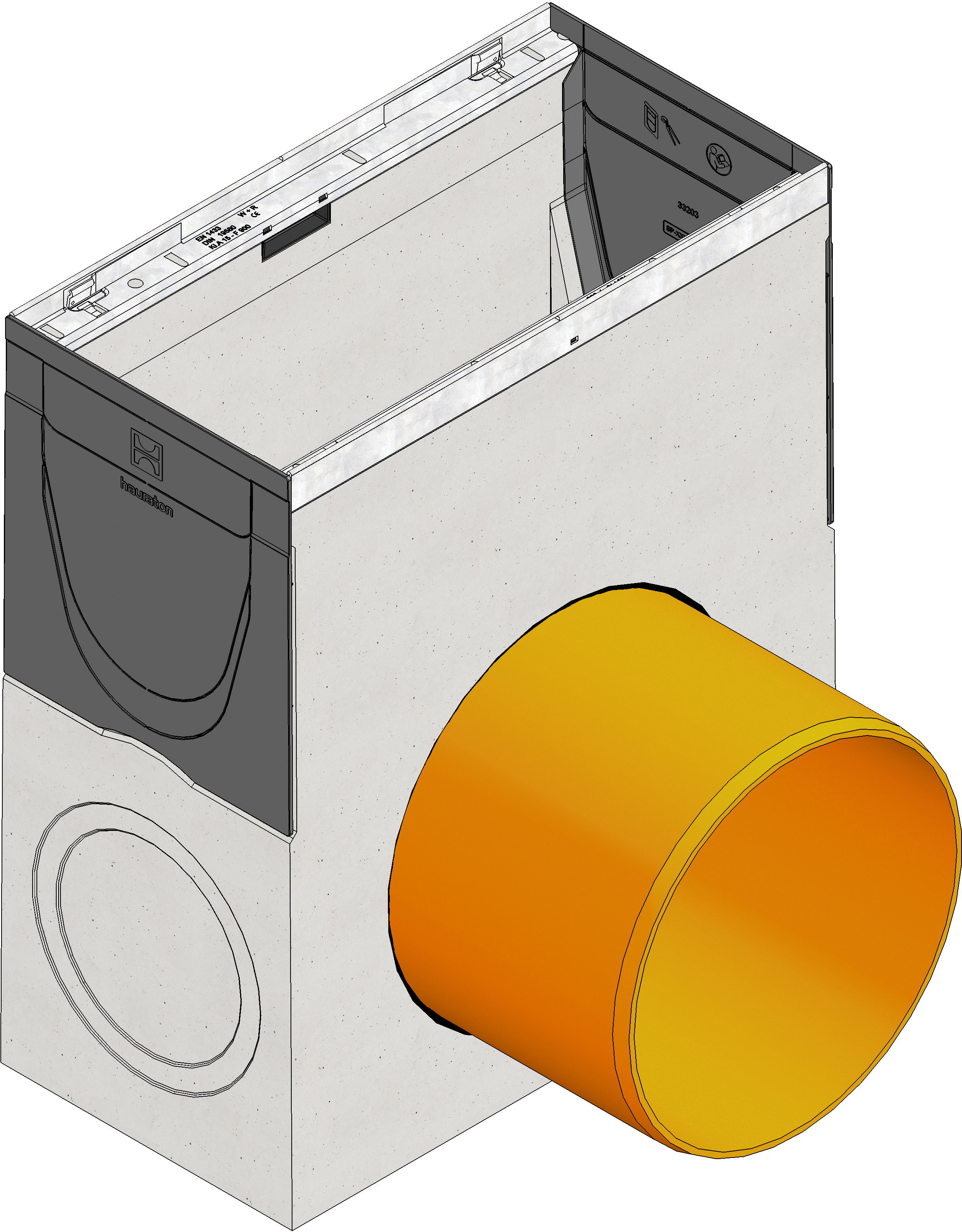

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10730
Length
500 mm
Width
260 mm
Height
603 mm
Weight
70.80 kg
Material
fibre-reinforced concrete, PVC-U, strip galvanized steel
Nominal size
200
Sales text
Sump unit with edge frames made of galvanised steel, lateral with integrated PVC-U pipe outlet DN/OD 315, with silt bucket made of recycled PP and two end caps made of recycled PP, for channels type 110/150/200 as well as for type 01 - 010 FASERFIX KS 200
Product description
FASERFIX KS 200 type 010 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, 4-fold locking, connection possibility DN/OD 160/200 on front and end side and lateral with integrated PVC-U pipe outlet DN/OD 315, with silt bucket made of recycled polypropylene and two end caps made of recycled polypropylene, suitable for both-sided connection of channel types 110/150/200 and 01 - 010, easy to assemble on site, LxWxH 500x260x603 mm, item no. 10730
Packaging unit
4
