Article No. 33222
sump unit
for NW 200, for Type 015 + 020, with edge frames made of galvanised steel and silt bucket made of recycled PP, with PVC-U socket DN/ OD 200, 0.5 m

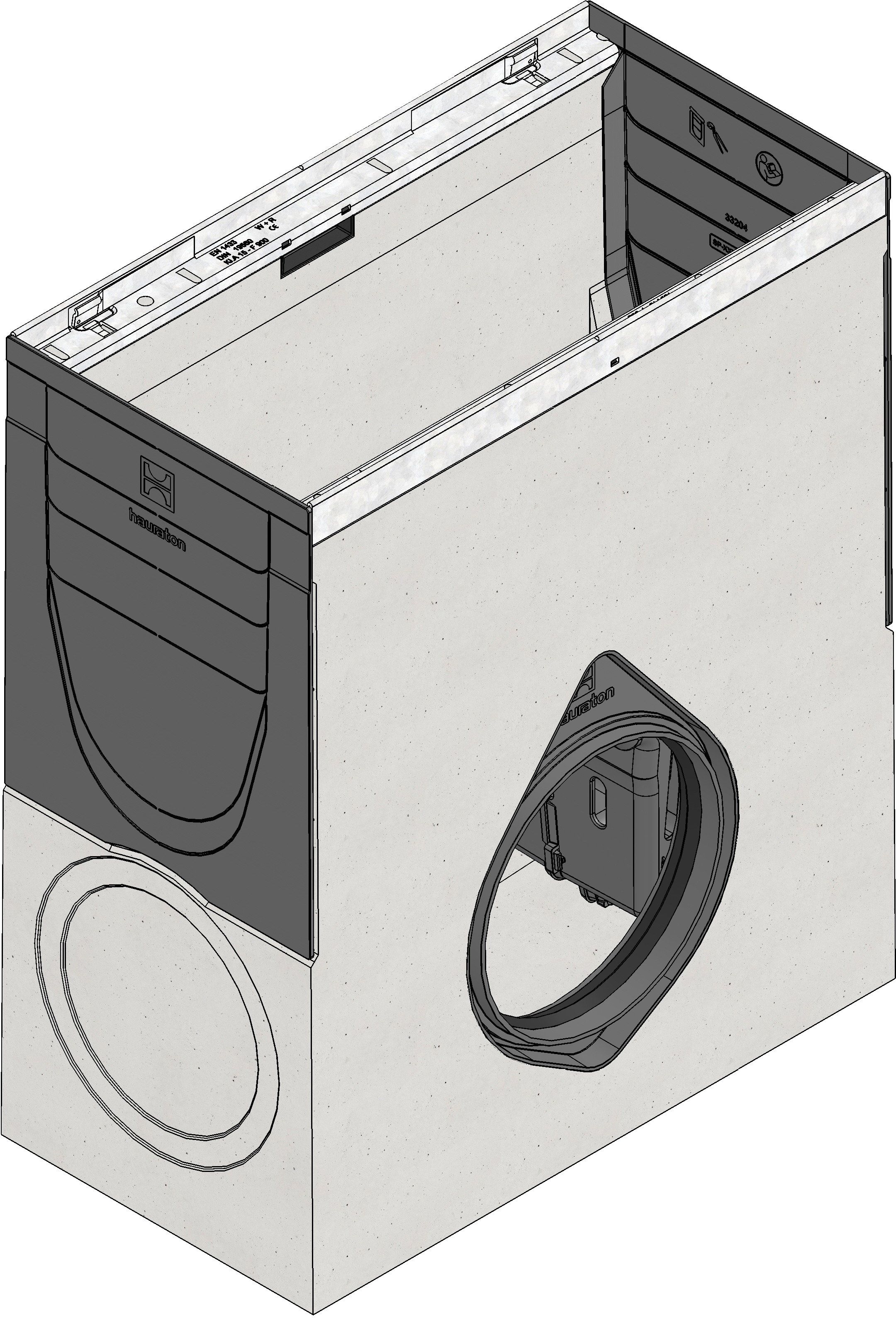

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33222
Length
500 mm
Width
260 mm
Height
603 mm
Weight
67.80 kg
Material
fibre-reinforced concrete, recycled polypropylene, strip galvanized steel
Nominal size
200
Sales text
Sump unit with edge frames made of galvanised steel, lateral with integrated PVC-U socket DN/OD 200, with silt bucket made of recycled PP and 2 end caps made of recycled PP, for channels type 015 + 020, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 type 020 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, for quick and easy installation of the grating, 4-fold locking, on front sides connection possibility DN/OD 160 and DN/OD 200 and on the side with integrated PVC-U pipe connection DN/OD 200, with silt bucket made of recycled polypropylene and 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types 015 + 020, easy to assemble on site, LxWxH 500x260x603 mm, item no. 33222
Packaging unit
6
Volume
0.0 l
