Article No. 10487
sump unit
for NW 200, 2-part, for system size 2200, with edge frames made of galvanised steel, with PVC-U socket DN/OD 200, 0.5 m

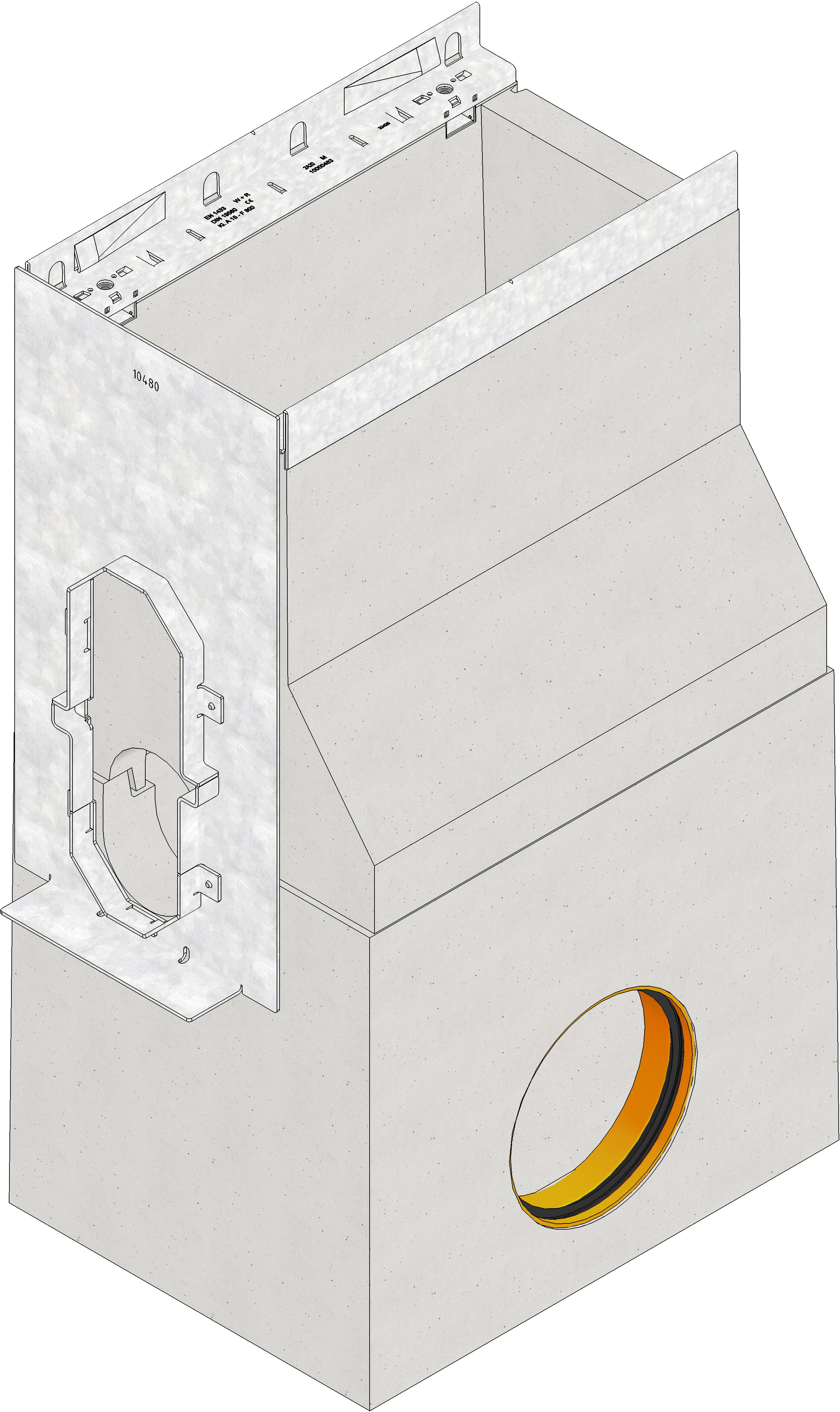

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10487
Length
500 mm
Width
290 mm
Height
900 mm
Weight
201.45 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating, strip galvanized steel
Nominal size
200, 2000
Sales text
Sump unit with edge frames made of galvanised steel, 2-part, with PVC-U socket DN/OD 200, for connection of RECYFIX HICAP 2200, with connecting plate, galvanised, RECYFIX HICAP 2200, 0.5 m
Product description
RECYFIX HICAP 2200 - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel, with boltless quick-locking system SIDE-LOCK, 4-fold locking, one-sided connection possibility (on the side) with integrated PVC-U socket DN/OD 200, with connecting plate, galvanised, for connection of RECYFIX HICAP 2200, LxWxH 500x290x900 mm, item no. 10487
Packaging unit
-
