Article No. 40027
sump unit
for NW 150, with silt bucket made of recycled PP, with mesh grating MS 30/10 mm, cl. B 125, locked, 0.5 m

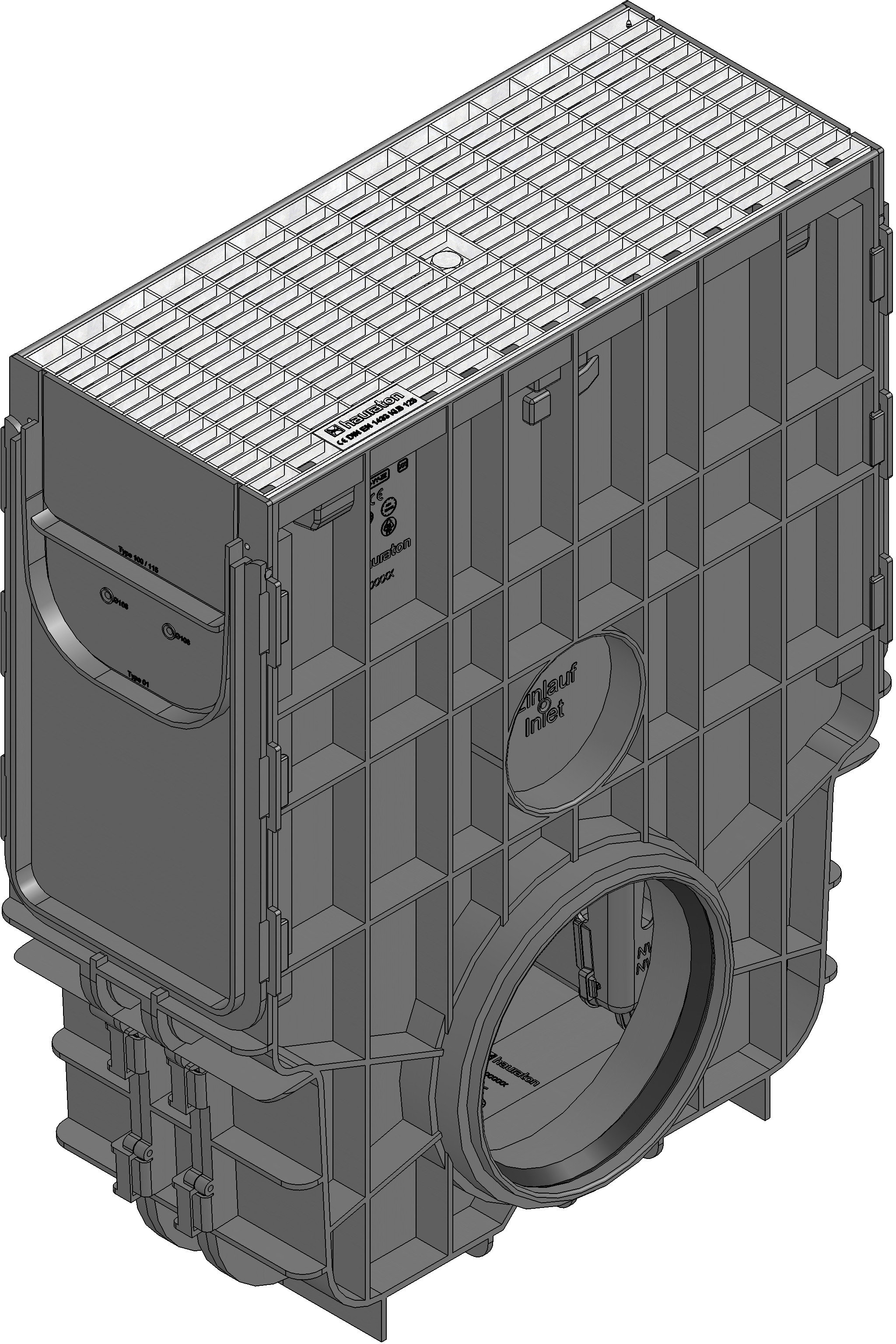

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40027
Length
500 mm
Width
212 mm
Height
643 mm
Inlay depth
20 mm
Weight
9.66 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, reinforced Polyamide
Intake cross-section
1468.0 cm²/m
Nominal size
150
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with mesh grating MS 30/10 mm, galvanised, cl. B 125, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PRO 150, 0.5 m
Product description
RECYFIX PRO 150 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 150, with mesh grating MS 30/10 mm, galvanised, with locking, load class A 15 - B 125 according to EN 1433, item no. 40027
Packaging unit
8
