Article No. 40032
sump unit
for NW 150, with silt bucket made of recycled polypropylene, with longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, class D 400, locked, 0.5 m

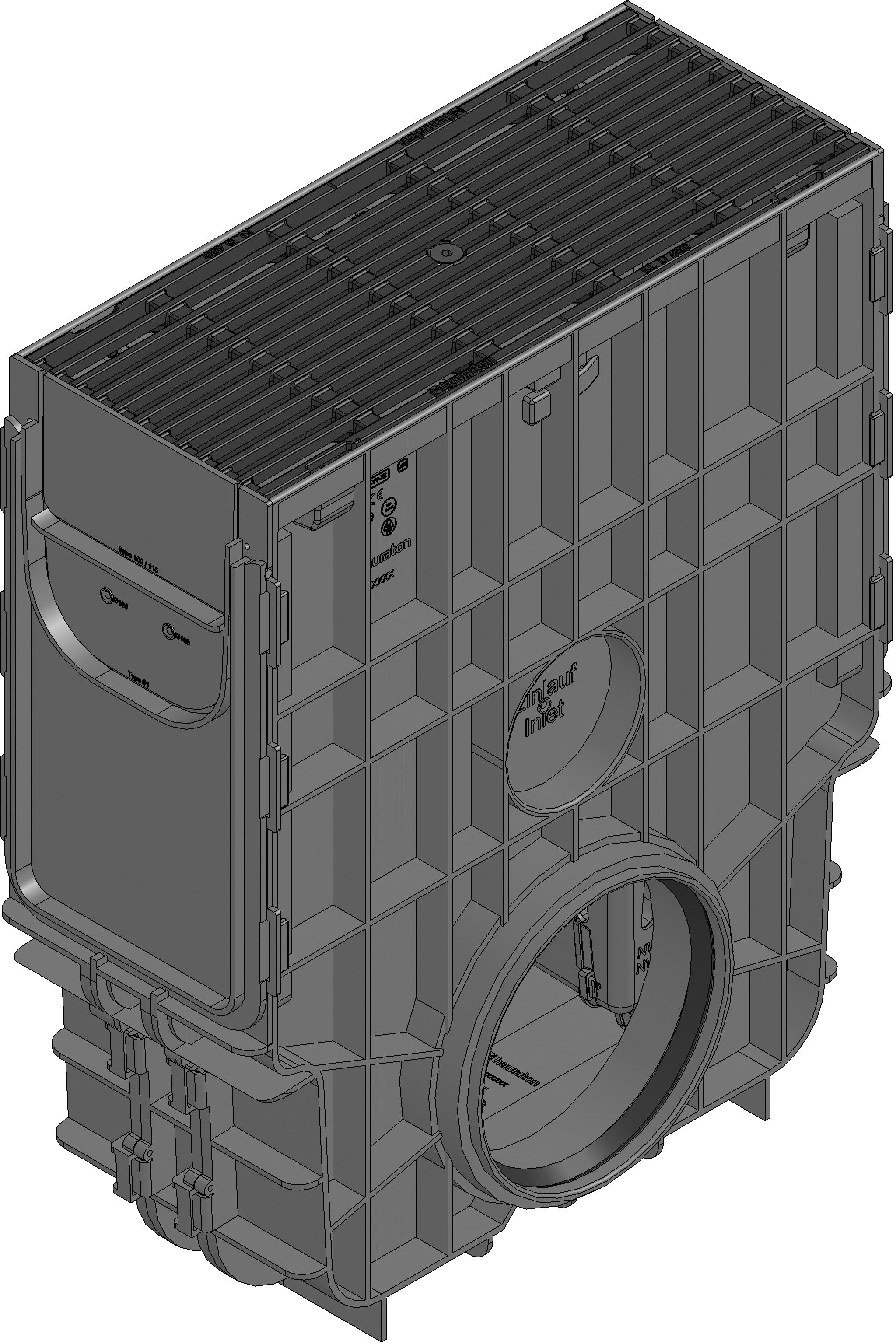

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40032
Length
500 mm
Width
212 mm
Height
643 mm
Inlay depth
20 mm
Weight
12.92 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
740.0 cm²/m
Nominal size
150
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames, with longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, cl. D 400, locked, with silt bucket made of recycled PP, 2 end caps made of recycled PP, RECYFIX PRO 150, 0.5 m
Product description
RECYFIX PRO 150 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 150, with longitudinal ductile iron grating, bar distance 9 mm, made of spheroidal ductile iron EN-GJS, KTL-coated, with longitudinal slide protection and locking, load class A15 - D400 according to EN 1433, LxWxH 500x212x643 mm, item no. 40032
Packaging unit
8
