Article No. 48056
sump unit
for NW 100, with silt bucket made of recycled PP, with slotted grating SW 80/9 mm, stainless steel, trafficable, locked, 0.5 m

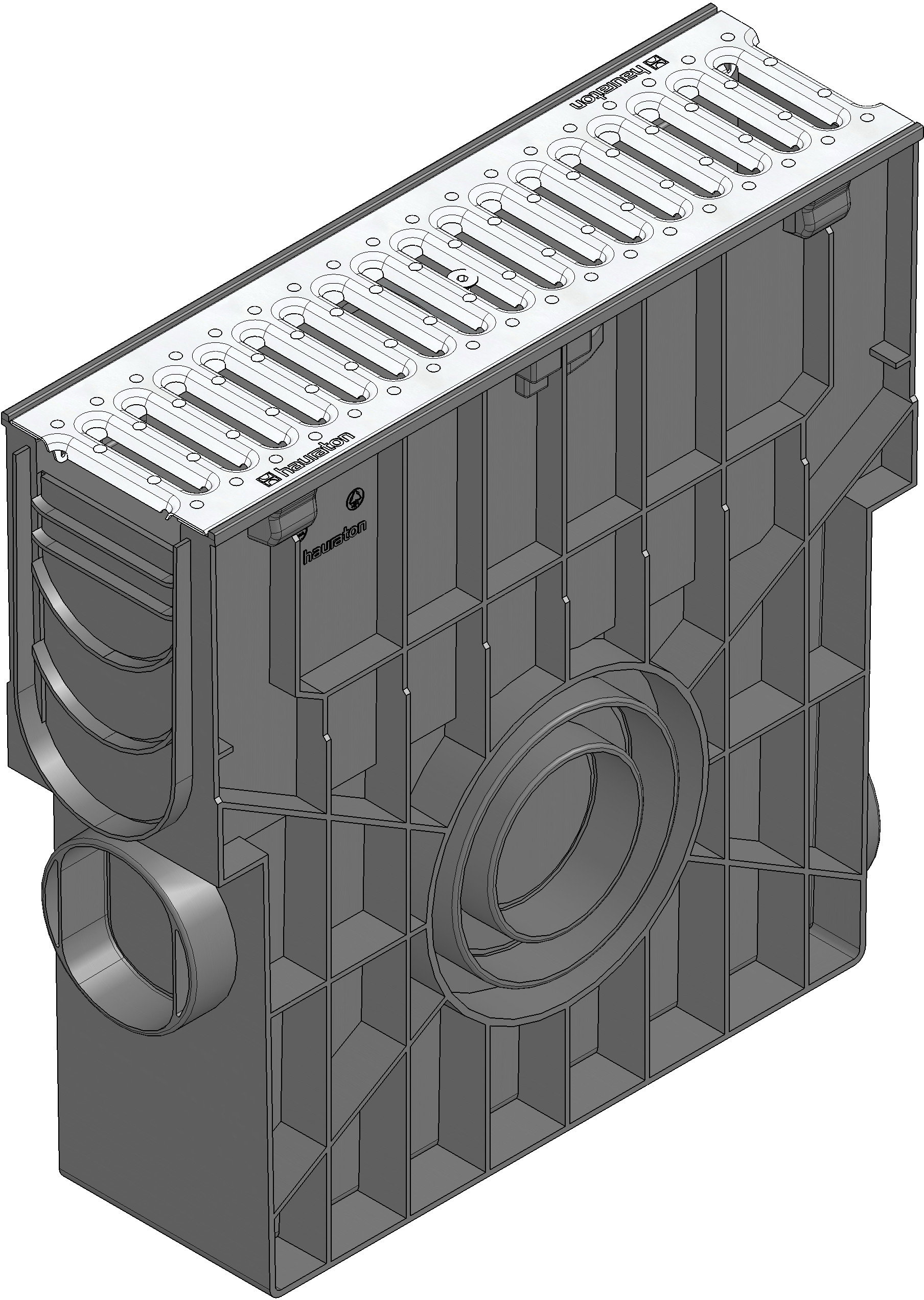

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
48056
Length
500 mm
Width
150 mm
Height
488 mm
Inlay depth
3 mm
Weight
5.40 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
266.0 cm²/m
Nominal size
100
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with slotted grating SW 80/9 mm, stainless steel, trafficable, locked, with silt bucket made of recycled PP, RECYFIX STANDARD 100 , 0.5 m
Product description
RECYFIX STANDARD 100 - Sump unit, made of recycled polypropylene, according to EN 1433, 4-sided connection possibility (on the front side DN/OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of all channel types RECYFIX STANDARD 100, with slotted grating SW 80/9 mm, stainless steel CNS 1.4301, overlying, trafficable, with locking, LxWxH 500x150x488 mm, item no. 48056
Packaging unit
28
