Article No. 33449
sump unit
for NW 100, for type 80/100 and type 01 - 010, with edge frames made of galvanised steel and silt bucket made of recycled PP, with PVC-U socket DN/OD 160, 0.5 m

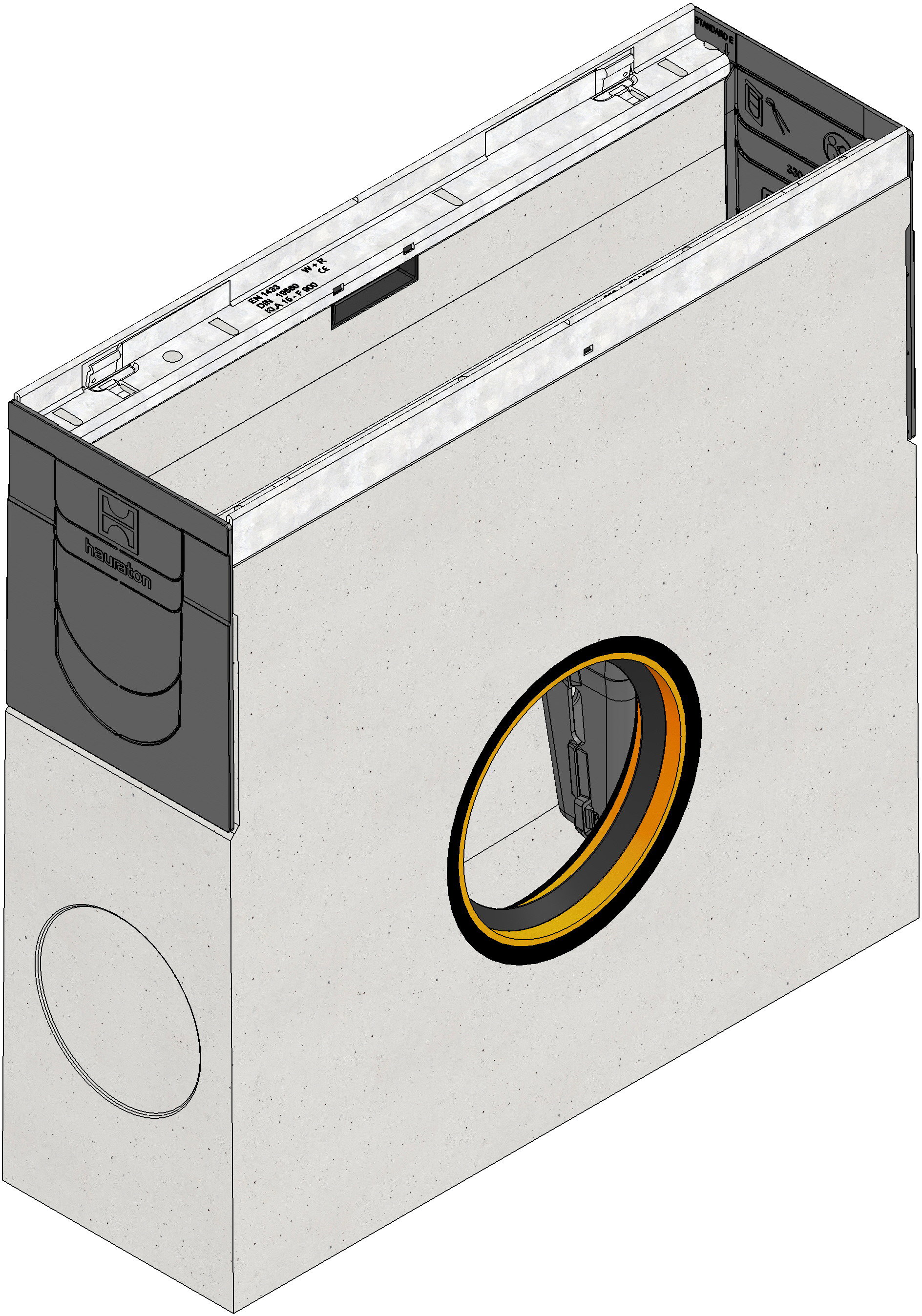

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33449
Length
500 mm
Width
160 mm
Height
503 mm
Weight
52.94 kg
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
100
Sales text
Sump unit with edge frames made of galvanised steel, lateral with integrated PVC-U socket DN/OD 160, with silt bucket made of recycled PP and two end caps made of recycled PP, for channels type 80/100 and type 01 - 010, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 type 010 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, for quick and easy installation of the grating, 4-fold locking, on front sides connection possibility DN/OD 110 and on the side with integrated PVC-U socket DN/OD 160, with silt bucket made of recycled polypropylene and 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types 80/100 and 01 - 010, easy to assemble on site, LxWxH 500x160x503 mm, item no. 33449
Packaging unit
16
