Article No. 12193
sump unit
for NW 150, with edge frames made of galvanised steel and with silt bucket made of recycled PP, with ductile iron grating 2x SW 67/ 10 mm, black, cl. F 900, 4-fold bolting, 0.5 m

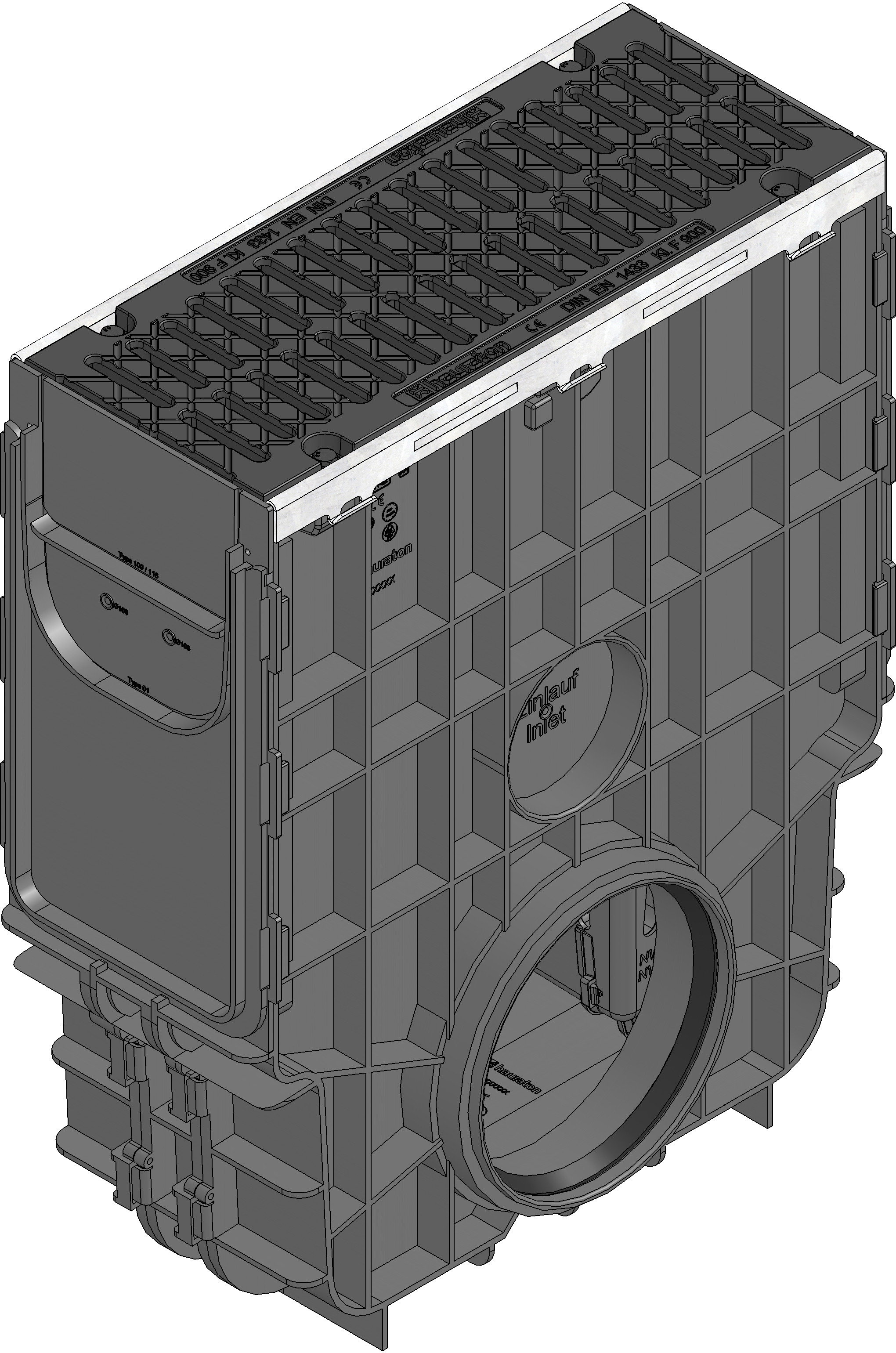

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12193
Length
500 mm
Width
217 mm
Height
645 mm
Inlay depth
21 mm
Weight
17.12 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
449.0 cm²/m
Nominal size
150
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, with ductile iron grating SW 2x 67/10 mm, black, cl. F 900, with 4-fold bolting , with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX NC X 150, 0.5 m
Product description
RECYFIX NC X 150 - Sump unit made of recycled polypropylene, with edge frames made of galvanised steel, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX NC X 150, with ductile iron grating 2x SW 67/10 mm, of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 4-fold bolting, load class A 15 - F 900 according to EN 1433, LxWxH 500x217x645 mm, item no. 12193
Packaging unit
8
