Article No. 10653
sump unit
for NW 100, with silt bucket made of recycled PP, with ductile iron grating SW 80/8 mm, black, cl. B 125, locked, 0.5 m

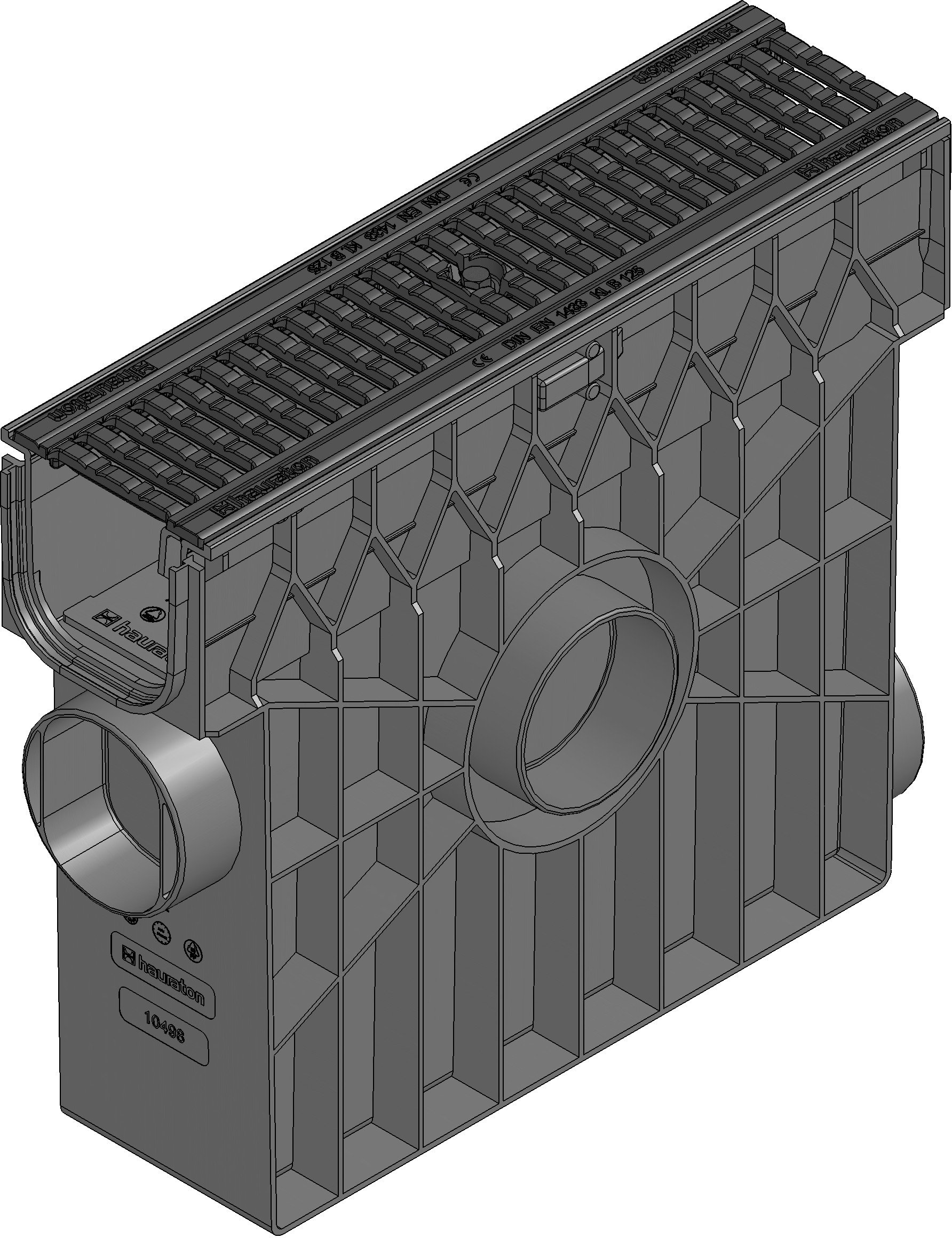

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10653
Length
500 mm
Width
141 mm
Height
424 mm
Inlay depth
6 mm
Weight
5.94 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
320.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with ductile iron grating SW 80/8 mm, black, cl. B 125, locked, with silt bucket made of recycled PP, DRIVETEC ST 100, 0.5 m
Product description
DRIVETEC ST 100 - Sump unit made of recycled polypropylene, 4-sided preformed pipe connection element (on the front sides and on the sides DN/OD 110), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types DRIVETEC ST 100, with ductile iron grating SW 80/8 mm, made of spheroidal ductile iron EN-GJS, black, overlying, with locking, load class A 15 according to EN 1433, LxWxH 500x141x424 mm, item no. 10653
Packaging unit
28
