Article No. 7535
SPORTFIX STANDARD 100, accessories
for NW 100, with silt bucket made of recycled PP, with slotted grating SW 75/9 mm, galvanised, trafficable, locked, 0.5 m

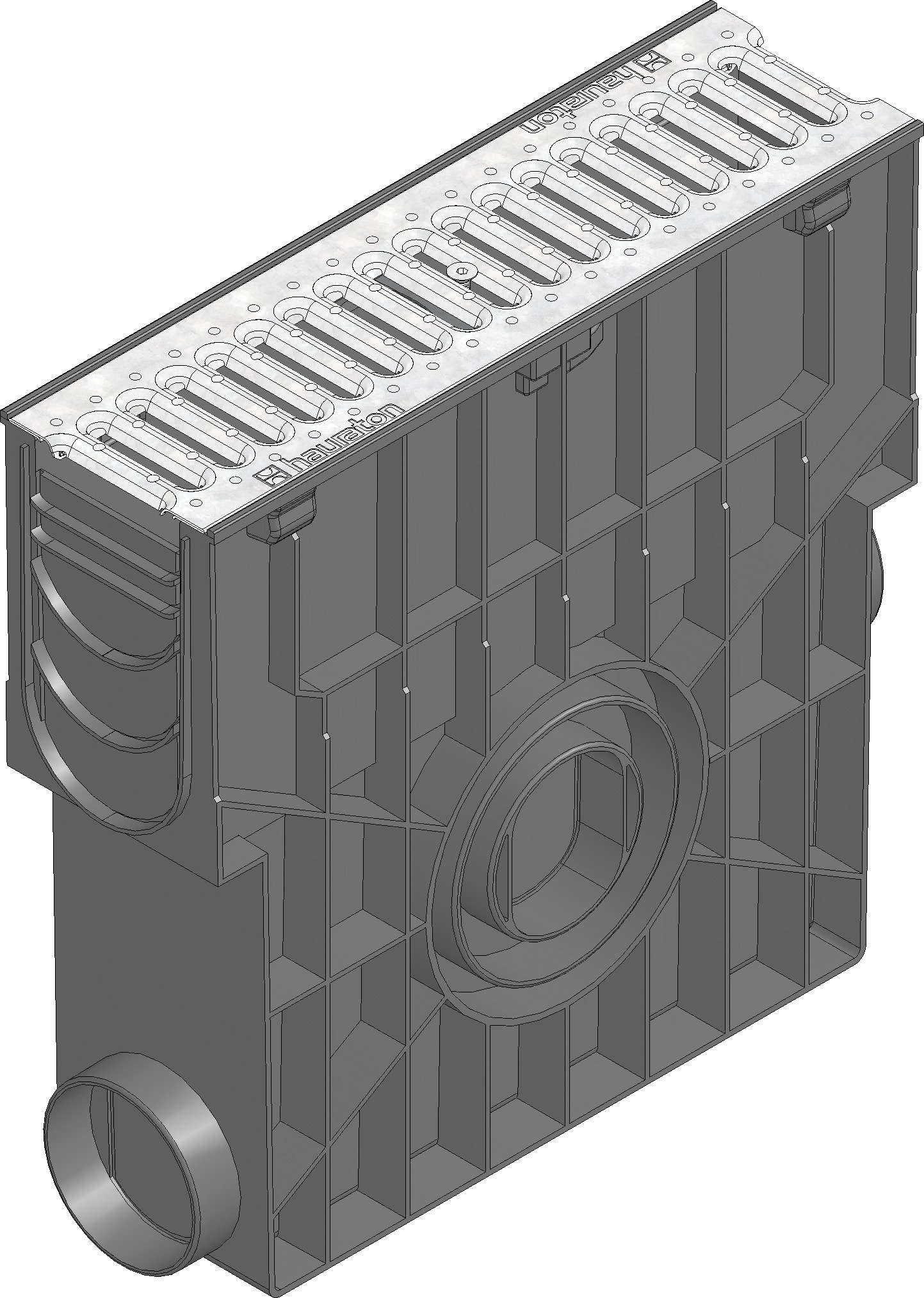

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
7535
Length
500 mm
Width
150 mm
Height
488 mm
Inlay depth
3 mm
Weight
5.20 kg
Material
Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
266.0 cm²/m
Nominal size
100
Material grating
strip galvanized steel
Regulations
EN 1433, EN 1433 + IAKS, DIN 19580
Sales text
Sump unit with slotted grating SW 75/9 mm, galvanised, trafficable, locked, with silt bucket made of recycled PP, SPORTFIX STANDARD 100, 0.5 m
Product description
SPORTFIX STANDARD 100 - Sump unit, made of recycled polypropylene, according to DIN 19580/EN 1433, 4-sided preformed pipe connection element (on the front side DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled popypropylene, suitable for both-sided connection of channel types SPORTFIX STANDARD 100, with slotted grating SW 75/9 mm, made of galvanised steel , trafficable, overlying, with locking, LxWxH 500x150x488 mm, item no. 7535
Packaging unit
28
